Manitowoc GROVE RT890E Operator's Manual page 127

RT890E
CAUTION
The following lube intervals are to be used as a guideline
only. Actual lube intervals should be formulated by the
operator to correspond accordingly to conditions such as
continuous duty cycles and/or hazardous environments.
1. Steering Cylinder Pivot Pins
Lube Type - EP-MPG
Lube Interval - 500 hours or 3 months
Lube Amount - Until grease extrudes
Application - 8 grease fittings
2. Upper and Lower King Pins
Lube Type - EP-MPG
Lube Interval - 500 hours or 3 months
Lube Amount - Until grease extrudes
Application - 8 grease fittings
3. Fifth Wheel Pivots
Lube Type - EP-MPG
Lube Interval - 500 hours or 3 months
Lube Amount - Until grease extrudes
Application - 2 grease fittings
4. Lockout Cylinder Pivot Pins
Lube Type - EP-MPG
Lube Interval - 500 hours or 3 months
Lube Amount - Until grease extrudes
Application - 4 fittings
5. Tie Rod Pivot Pins
Lube Type - EP-MPG
Lube Interval - 500 hours or 3 months
Lube Amount - Until grease extrudes
Application - 4 fittings
6. Differentials
Lube Type - SSGL-5
Lube Interval - Check lubricant level every 500 hours or
3 months and refill as necessary. Drain and refill every
4000 hours or 2 years
CAUTION
Use of non-extended service interval lubricant may
damage components and/or invalidate published lubricant
intervals.
CAUTION
If the makeup amount is substantially more than 0.5 pint
(0.23 liter), check for leaks.
NOTE: Any lubricant used in the field for either top-off or
refill of the axles must be an "Extended Drain
Lubricant" as approved by ArvinMeritor. These
lubricants are listed in ArvinMeritor Technical
B u l l e t i n T P - 9 5 3 9
www.arvinmeritor.com or by contacting Manitowoc
CraneCARE.
Lube Amount - Capacity - 24.6 liters (51.9 pints) Normal
makeup - less than 0.23 liter (0.5 pint)
Application - Fill to bottom of hole in the housing on the
steer cylinder side.
NOTE: Lube level close enough to the hole to be seen or
touched is not sufficient. It must be level with the
hole.
When checking lube level, also check and clean
housing breathers.

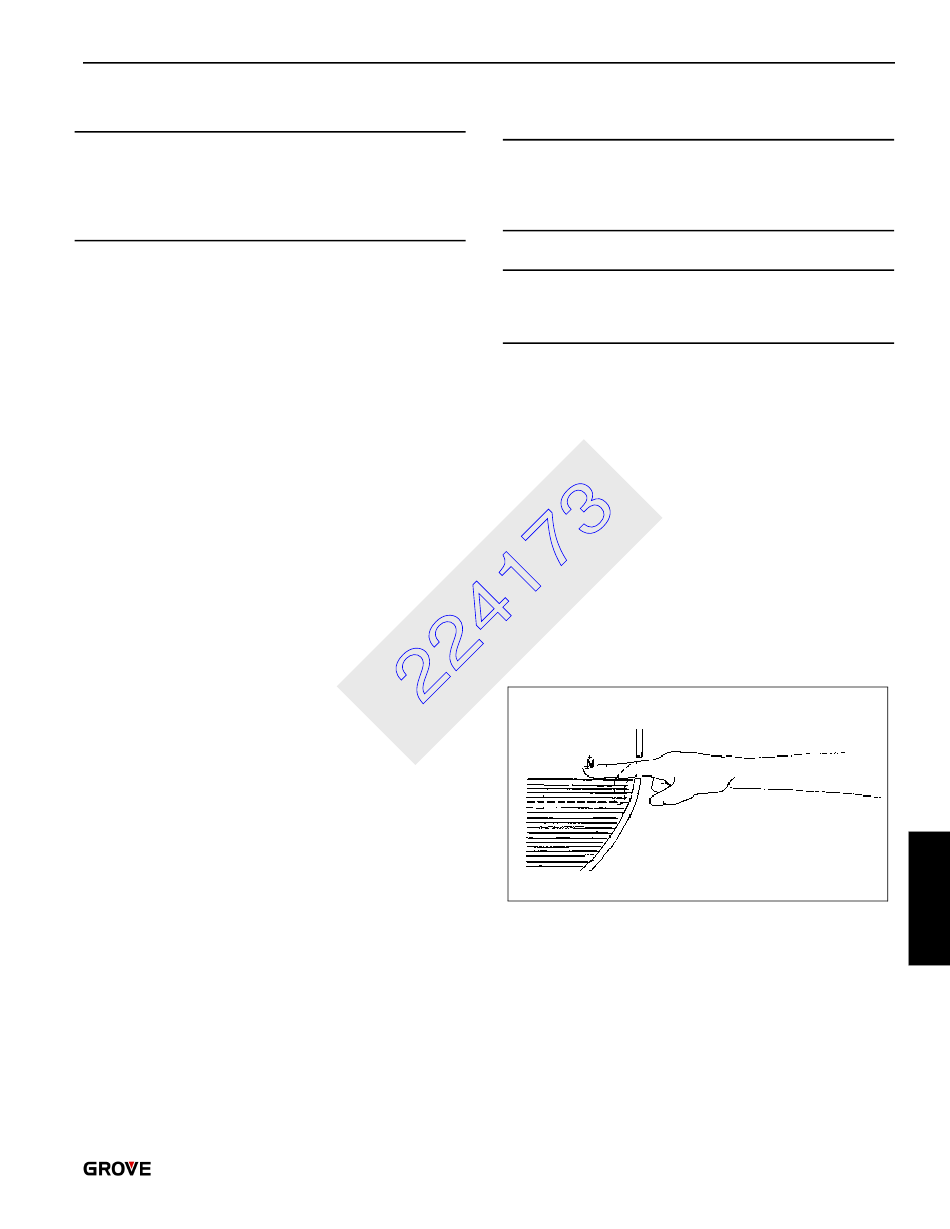

___ Correct: Lube level at bottom of filler
- - - Incorrect: Lube level below filler hole.
NOTE: The illustration and instructions pertain to the
Differentials and the Planetary Hubs and Wheel
Bearings.
