If the media is jammed

If the media cannot be fed and stops midway due to some reason, follow the procedure below to eject the media.

When media feed stops in ASF1-30

1.
Turn off the power to the CE8000-40.
2.
Lower the media set lever of the CE8000-40.
3.
Turn the media feed handle in the direction of the arrow to eject the media.
4.
If the ejected media is torn, check that all of the media has been ejected.
If any pieces of media remain inside, it may cause feeding problems or jams.

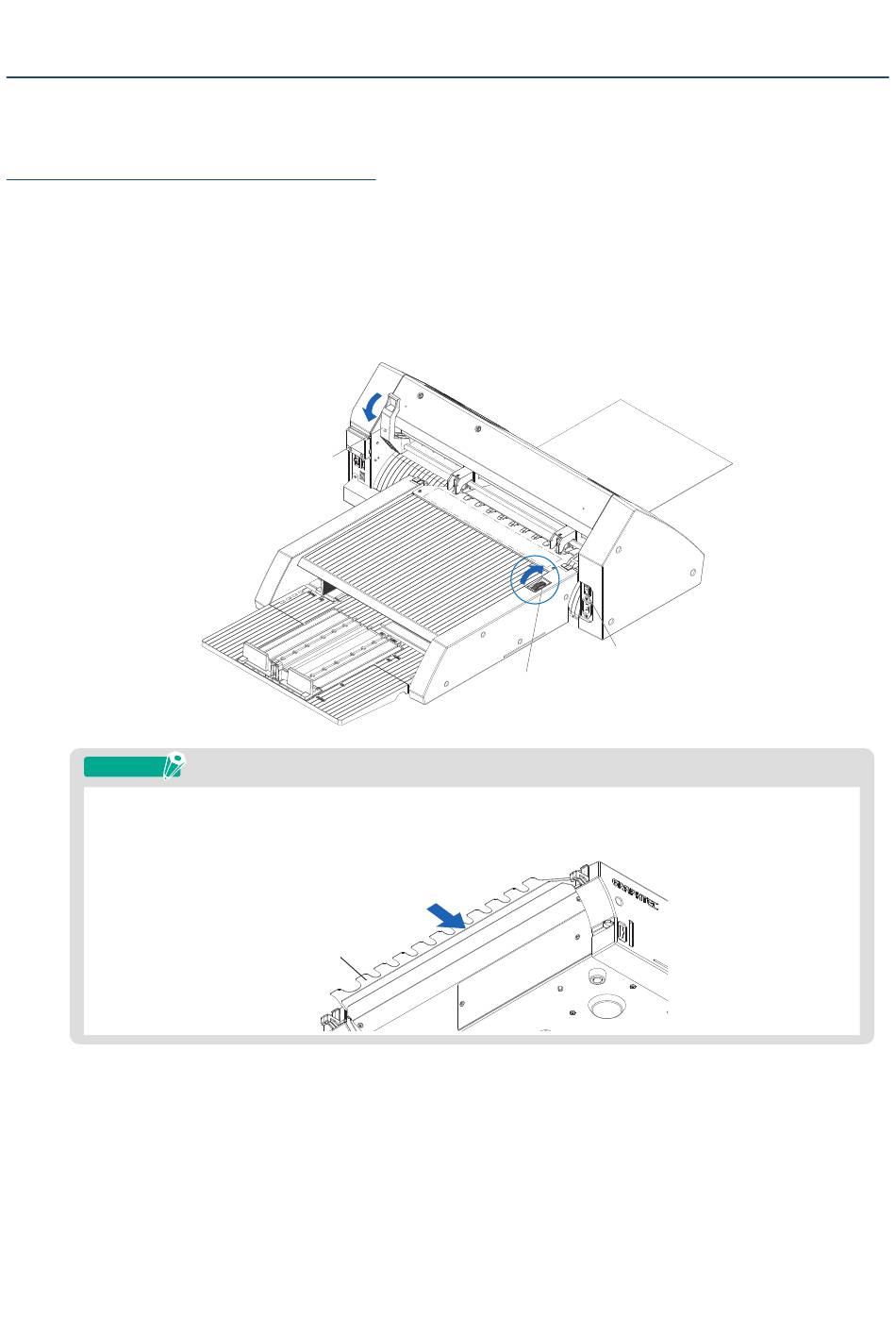

2. Lower the media set lever.
Supplement
If pieces of media remain inside the ASF1-30, remove it from the CE8000-40 and use tweezers or similar to
remove the media from the gap below the media separator.
When removing the media, be careful not to deform the media separator.
Media separator
4-2
1. Turn off the power.
3. Turn the media feed handle.
