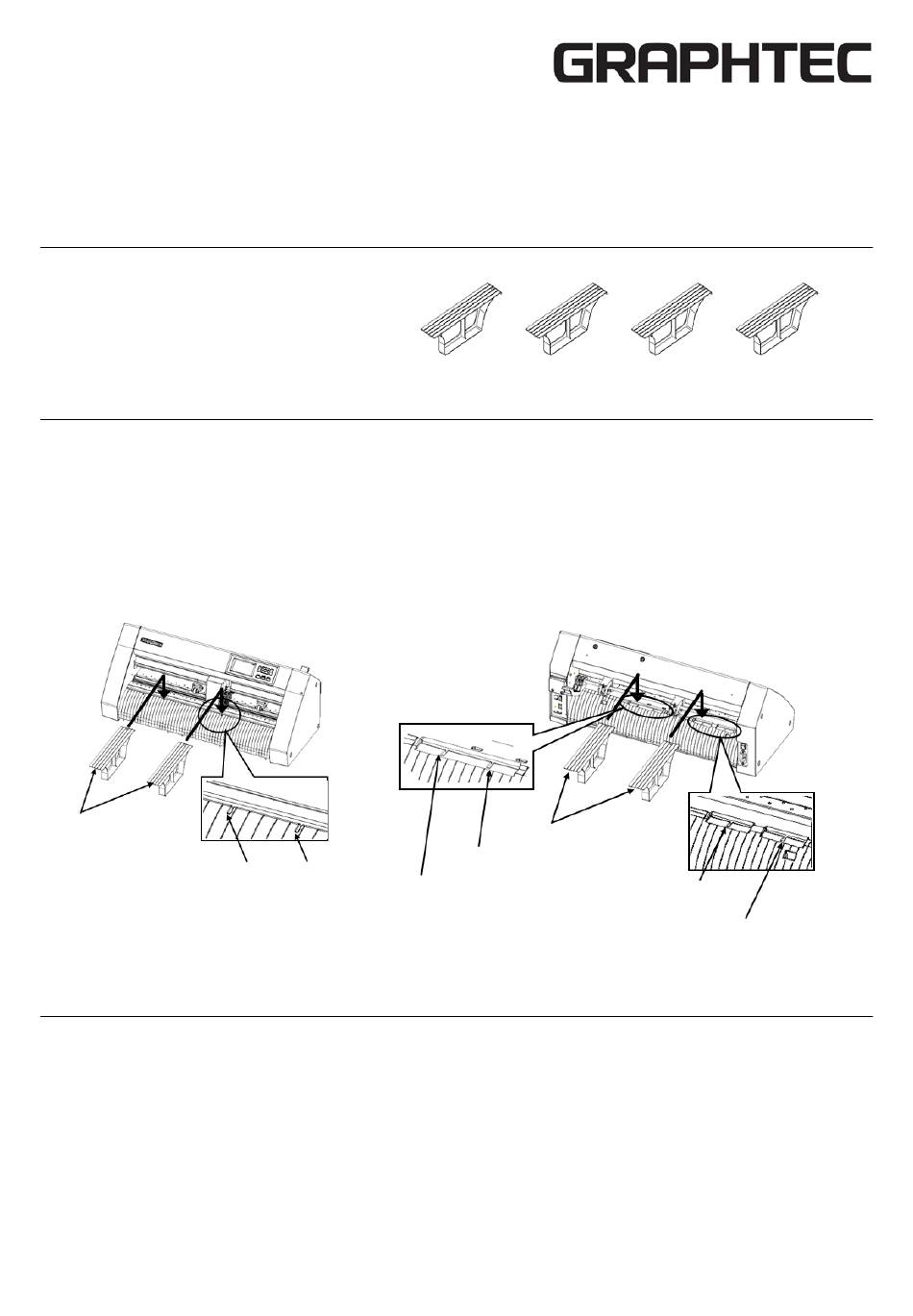

GRAPHTEC OPH-A45 Installation Manual

OPH-A45 Installation manual
(Carrier Sheet support table for the CE8000-40/60)
This option is used to be stabilized feed for the carrier sheet.
When the carrier sheet is used, please install this option to the CE8000-40/60.
Contents of kit
Carrier sheet support table
Installation manual (This sheet)
How to install this option
Mount the carrier sheet table to the front and back of the cutting plotter.
Insert the projection under the carrier sheet table into the dent part.
For CE8000-40, insert the front side into the first and third grooves from the right. Align the back side in the
same position as the front side.
For CE8000-60, insert the front side into the second and fourth grooves from the right. Align the back side
in the same position as the front side.
Front
Carrier sheet
support table
Notch for
CE8000-60
How to set the carrier sheet
Please refer to the user's manual (PDF).
The manual (PDF) is available at:
http://www.graphteccorp.com/support/index.html
4 pieces
1 sheet
Rear
Notch for
Notch for CE8000-60
Notch for
CE8000-40
CE8000-40
Model : CE8000-40/60
Carrier sheet
support table
Notch for
CE8000-40
621809221 CE7 Table OPH-A45
Notch for
CE8000-60
