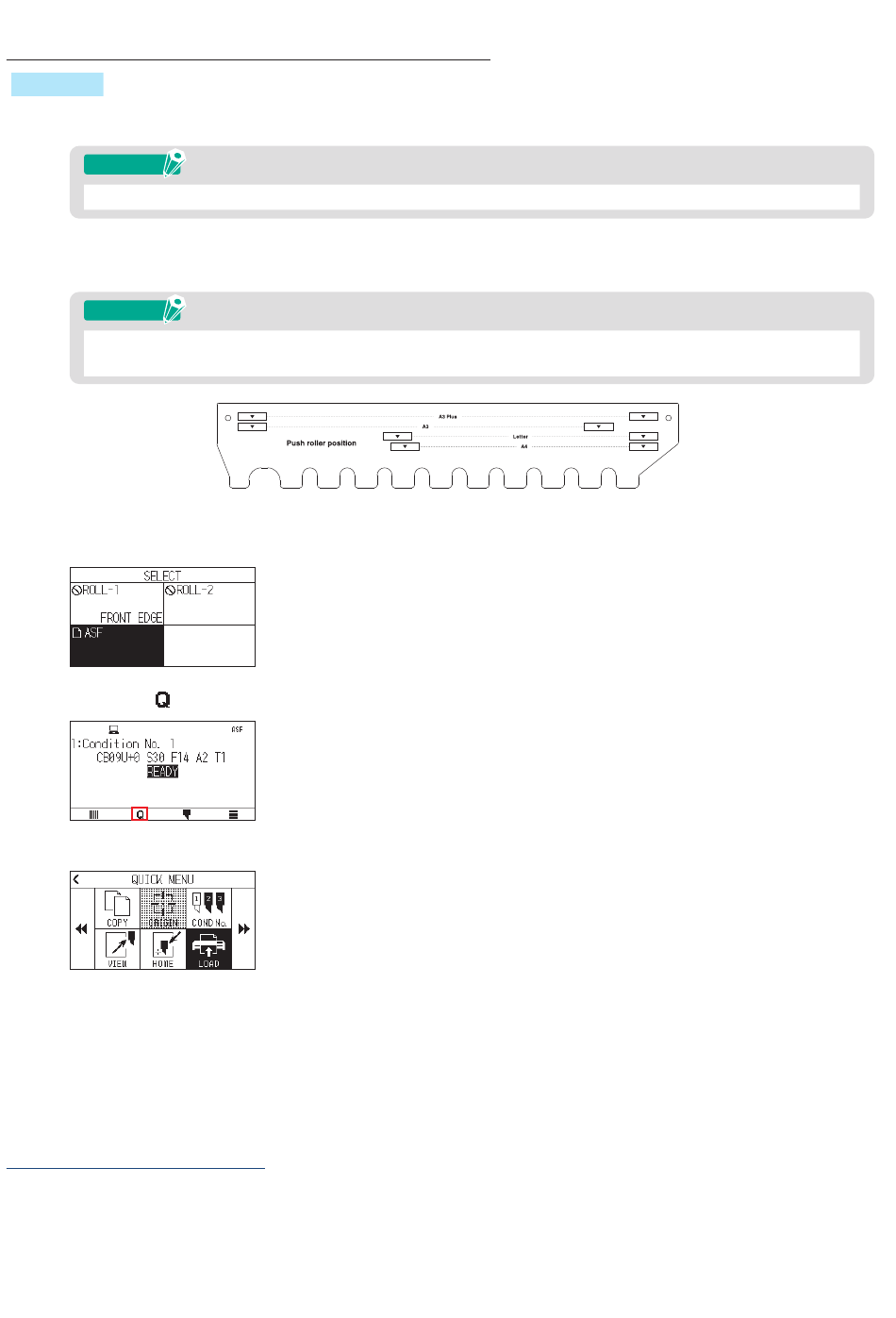

Detailed position adjustment of CE8000-40 push roller
Operation
1.
Load the media in the ASF.
Supplement
For details, refer to "2.2 Loading the Media".
2.
Lower the media set lever of the CE8000-40 and adjust the position of the push rollers of the CE8000-40 to
match the push roller position indication of the ASF1-30.
Supplement
For how to operate the media set lever and adjust the position of the push rollers of the CE8000-40, refer to
the CE8000 Series User's Manual.
3.
Raise the media set lever of the CE8000-40 and select ASF on the [SELECT] screen.
4.
Press the [ ].
5.
Press the [LOAD].
6.
Press the left POSITION key to move the tool carriage to a position where you can see the push rollers.
7.
Check the position of the push rollers.
If you want to adjust the position of the push rollers, lower the media set lever and then adjust them.
8.
After adjustments are complete, remove the media.

ORIGIN in QUICK MENU

When ASF1-30 is connected, the [ORIGN] icon is disabled.
Push roller position indication
3-4
