Basic workflow for cutting with registration marks

Operation
1.
Refer to "Operation with Barcode and Data Link Server Feature" – "Basic Workflow for Registration Marks" in
the Cutting Master 5/Graphtec Studio 2 User's Manual and proceed up to "STEP 3".
2.
Follow the steps below to operate "STEP 4".

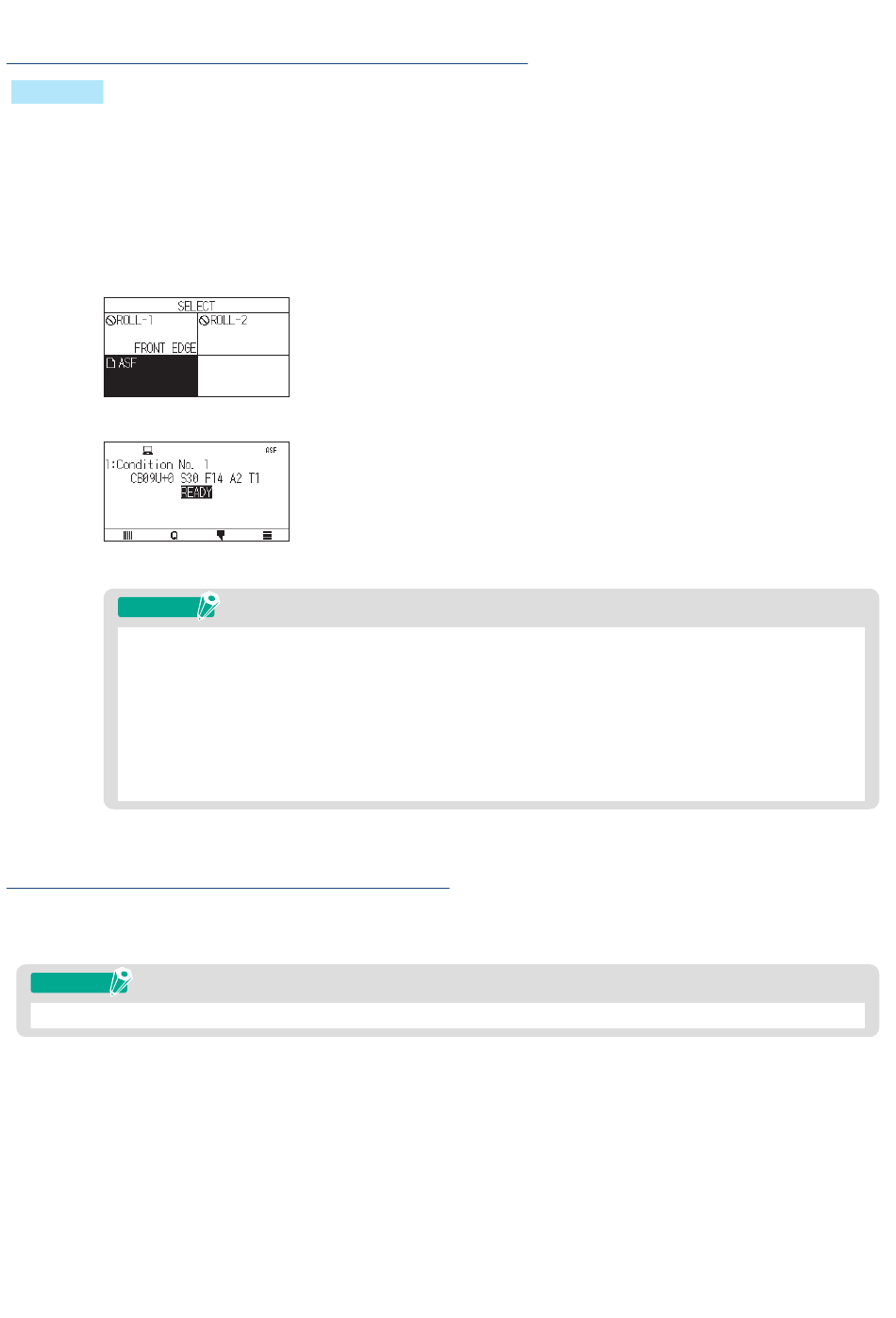

(1) Load the printed media in the ASF1-30.
(2) Raise the media set lever.
(3) Press the [ASF] icon.
(4) The [READY] screen appears.
(5) Perform the operations from "3" onwards in "STEP 4".
Supplement
When you want to cut the same data repeatedly, specify the number of cuts.
When you want to specify the number of cuts from the software, set it in [Repeat Job] on the [General]
tab.
When you want to specify the number of cuts from the CE8000-40, set it in the COPY function.
For the COPY function of the CE8000-40, refer to the CE8000 Series User's Manual (4.2 Copy (Duplicate
Cutting) – When media change mode is ON).
When using the COPY function of the CE8000-40, set the number of cuts in Cutting Master 5/Graphtec
Studio 2 to [1].

Basic workflow for cutting with barcodes

The [Standard] barcode cannot be used.
Select the [Continuous Operation] barcode and set the [Barcode Location] to the [Front Edge Only] to use it.
Supplement
The [Roll Media] barcode has been renamed to [Continuous Operation] barcode.
3-9
