1.3

Assembling

How to assemble the Paper output tray

Tools to be provided by the customer
• Phillips head screwdriver (No. 2)
1.

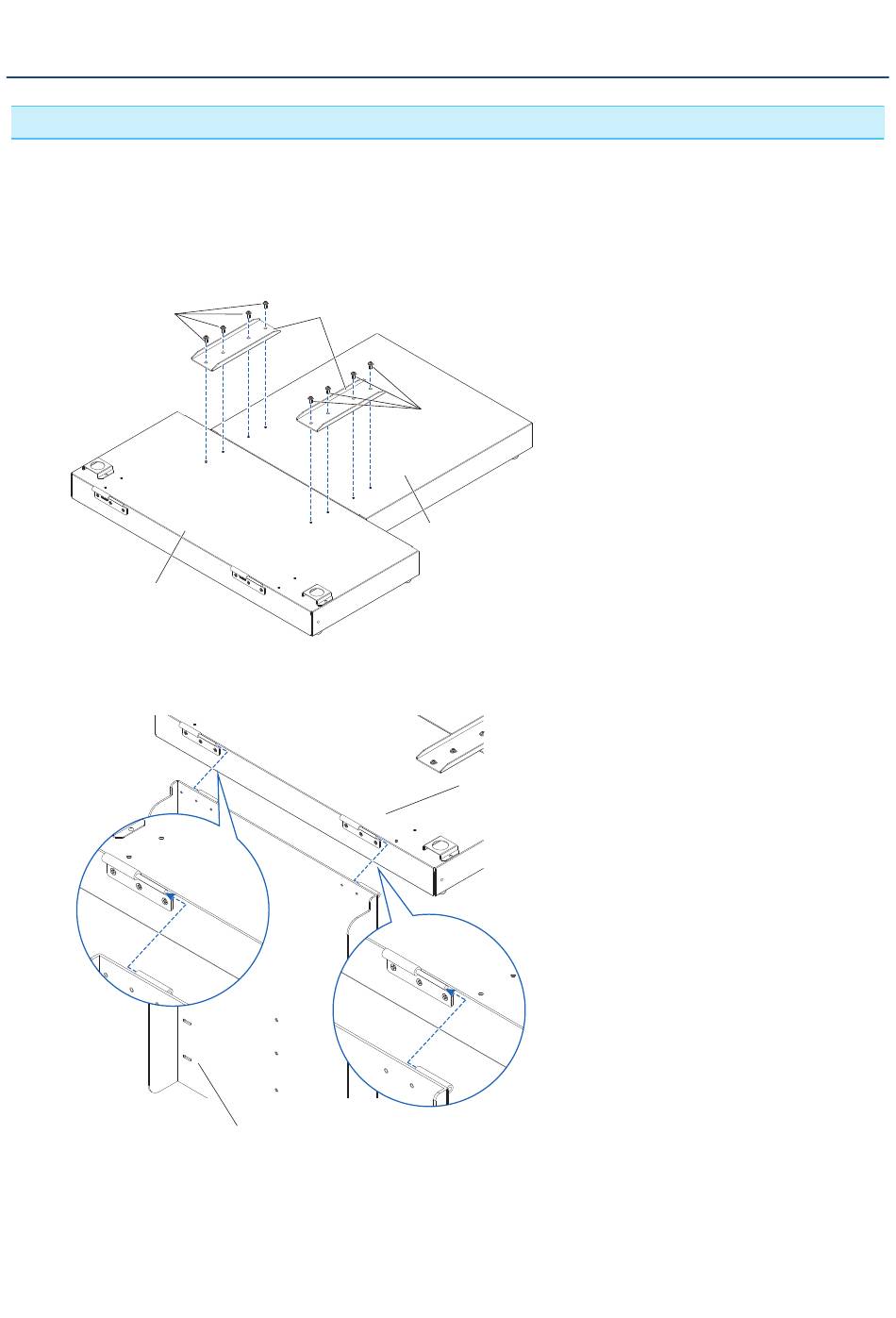

Using a Phillips screwdriver, attach the CE8000 base to the ASF1-30 base with the two Base connecting
parts and eight Screws B.
Base connecting parts
Screw B
Screw B
ASF1-30 base
CE8000 base
2.
Insert the two hinges of the Paper output tray into the two hinges of the CE8000 base.
After inserting the hinges, hang the Paper output tray down.
CE8000 base
Paper output tray
1-5
