3.2

Specifications of included software

When you select ASF1-30 as the model to be connected, ASF1-30 dedicated functions are displayed in our cutting
plotter software (Cutting Master 5/Graphtec Studio 2).
This section explains the ASF1-30 dedicated menu.
For information about the CE8000-40 common menu, refer to the User's Manual for our cutting plotter software
(Cutting Master 5/Graphtec Studio 2).

MODEL SELECTION screen

When using the ASF1-30, select [CE8000-40+ASF1] in the model name.

Registration mark creation option

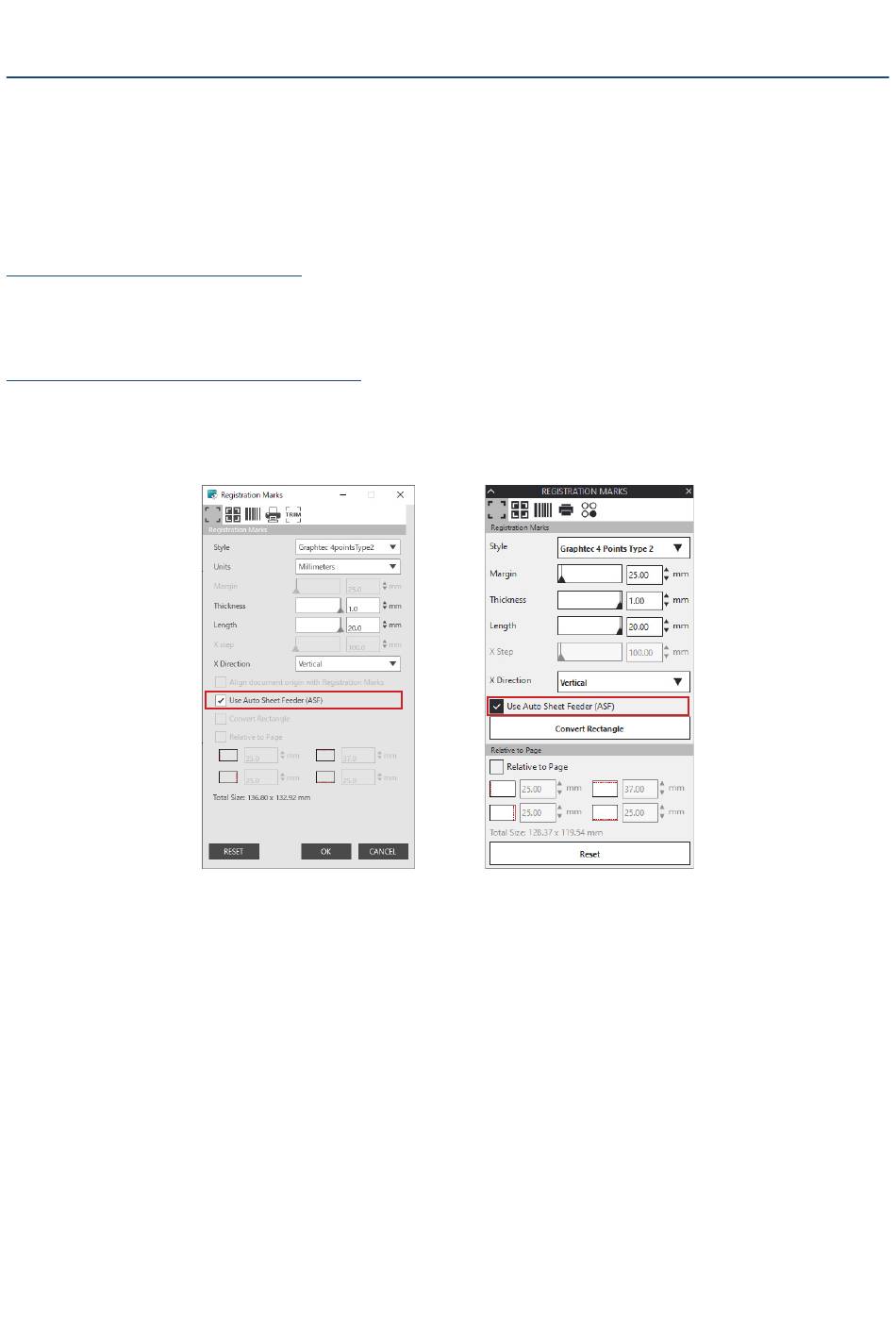

When you select the [Use Auto Sheet Feeder (ASF)] on the [REGISTRATION MARK (Registration Mark)] screen,
the settings for ASF1-30 are reflected on the screen.
This can prevent registration marks and barcodes that cannot be used with ASF1-30 from being created.
Cutting Master 5 Graphtec Studio 2
3-6
