3.

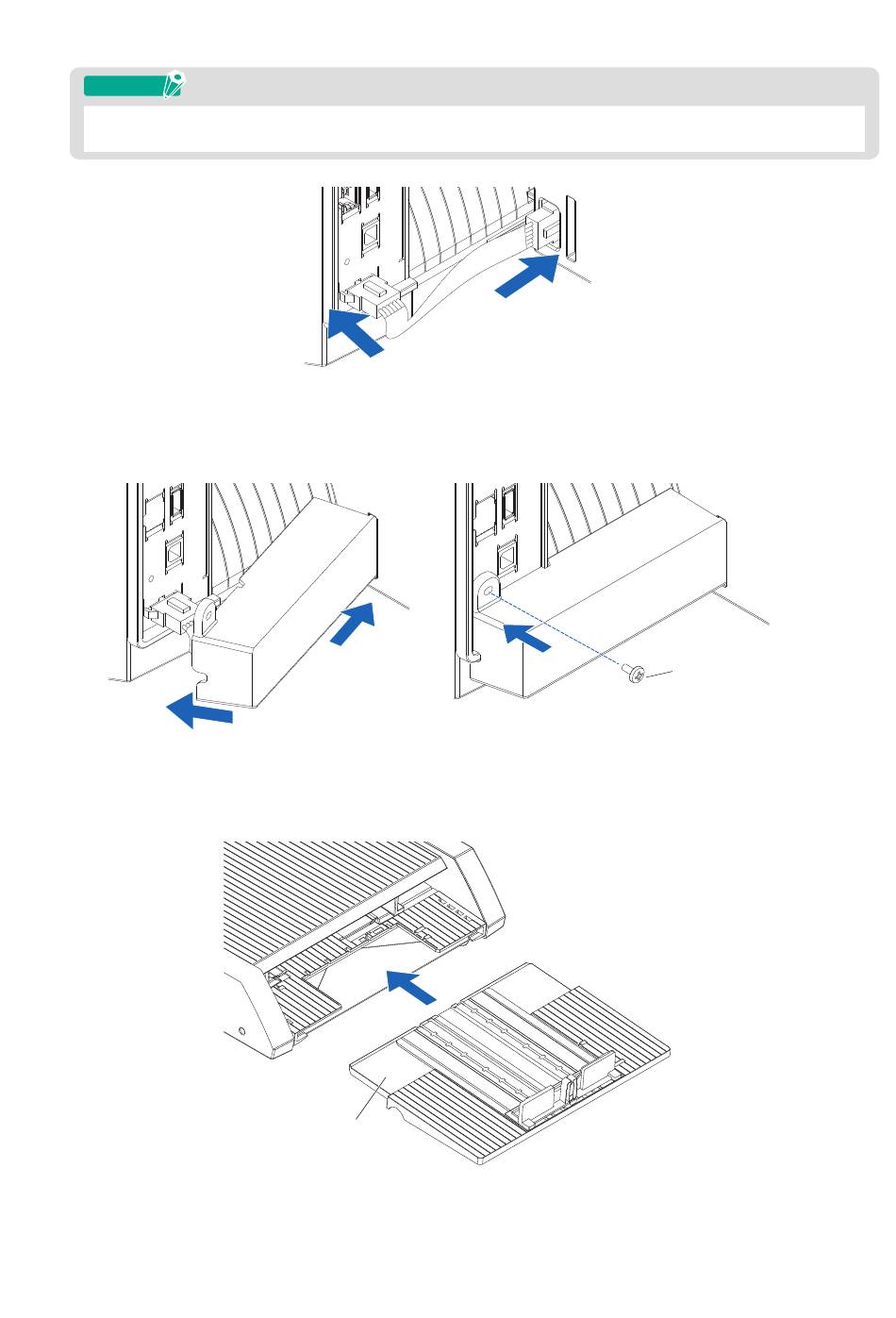

Attach the Connection cable.
Supplement
The shapes of both connectors on the Connector cable are same, it can be connected to both the CE8000-40
and the ASF1-30.
4.
Attach the Cable cover.
Insert the Cable cover into the notch on the ASF1-30 and fixed it to the CE8000-40 using the Connection
cover fixing screw.
5.
Insert the Extension tray.
When inserting the Extension tray, make sure there is nothing under the Extension tray.
If there is anything under the Extension tray, the media will not be feed properly.
Step 1
Step 2
Extension tray
1-10
Connection cover
fixing screw
