Removing the ASF1-30

Make sure that the power switch of the CE8000-40 is turned off (to the " " side).
1.

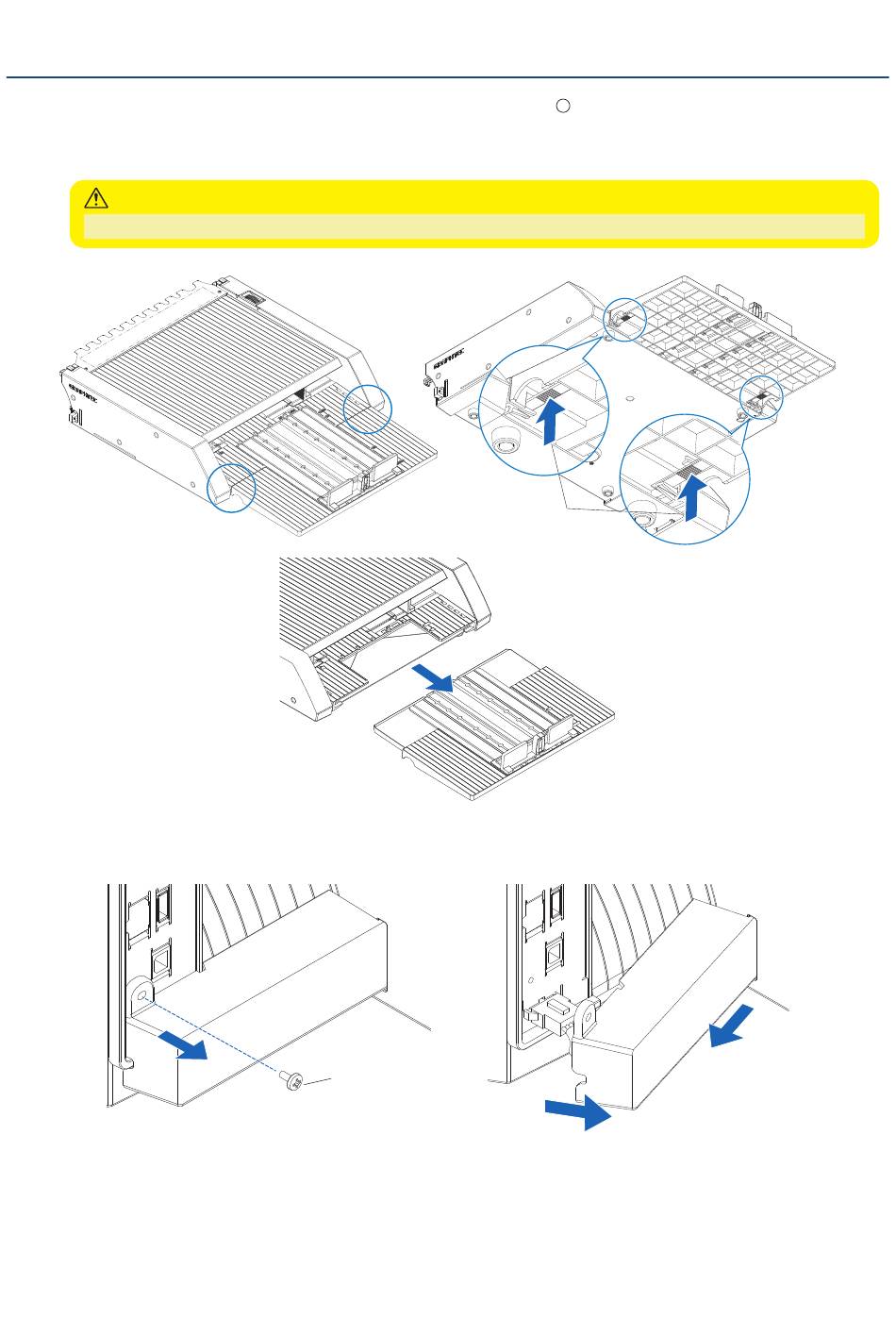

Press the tab on the extension tray to unlock it, then pull out the extension tray.
CAUTION
Be sure to unlock the tab before pulling it out. Using excessive force may cause damage.
2.
Remove the cable cover.
Remove the mounting screws for the ASF1-30 connection cover and remove the cable cover.
Mounting screw
for ASF1-30
Connection cover
2-8
Tab
Step 2
Step 1
