2.4

Detailed position adjustment of CE8000-40 push roller

If the media is fed at an angle due to softness or other factors, and the registration marks cannot be scanned,
adjust the position of the push rollers according to the following steps.
Supplement
•
For the ASF1-30, a registration mark size of 15 mm or more is recommended.
•
For instructions on how to operate the media set lever and how to adjust the position of the push rollers for the
CE8000-40, refer to the CE8000 Series User's Manual.

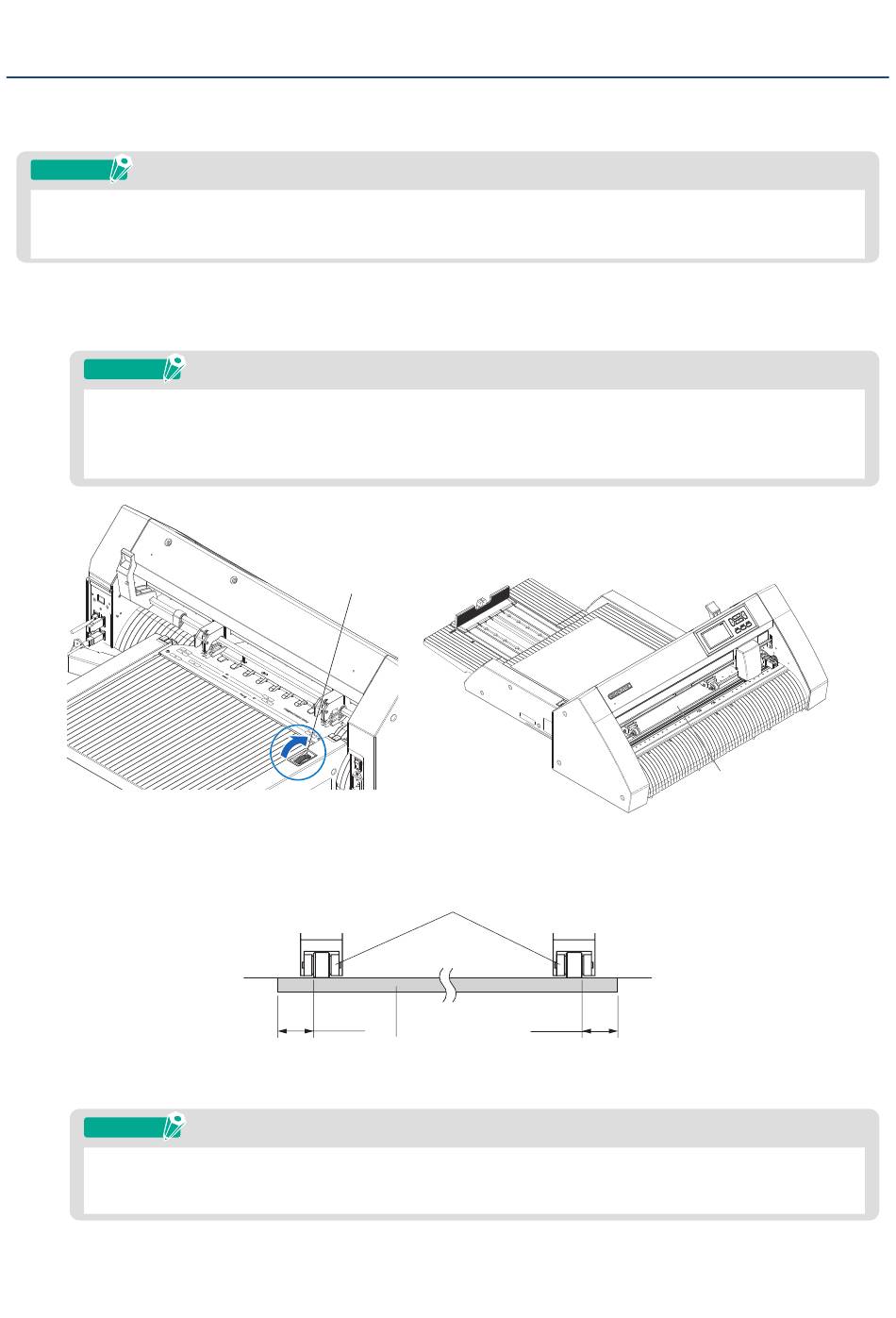

1.
With the media set lever of the CE8000-40 lowered, turn the media feed handle of the ASF1-30 in the
direction of the arrow to feed the media to the CE8000-40.
Supplement
•
Feed the media until it is under the push rollers.
If the media is fed too far in, it is fed at an angle and you are not able to adjust the position of the push rollers
correctly.
•
The media feed handle only turns in this direction.
2.
Adjust the position of the push roller so that the distance between the edge of the media and the edge of
the push roller is 5 mm.
3.
After adjusting the position of the push roller, turn the media feed handle to eject the media.
Supplement
In addition to feeding media using the media feed handle, you can also use the media feeding and ejecting
functions to load, eject, and adjust media.
For details, see "3.1 CE8000-40 Specifications" – "LOAD/EJECT in QUICK MENU".
Media feed handle
Push rollers
5mm
Media
2-7
5mm
Media
