How to connect the CE8000-40

Check that the CE8000-40's power switch is off (the " " side is pressed down).
1.

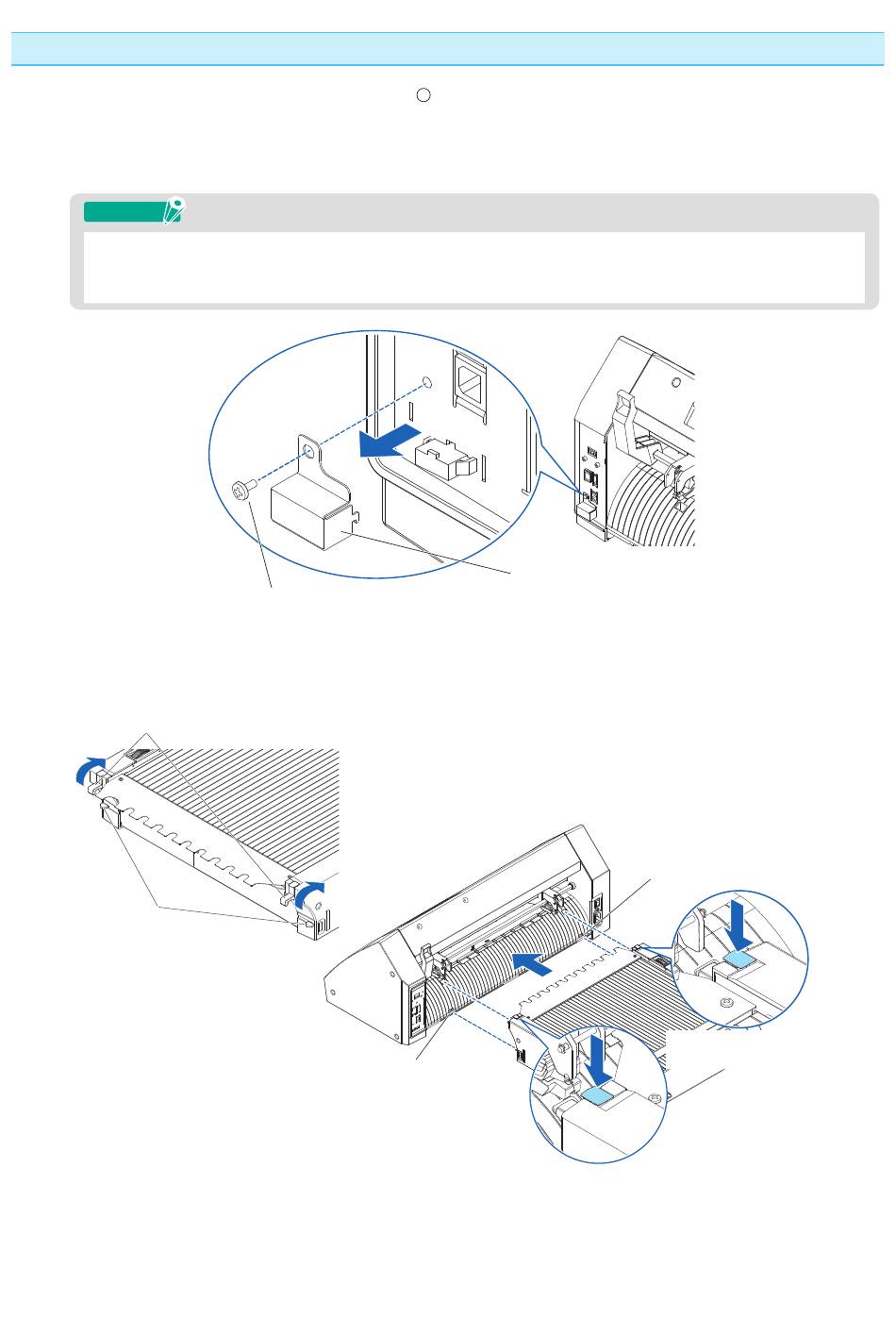

Use a Phillips screwdriver to remove the ASF1-30 Connection cover mounting screws, and then remove the
ASF1-30 Connection cover.
Supplement
•
Please prepare your own Phillips screwdriver.
•
The Connection cover fixing screw will be used again in step 4.
•
Please keep the removed Connection cover in a safe place.
2.
Install the ASF1-30.
Raise the ASF1-30 fixed hook, insert the ASF1-30 Positioning protrusions into the CE8000-40, and then
push the ASF1-30 fixed hook in from above.
ASF1-30 Fixing hooks
ASF1-30 Positioning
protrusions
Connection cover fixing screws
Positioning notch
Connection cover
After installation, push in
the ASF1-30 fixing hook.
1-9
Positioning notch
After installation, push in
the ASF1-30 fixing hook.
