1.2

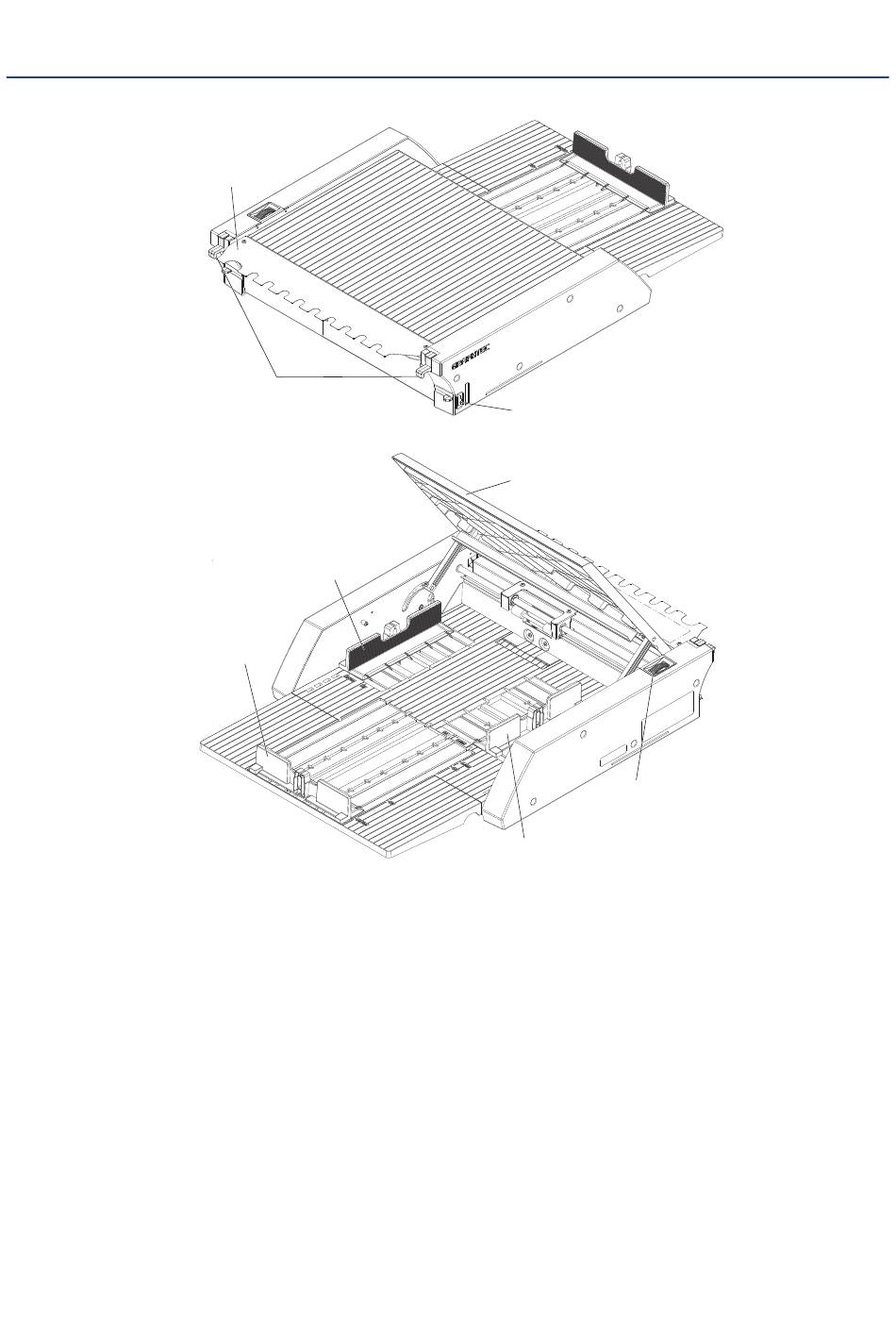

Nomenclature

Media separator
ASF1-30 fixed hook
CE8000 connector
Top cover
Media guide A
Media guide C
Media feed handle
Media guide B
ASF1-30 fixed hook ...................This is a hook to secure the ASF1-30 and CE8000-40.
CE8000 connector ....................This is the connector for connecting the ASF1-30 to CE8000-40.
Media guide A/B/C ....................This is an adjustment guide to fit the width and length of the media you are
loading.
Media feed handle .....................A handle for manually feeding media or feeding media that has stopped midway.
Top cover ...................................This opens and closes when feeding or removing media.
Media separator ........................This is the part that feeds media to the CE8000-40.
1-4
