Procedure for loading A3 size or A3 Plus size media

1.
Open the top cover.
2.

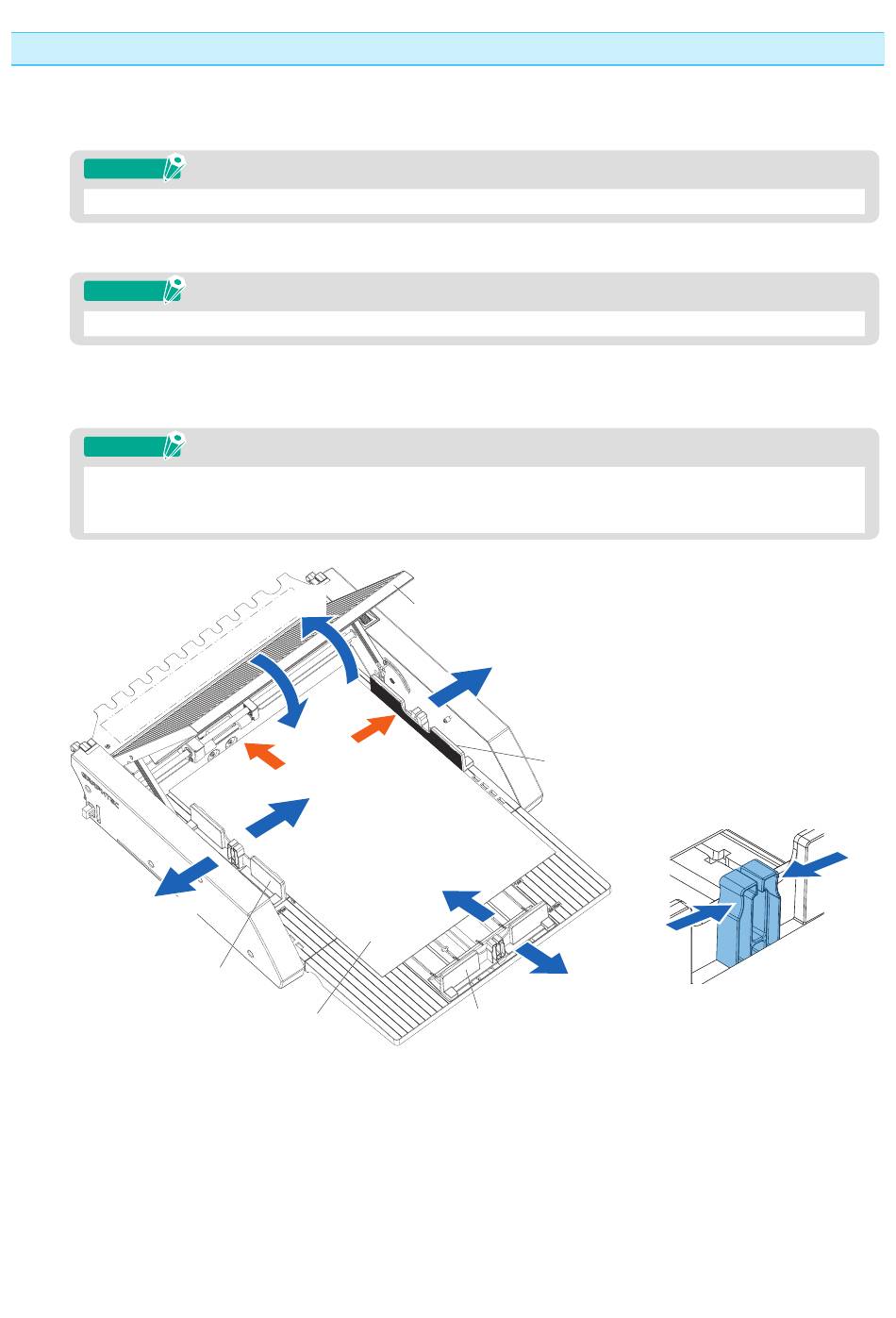

Move media guides A, B and C in the directions indicated by the blue arrows.
Supplement
Move media guide B all the way to the edge.
3.
Align the media with paper guide B and load it firmly until it hits the back.
Supplement
Please fan the media well before loading it.
4.
Adjust paper guides A and C to fit the media.
5.
Close the top cover.
Supplement
If there is a gap between the media guides and the media, the media is fed at an angle, which may result in
poor cutting.
Set each media guide by pressing it against the media.
2
Media guide A
1
5
3
3
4
Media
(A3/A3 Plus size)
Top cover
2
Media guide B
4
2
Media guide C
2-5
To move the paper guide
outward, press the knobs
on both sides and move it.
