Technogym Selection M810 Service Maintenance Manual page 94

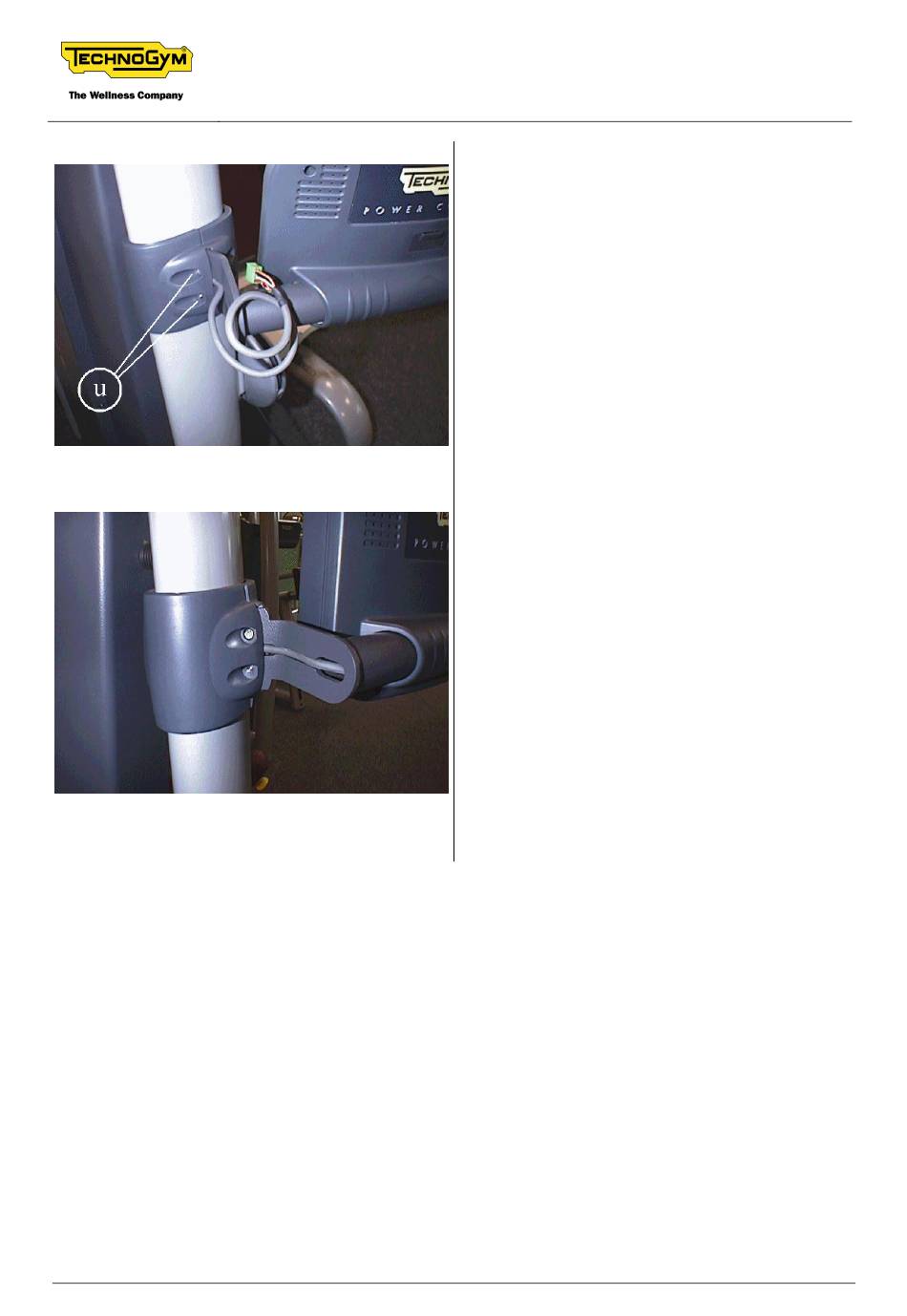

Photo 4.1-22
Photo 4.1-23
Page 4.10
SELECTION LINE: Service & Maintenance Manual - rev. 4.0
2. Position the support and frame holding
clamps and measure the exact length of the
display cable. Replace any excess cable
inside the frame.
3. Route the cable inside the rear locking clamp.
4. Fix the display support to the frame by means
of the locking clamps with the special
screws.
5. Secure the clamps with the 4 screws
each side (use a 4-mm hex T wrench). The
lock nuts for the screws are integrated into
the holding clamps.
6. Pass the display cable through the special slot
in the display support.
Continued on the following page 
