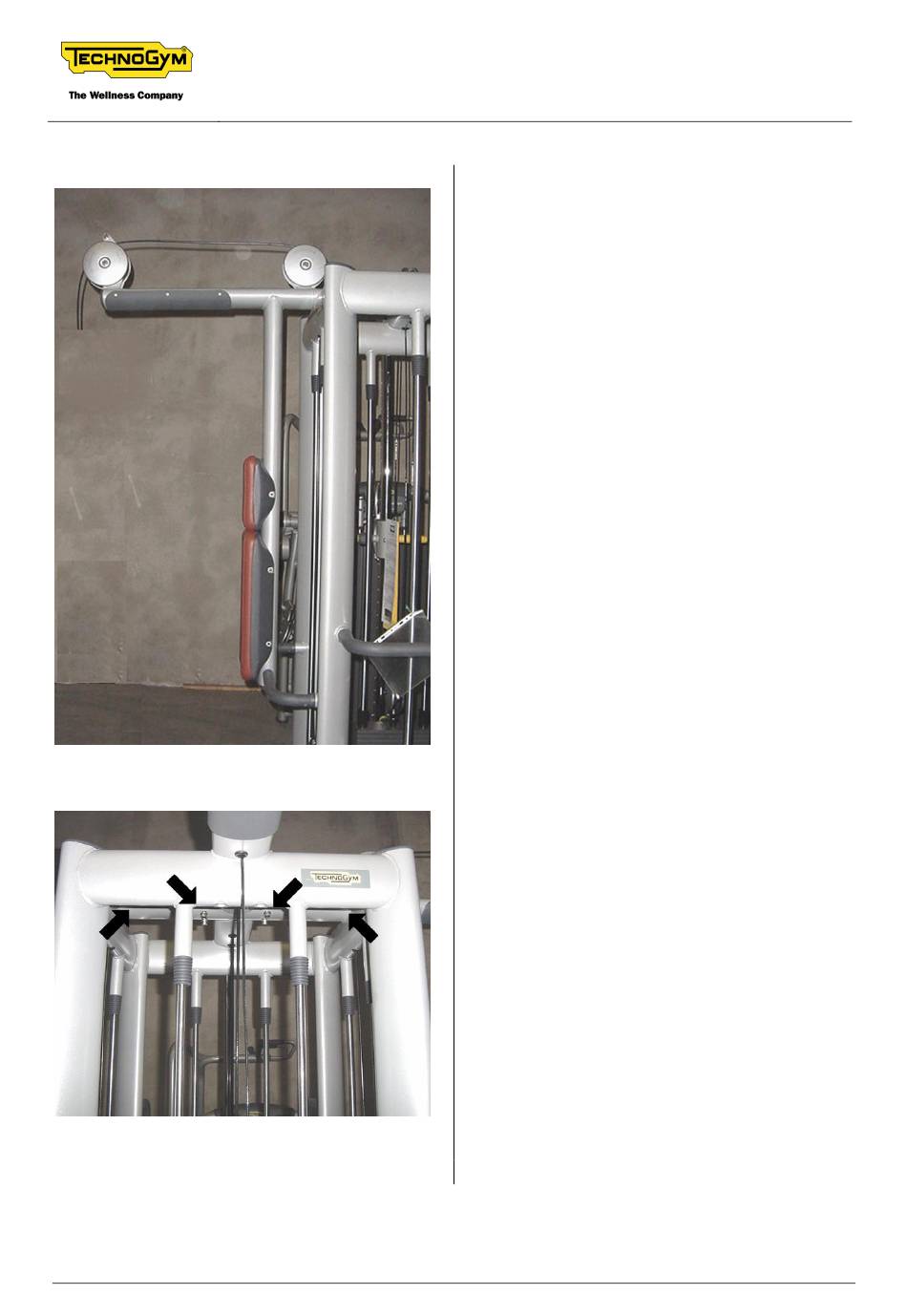

Photo 3.3-12
Photo 3.3-13
Page 3.44
SELECTION LINE: Service & Maintenance Manual - rev. 4.0
7. Insert the two arms on the posts on the frame
and fix them using the screws provided in the
box, as shown in Photo 3.3-13.
8. Lock down the screws indicated in the figure
using an 8-mm Allen wrench.
Continued on the following page
