M835 – Cable Jungle
2.4.1.2.

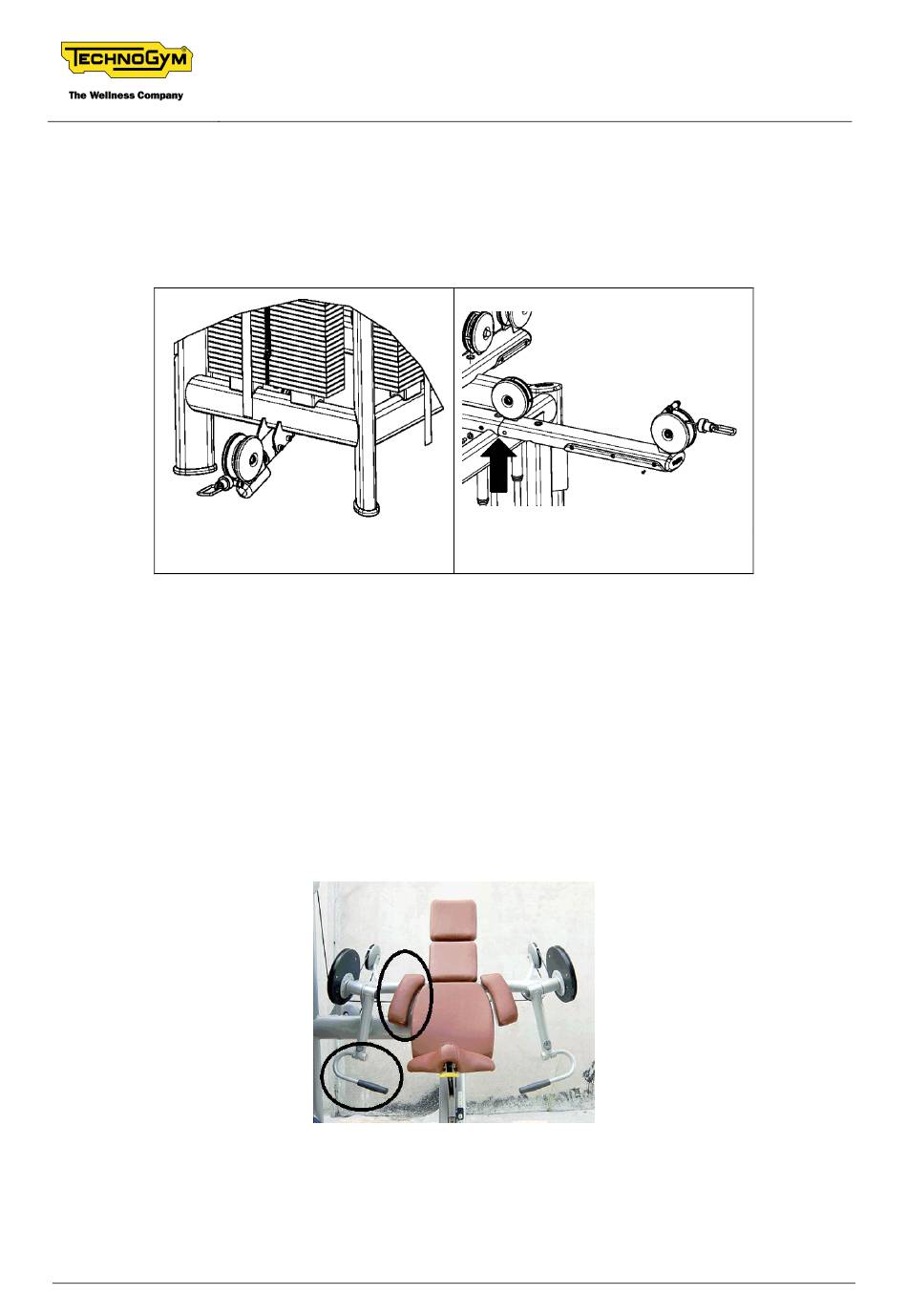

The machine in question has been modified by replacing one of the fixed lower pulleys with a
revolving pulley (see Figure 2.4-1) and making the longer upper cross bar detachable from the
frame, to facilitate moving the machine in tight spaces (see Figure 2.4-2).
The new code is M882.
M836 – Leg Extension
2.4.1.3.
The machine in question has been modified so that the seat can move closer to the center of
rotation, in order to enable shorter users to correctly position themselves, fully up against the
backrest.
The new code is M891.
M843 – Arm Curl
2.4.1.4.
The machine in question has been modified by adding two elbow rest pads on the sides of the
backrest, and replacing the two fixed knobs with two knobs that are free to rotate (see Figure 2.4-3).
Both modifications allow the user to perform the exercise more comfortably.
The new code is M892.
Page 2.8
Figure 2.4-1
Figure 2.4-3
SELECTION LINE: Service & Maintenance Manual - rev. 4.0
Figure 2.4-2
