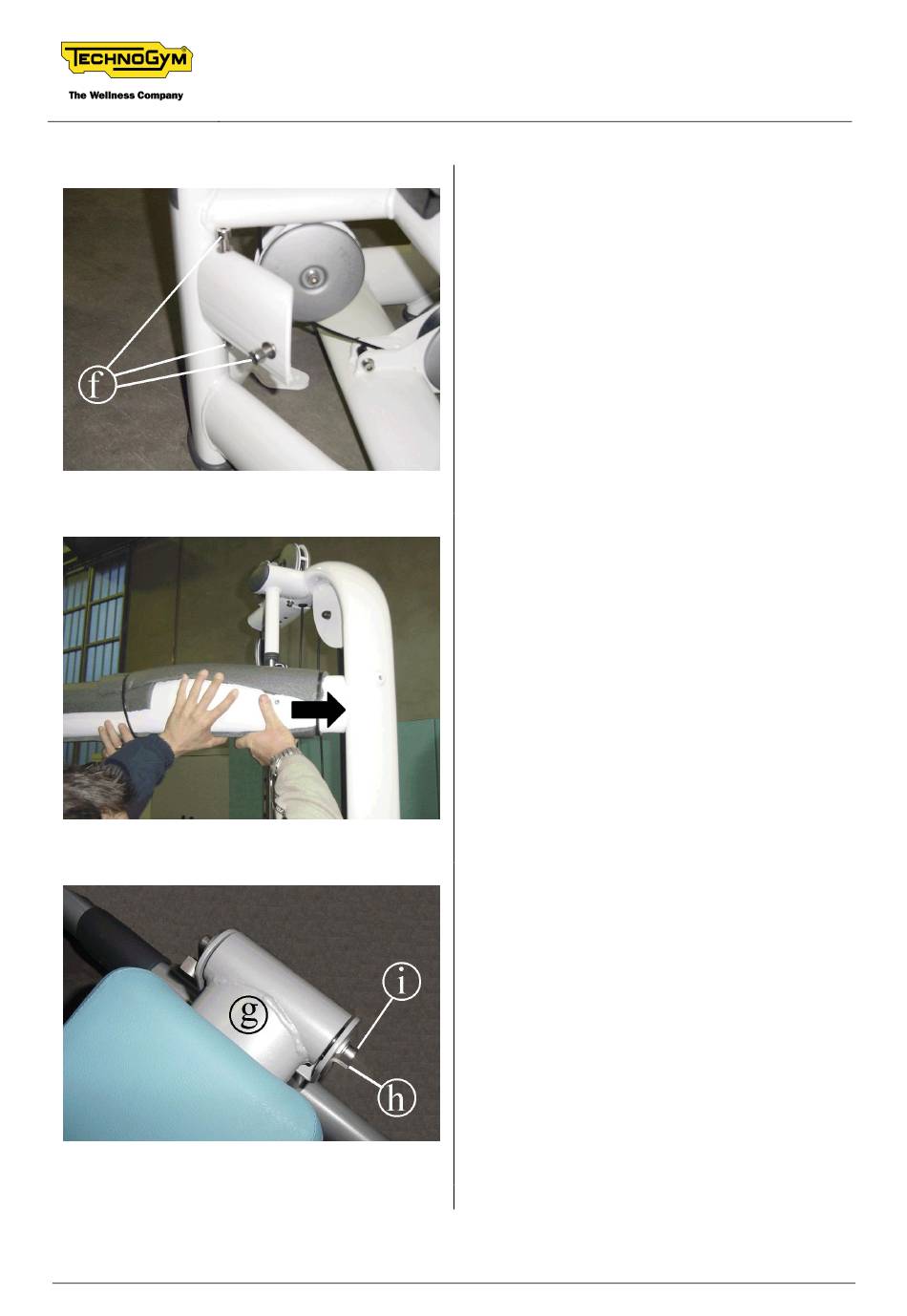

Photo 3.3-66
Photo 3.3-67
Photo 3.3-68
Page 3.68
SELECTION LINE: Service & Maintenance Manual - rev. 4.0
4. Position the two weight stack units so they
are spaced about 2 meters apart, and at an
angle of about 45° to each other.
5. Back off the screws f from the connecting
plates on the machine frame that will
accommodate the lower and upper cross bars.
6. Assemble both cross bars on one of the two
weight stack units, and hold in place by
partially locking down the six screws.
7. Bring near the second weight stack unit,
fitting the previously assembled cross bars
onto its connecting plates.
8. Finish securing the cross bars by fully
locking down the 12 screws f.
9. Remove the two cams h assembled on the
bench body.
10. Assemble bench frame g onto the lower cross
bar as illustrated in the figure.
11. Reassemble cam h on the end of the cross bar
that is external to the frame, securing it with
screw and washer i on either side, but
without locking down completely.
Continued on following page 
