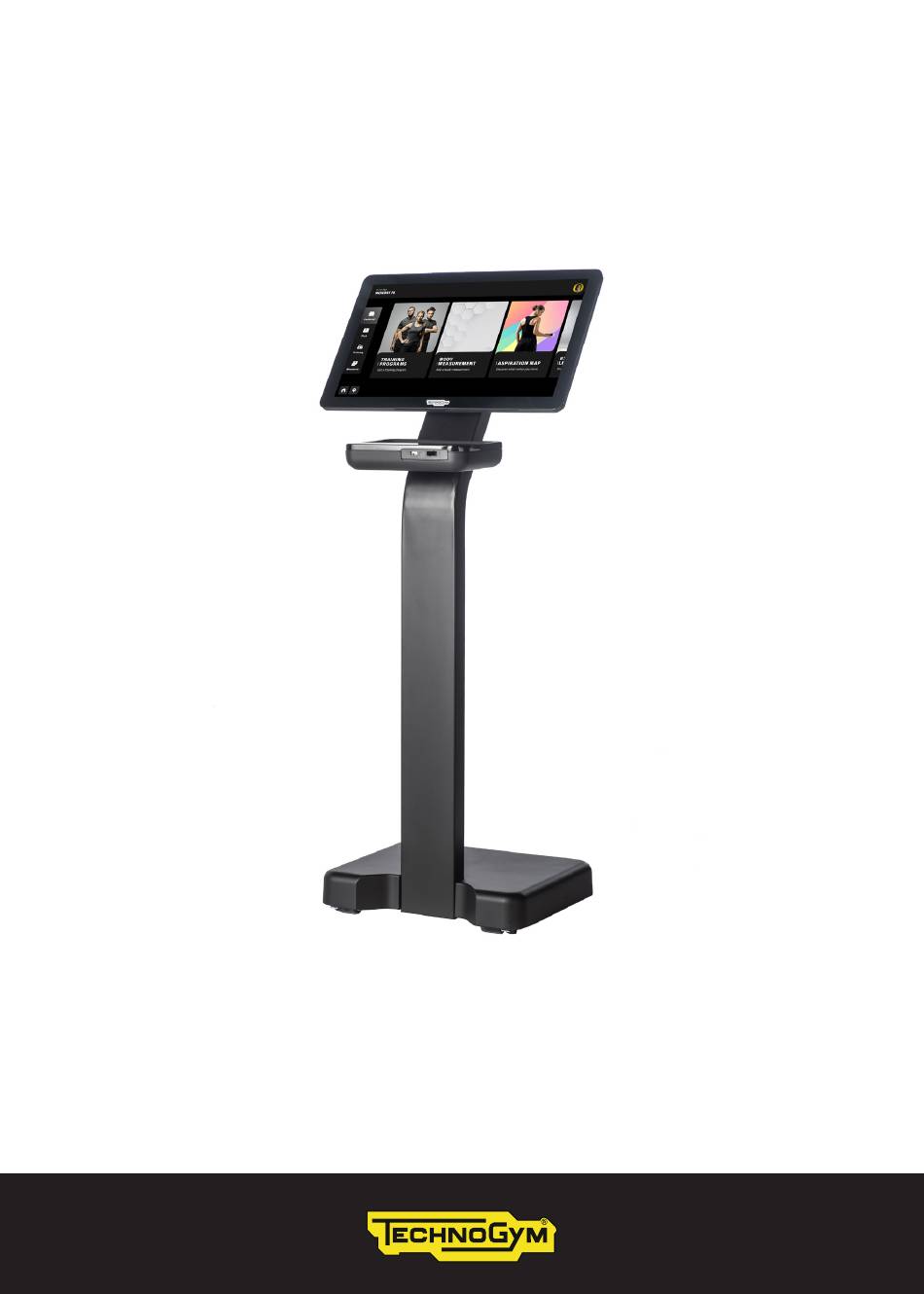

- Page 1 MYWELLNESS KIOSK USER MANUAL...
- Page 2 The User Manual was written in the Manufacturer’s original language and then translated into the language of the country of use. It is an integral part of the product kit. Technogym reserves the right to modify its products and documentation at any time and without notice.
-
Page 3: Table Of Contents
Mains connection and switching on ..................10 Lifting and moving the product ....................12 Routine maintenance ........................13 Replacing the fuse ..........................14 Manufacturer and product identification .................15 Technical Service ..........................16 Storing and disposing of the product ..................17 Disposing of the battery ........................18 MYWELLNESS KIOSK... -
Page 4: Safety Warnings
Do not use any accessories other than those recommended by Technogym. Never turn on the product if it has a damaged cable or plug, if it is not working correctly, if it has been knocked over or damaged, or if it has fallen into water. - Page 5 The electrical system must conform to the standards and legal requirements in the country of use. Do not place anything on the screen. Technogym is not responsible for any harm due to any failures or damage caused by unauthorized maintenance, misuse, accident, negligence, improper assembly or installation, debris resulting from any construction activities in the area where the unit is used, rust or corrosion as a result of the product’s location, alterations or modifications without Technogym written authorization...
-
Page 6: Description Of The Product

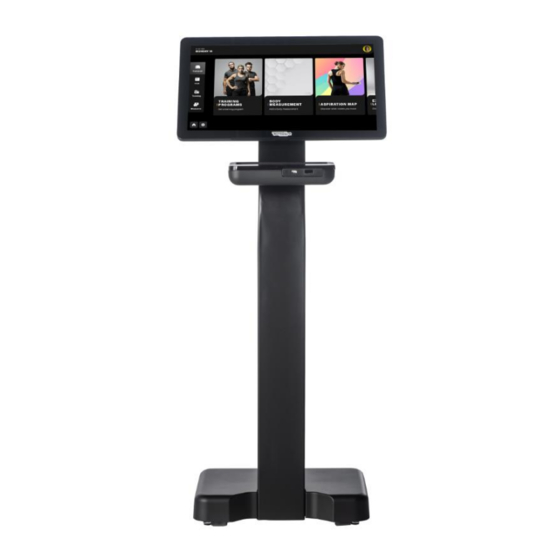

Description of the product A. 22” full HD touch screen B. Technogym key socket C. USB port D. NFC sensor for the Mywellness band and smartphone E. Wireless charger F. Network or LAN socket for the Ethernet connection G. Socket for the HDMI 1.4 connector (up to 4k) H. - Page 7 Do not use the battery charger for purposes other than what is intended. It is recommended to secure the HDMI cable to the appropriate slot with a cable tie. MYWELLNESS KIOSK...
-
Page 8: Technical Characteristics
Electric class Risk class Protection rating IP20 Operating temperature Between +5 and +30°C Device weight 24,5 kg The Mywellness Kiosk is a commercial device intended for residential and professional use indoors. 530 mm 352 mm 450 mm 410 mm MYWELLNESS KIOSK... - Page 9 This equipment complies with FCC and ISED Canada (RSS-102) radiation exposure limits set forth for extremity SAR and use in contact with it. The highest SAR value when tested at a separation distance of 0 mm for extremity use is 1.52 W/kg against a limit of 4.0 W/kg. MYWELLNESS KIOSK...
-
Page 10: Mains Connection And Switching On
Mains connection and switching on M. Main switch. Turns the device power supply voltage on and off. N. Fuse. Protects the electrical components of the device. MYWELLNESS KIOSK... - Page 11 The wall socket must be located in a place where the unit may be easily plugged in and unplugged. Periodically check the condition of the power supply cable. It is recommended to use a wall socket that is used exclusively for the product. MYWELLNESS KIOSK...
-
Page 12: Lifting And Moving The Product
Do not use the screen as a gripping point for movement. WARNINGS. Move product very carefully, because it could become unstable and tip over. Disconnect all the cables from the sockets before moving the product. MYWELLNESS KIOSK... -
Page 13: Routine Maintenance
The safety of the product is assured only if it is carefully inspected every two weeks for any signs of damage and/or wear. Replace defective and worn components immediately, or alternatively remove the product from service. MYWELLNESS KIOSK... -
Page 14: Replacing The Fuse
Refit the fuse holder in its seat, making sure it snaps in correctly. The product is supplied with 2 fuses. Electrical specifications of the fuse: 4A (F) 250 V When replacing, only use fuses with the same electrical specifications, an identical value and that are certified. MYWELLNESS KIOSK... -
Page 15: Manufacturer And Product Identification
C. Description of the product D. Electrical specifications E. Consultation of user manual required F. Serial number and date of manufacture G. Product model The values shown in the drawing are indicative. check the label on the product for the correct information. MYWELLNESS KIOSK... -
Page 16: Technical Service
- date of purchase - serial number (F) - a precise description of the problem. Any work on the product by persons unauthorised by Technogym will invalidate the warranty. Technogym S.p.a. via Calcinaro 2861, 47521 Cesena (FC) - Italy Made in Italy... -
Page 17: Storing And Disposing Of The Product
European Community may take used electrical and electronic equipment to authorised collection centres. If the product is used for professional purposes, contact your reseller or the Technogym Customer Service, in the various Countries, to arrange for collection and disposal of waste from electrical and electronic equipment. -
Page 18: Disposing Of The Battery
Contact firms specialised in urban and environmental hygiene. Observe the following instructions to remove the battery safely. Remove the cover (A) and the tab (B). Remove the screws (C). Release the cover (D) from its seat. MYWELLNESS KIOSK... - Page 19 Turn the cover (D) and place it on the storage compartment. Remove the connectors (E). Unscrew the screws (F). Remove the battery (G). MYWELLNESS KIOSK...
- Page 20 Mywellness Kiosk_en 0SM01173AB July 2022...
