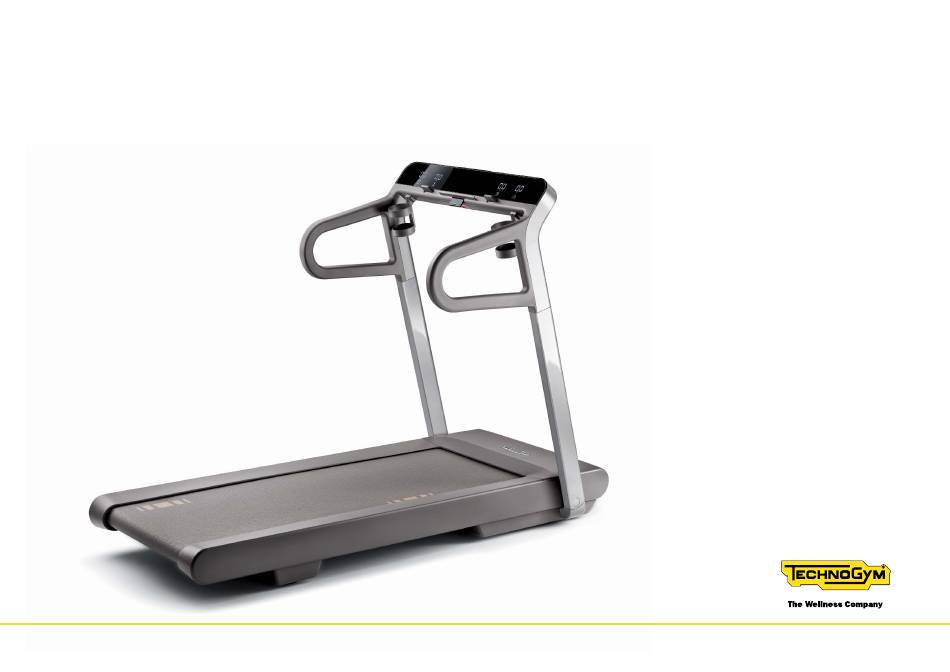

- Page 1 MYRUN TECHNOGYM User Manual...
-
Page 2: Table Of Contents
Contents Important safety instructions ............3 Working out with MYRUN TECHNOGYM ........22 Personal safety ................5 Using a tablet ................25 Identification of the unit ..............7 Setting exercise data ..............26 Technical data ..................8 Routine maintenance ..............27 Description of the equipment ............9 Treadmill belt alignment ............. -
Page 3: Important Safety Instructions
Use the unit exclusively for the purposes described in the user manual; only perform the exercises for which the unit has been designed, following the instructions given in the manual. Any other use should be considered incorrect and therefore dangerous. Do not use any accessories other than those recommended by Technogym. MYRUN TECHNOGYM... - Page 4 Never turn on the equipment if it has a damaged cable or plug, if it does not work correctly, if it has been knocked over or damaged, or if it has fallen into water. In these circumstances, contact the Technogym Technical Support Service.
-
Page 5: Personal Safety
Keep all the components, such as for example the power cable and the on/off switch, away from liquid substances, to avoid all risk of electric shock. Keep the equipment in good operating condition. If you see signs of wear, contact Technogym's technical support service. - Page 6 Technogym’s written authorization or for failure on your part to use, operate and maintain the unit as set out in this User Manual.
-
Page 7: Identification Of The Unit
Identification of the unit A - Manufacturer’s name and address B - Description of the product C - Maximum user weight Technogym S.p.A. -Cesena (FC) MYRUN Model no. DCKH2BB D - Classification of the unit Maximum User’s Weight: 130kg Electric Class: I... -
Page 8: Technical Data
100 - 120 Vac ± 10% Technogym s.p.a. Power supply Manufacturer 50/60 Hz 50/60 Hz via Perticari 20 - 47065 Gambettola FC Marks and certifications Standard unit, not protected against ingress of water. (*) Performance measured with user weighing 85 kg (187 lb). MYRUN TECHNOGYM... -
Page 9: Description Of The Equipment
Press the button again to restart the paused exercise; hold the button down for at least 2 seconds to end the paused exercise. Support for small electronic devices (G): you can place your tablet on it. MYRUN TECHNOGYM... - Page 10 Belt gradient Belt speed or pace The elapsed time is expressed in minutes and seconds. For each hour of exercise, a luminous indicator turns on next to the clock icon. mm:ss The belt gradient is shown as a percentage. MYRUN TECHNOGYM...
- Page 11 The distance covered is expressed in kilometres; above 100 kilometres, the count restarts from 0. The distance can be expressed in kilometres or miles, depending on the selected setting. To select the value to be displayed, see the paragraph “Setting the exercise data”. MYRUN TECHNOGYM...
-
Page 12: Accessories
2 - Important safety instructions 3 - Guarantee certificate and statement of conformity 4 - Power cable 5 - Cleaning cloth 6 - Levelling spanner 7 - Tool for removing the panels for access to adjustments 8 - Water bottle holder MYRUN TECHNOGYM... -
Page 13: Safety Devices And Warnings
Before using the equipment, check that the stop device works correctly and attach the cord to your clothing with the clip provided. Product immobilisation To prevent uncontrolled use of the product, remove the magnetic stop device (A) and store it in a safe place. MYRUN TECHNOGYM... - Page 14 This symbol indicates the presence of moving parts. Only trained personnel may work on the product areas where this symbol is present. MYRUN TECHNOGYM...
- Page 15 If no user is detected for 30 seconds when at a speed of 3 km/h or more, the belt stops and the exercise is paused. At minimum speed, the user is detected only if they weigh at least 50 kg. Marking on the treadmill belt (D) The marking on the two sides of the treadmill belt indicates if the treadmill is moving. MYRUN TECHNOGYM...
-
Page 16: Place Of Installation
A dedicated power-supply circuit is recommended; this should be fitted with a combined MCB/RCD with the following characteristics: Type C10, if the mains voltage is 200-240VAc; Type C16, if the mains voltage is 100-120Vac. If it is not possible to connect the product to a dedicated power-supply circuit with the specifications given, consult an electrician. MYRUN TECHNOGYM... -
Page 17: Moving The Equipment
Given the weight of the equipment, we recommend that more than one person be involved in moving it. If the state of the floor does not allow the wheels to be used, the unit must be moved by using standard lifting and transport equipment. MYRUN TECHNOGYM... -
Page 18: Levelling
Insert the tool supplied (C) into the hole provided and use it to prize open the panel (D). Loosen the lock nut (E). Screw foot (A) in or out until both feet (A) and (B) touch the floor. Tighten lock nut (E) after adjustment is completed. Close panel (D). MYRUN TECHNOGYM... -
Page 19: Electrical Connection
Improper connection of the earth wire may result in a risk of electrical shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the product is properly earthed. Do not modify the plug provided with the unit; if it does not fit the socket, have a suitable socket installed by a qualified electrician. MYRUN TECHNOGYM... -
Page 20: Turning On And Off
The switch is used to turn the unit on and off, but does not fully disconnect it from mains power, even when set to the “0” (off) position. For complete disconnection you must remove the plug from the power supply. MYRUN TECHNOGYM... - Page 21 0.5 W. Even if the main switch is on, the product will go into stand-by if it is not used. The screen is off in stand-by mode. To reactivate all the functions, simply climb onto the product. MYRUN TECHNOGYM...
-
Page 22: Working Out With Myrun Technogym
Working out with MYRUN TECHNOGYM MYRUN TECHNOGYM simulates walking and running, aerobic activities that can be performed at various levels of intensity, useful for joint and cardiovascular rehabilitation exercises too. The range of users for which it is intended is... - Page 23 Any distractions in the area around the equipment may cause you to lose your balance. MYRUN TECHNOGYM is intended to be used solely for the purpose for which it was designed and constructed, that is for simulated walking or running. Any other use of the equipment is to be considered improper and therefore dangerous.
- Page 24 Working out with MYRUN TECHNOGYM To read the graph, simply find your age on the horizontal axis and scan up the vertical until you reach the 60%, 70% and 90% values. Aerobic exercise performed at a heart rate between 60% and 70% mainly burns fat as an energy source.
-
Page 25: Using A Tablet
Using a tablet For integration with TECHNOGYM MYRUN, the tablet must be attached in a stable manner to the dedicated docking system, as illustrated. To connect your tablet with TECHNOGYM MYRUN: download the app from AppStore or on Google play;... -
Page 26: Setting Exercise Data
The unit of measure min/km will illuminate. Repeat the same operation to display your speed again. 00.0 km/h 75.00 min/km 00.0 min/km 00.8 km/h 00.0 mph 120.4 min/mi 00.0 min/mi 00.5 mph MYRUN TECHNOGYM... -
Page 27: Routine Maintenance
Replace defective and worn components immediately, or alternatively remove the equipment from service. Call the Technogym Technical Support Service for instructions on any maintenance operations not described in this manual. The unit should always be kept clean and free of dust, in accordance with normal hygiene and sanitary practices. -
Page 28: Treadmill Belt Alignment
When you have completed the adjustment, stop the belt with the STOP button. Close the flap (A). Warning The treadmill belt may only be adjusted by trained personnel or by the Technogym Technical Support Service due to the presence of moving components. MYRUN TECHNOGYM... -
Page 29: Easily Solved Problems
Mains power failure. equipment by plugging in an appliance that definitely works. Power supply cable damaged. Contact the Technogym Technical Support Service. The power cable connector is not connected to the unit. Connect the connector. The main switch is off. - Page 30 Solution Position the tablet on the screen. The product is blocked, with the screen off and Start the MYRUN app. The software update has not completed. with the red light of the start button on steadily Connect to the product.
-
Page 31: Error Messages
This code indicates a possible problem with the detection of the personal device (tablet) in the upper position above the screen. The product functions in any case; press the Start key to continue. To resolve the problem, contact the Technogym Technical Support Service. Error code HF702 This code indicates a possible problem with the detection of the personal device (tablet) in the lower position in front of the screen. -
Page 32: Fitting And Removing The Side Handgrips
(B). To remove the side handgrip, follow the fitting instructions in reverse order: lower lever (B) and keep it pressed forward; pull out the handgrip. MYRUN TECHNOGYM... -
Page 33: Technical Service
Via Calcinaro 2861, 47521 Cesena Italy on-site servicing tel: +39 0547 56047 sending of original spare parts. http://www.technogym.com/Support When you contact the Technogym Technical Support Service you must give the following information: equipment model, date of purchase, serial number, precise description of the problem. -
Page 34: Storage
+10°C and +25°C and relative humidity between 20% and 90%. Use the original packing materials, to better preserve the equipment. MYRUN TECHNOGYM... -
Page 35: Disposal
Following measures implemented by the member states of the European Union, private citizens resident in the EC can take their used electrical and electronic equipment to authorised collection centres for disposal. If the product is used commercially, contact your reseller or Technogym Customer Service in your country to arrange collection and disposal of the electrical or electronic waste. - Page 36 MYRUN TECHNOGYM_en-AF 0SM00906...
