Wrenches T 5-6-8
-
socket wrench/open end wrench 17
-
knives
-
Electric Phillips-head screwdriver and/or Phillips
-
screwdriver carrier and/or dollies
N.B.
-
Bolts and nuts are contained in a special blister pack with relative legend
-
The housings are extremely delicate (once unpacked they become
dirty very easily)
-
The weight of the machine is top-heavy towards the seat
-
To fix the machine to the ground, position the plates before closing the housings
carried out by Fabrizio Frattini
Approved by Andrea Borghesi

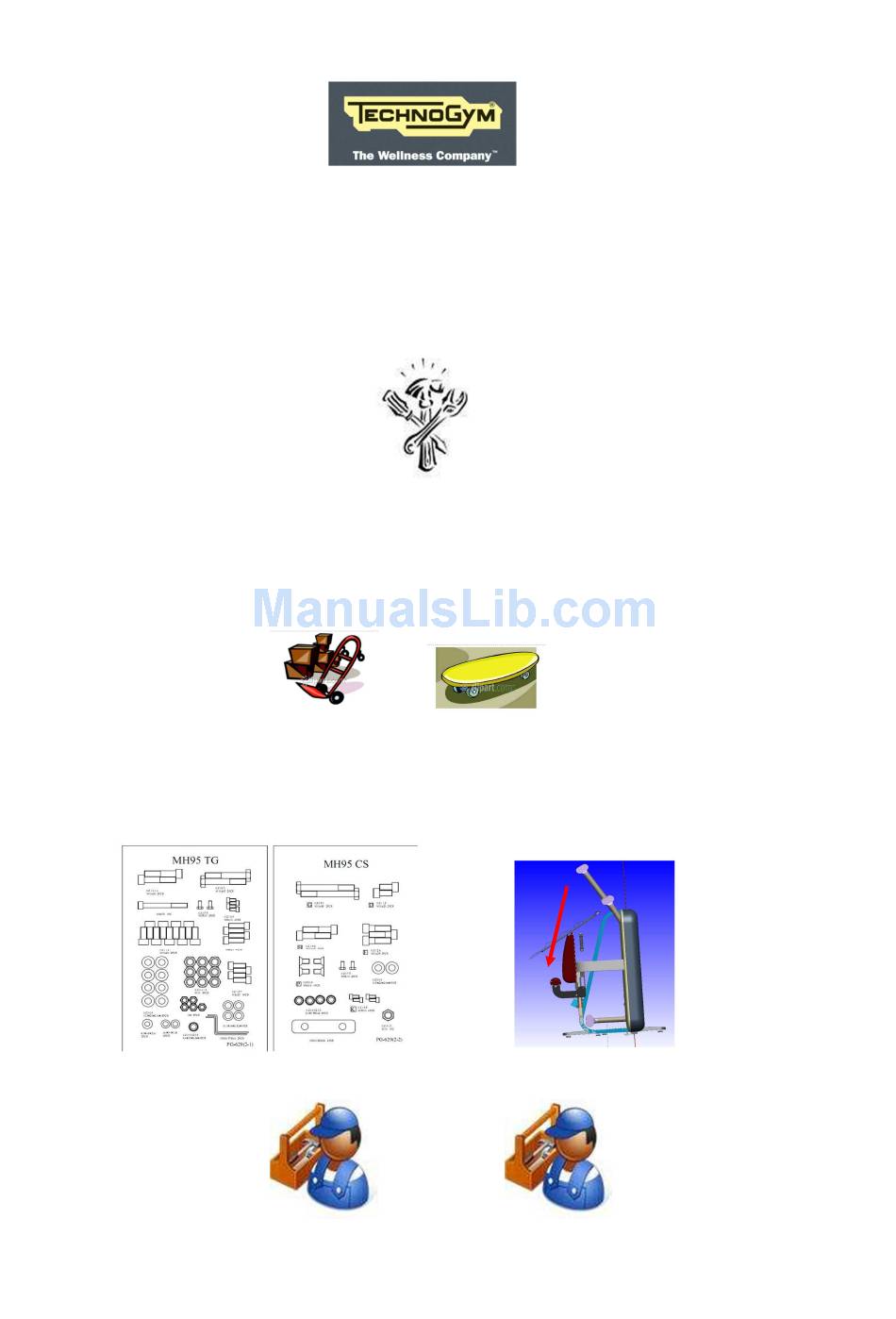

MACHINE INSTALLATION MANUAL
KINESIS STATIONS CORE
EQUIPMENT NECESSARY FOR THE INSTALLATION
PEOPLE NECESSARY FOR THE INSTALLATION
1
MH650E
10/11/2011
revision 1/1
Advertisement
Related Manuals for Technogym MH650E
Summary of Contents for Technogym MH650E
- Page 1 10/11/2011 MACHINE INSTALLATION MANUAL KINESIS STATIONS CORE MH650E EQUIPMENT NECESSARY FOR THE INSTALLATION Wrenches T 5-6-8 socket wrench/open end wrench 17 knives Electric Phillips-head screwdriver and/or Phillips screwdriver carrier and/or dollies N.B. Bolts and nuts are contained in a special blister pack with relative legend...
-
Page 2: Hardware Components
10/11/2011 General Information HARDWARE COMPONENTS Code Description Quan Letter blister-code Description Quantit tity 0Z126 Screw M10x35 8,8 Z H0007114AC Seat unit 0Z306 washer 10.5x20x2 Z 0Z023AA Screw 10X65 8.8 Z 0Z306 washer 5x20x2 Z T0000252AC foot unit 0Z126 Screw M10x35 8.8 Z 0Z415 self-locking nut M10 0D004515AC... -
Page 3: Unpacking Machine
10/11/2011 UNPACKING MACHINE DO NOT USE KNIFE UNPACKING MACHINE SEQUENCE Phase 1 Operator A Operator B Remove cardboard packaging box carried out by Fabrizio Frattini revision 1/1 Approved by Andrea Borghesi... - Page 4 10/11/2011 Phase 2 Operator A Operator B Disassemble the right-left wooden frame Take out and place the machine parts next to the (dotted black line) unpacking area Remove 2+2 screws fixing right-left of wood (detail) carried out by Fabrizio Frattini revision 1/1 Approved by Andrea Borghesi...
- Page 5 10/11/2011 Phase 3 Operator A Operator B Cut the lower blackties (do not cut the 4 upper ones), position the transport carrier, separate the wooden frame from the pallet and transport the machine to an area close to the unpacking carried out by Fabrizio Frattini revision 1/1 Approved by Andrea Borghesi...
- Page 6 10/11/2011 Phase 4 Operator A Operator B Eliminate the wooden frame "A", eliminate the polyethylene bag carried out by Fabrizio Frattini revision 1/1 Approved by Andrea Borghesi...
- Page 7 10/11/2011 Transport the machine +components to the assembly area using the transport trolley or dollies depending on the type of area MACHINE ASSEMBLY SEQUENCE Phase 1 Operator A-B Tighten seat unit to frame with 2+2 screws and 2+2 washers, eliminating the support clamp carried out by Fabrizio Frattini revision 1/1 Approved by Andrea Borghesi...
- Page 8 10/11/2011 Phase 2 Operator A Operator B unhook 3 arms D, remove plate F, install the arms in the Insert rear foot to frame unit, tightening the 2 screws special housings inserting 2 screws G + 2 washers for K + 1 screw J + 2+2 washers + nut each arm tighten all the arms (the screws have already been preset by Operator B)
- Page 9 10/11/2011 Phase 3 Operator A Operator B Remove the packaging of central frame unit L, Insert 10 threaded pins (well nut) into the slide down the frame in the open slot, tighten frame unit with 2 screws M carried out by Fabrizio Frattini revision 1/1 Approved by Andrea Borghesi...
- Page 10 10/11/2011 Phase 4 Operator A Operator B Remove the packaging, take out the right housing Remove the packaging, take out the left housing and and insert into the frame unit starting from the top insert into the frame unit starting from the top and and continuing to the bottom, tighten with 5 continuing to the bottom, tighten with 5 screws P + 5 screws P + 5 washers, insert right handle Q and...
- Page 11 10/11/2011 Phase 5 Operator A Operator B Test machine Deliver documentation and explanation on use of the machine to the customer Clean assembly area WARNING If it is necessary to move the machine once the installation is completed, pay attention to the housing of the front and back feet (shown in the illustration).
- Page 12 10/11/2011 TO FIX THE MACHINE TO THE GROUND To FIX the equipment to the ground, proceed in the same way on both sides of the equipment: fasten clamps M with screws C with nuts and washers (bolts and nuts are preassembled on the frame).
