Front Weight Stack Casing - Technogym Selection M810 Service Maintenance Manual

6.9. FRONT WEIGHT STACK CASING

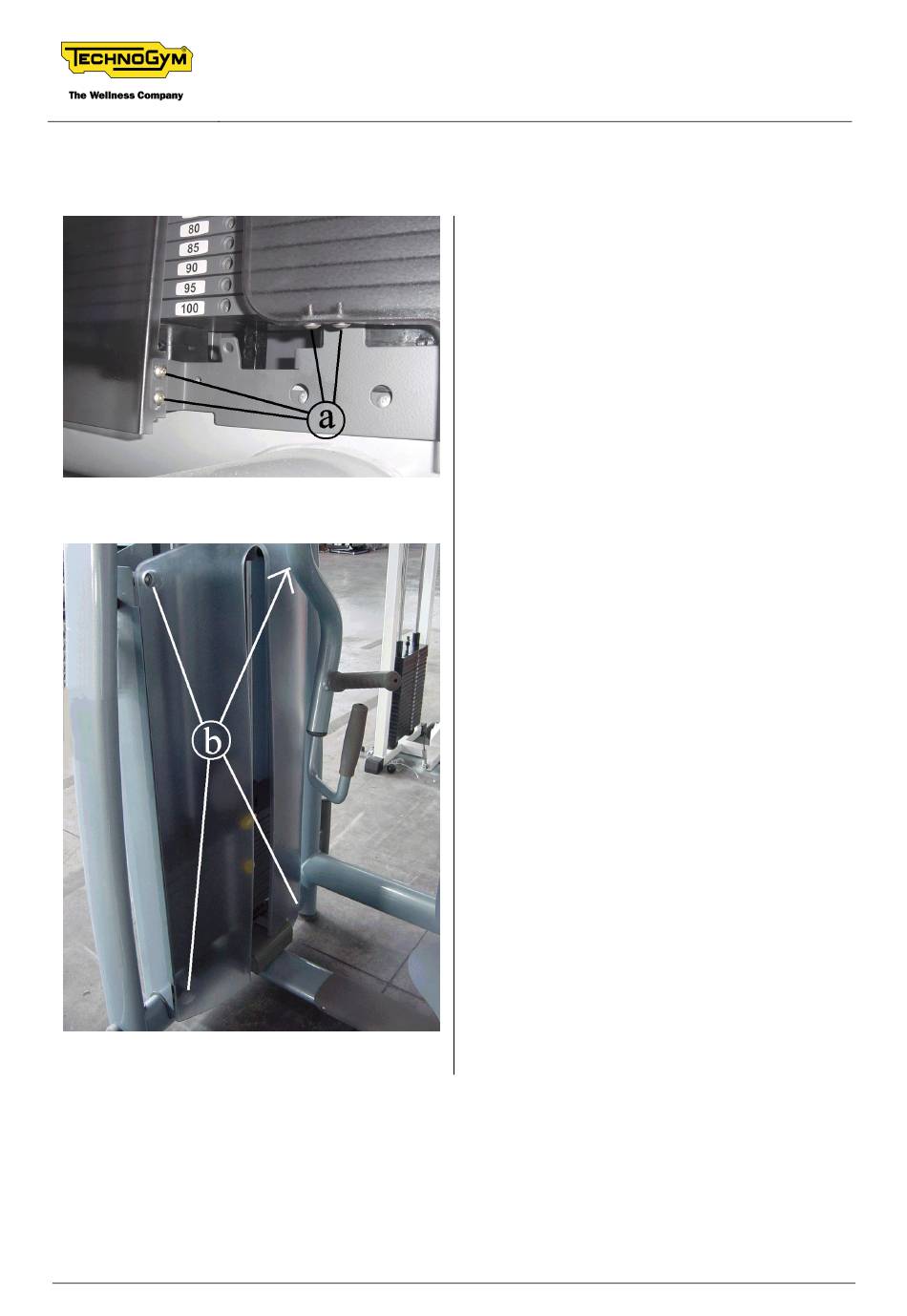

Photo 6.9-1
Photo 6.9-2
Page 6.16
SELECTION LINE: Service & Maintenance Manual - rev. 4.0
1. Back off the 4 screws a which are fixing the
front casing to the encoder support bracket,
using a 4-mm hex wrench.
2. Back off the 4 screws b, using a 5-mm hex
wrench.
3. Remove the front weight stack casing.
Reassemble all the components, carrying out the
procedure in reverse order.
