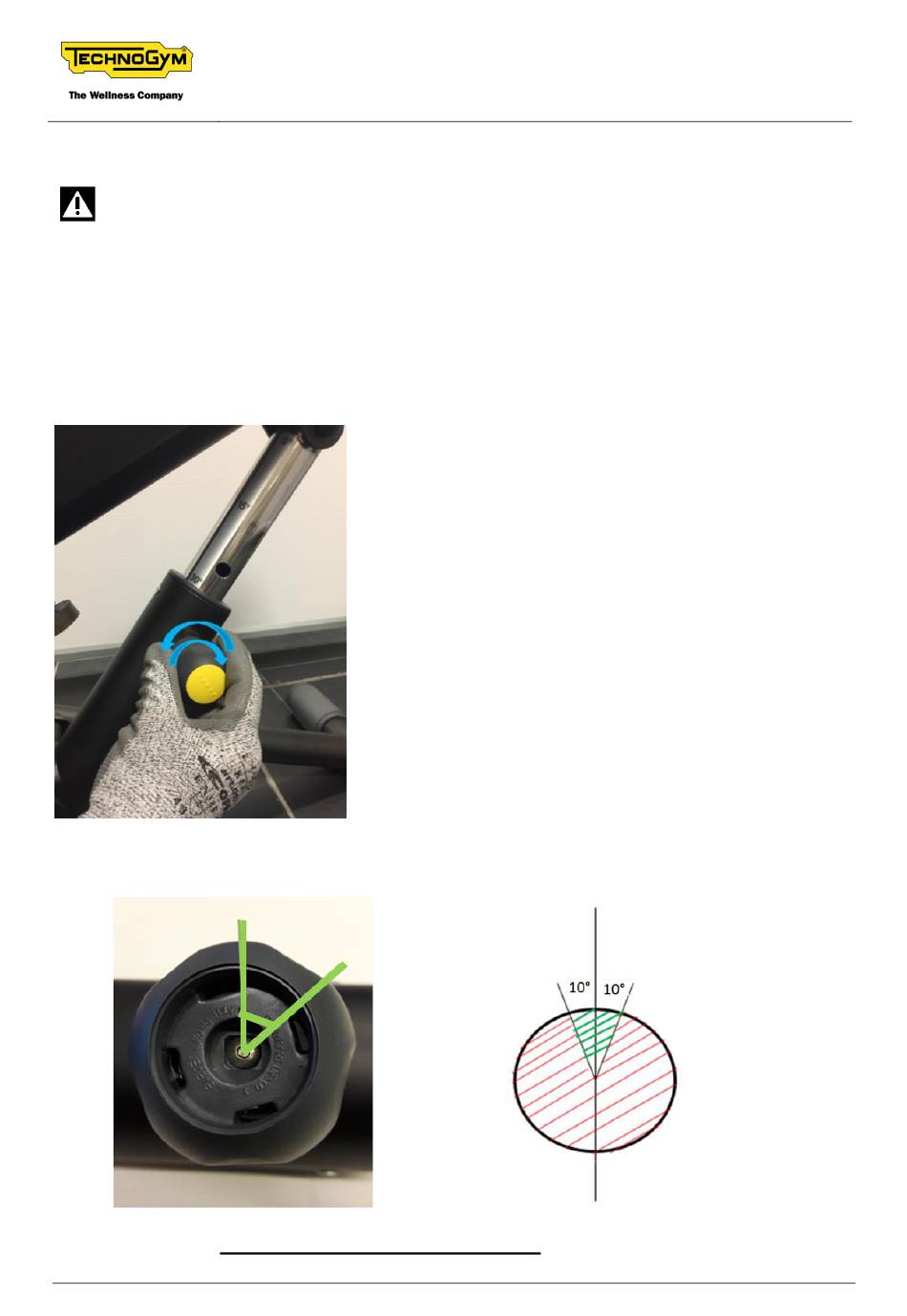

The correct functioning of the backrest adjustment mechanism is the following:
ATTENTION: THE BACKREST COULD FALL DOWN.
- If you lift up the backrest: the pin must move free. The backrest position must be blocked in
correspondence of each selected hole/position.
- If you pull the pin: the backrest must move down and be blocked in correspondence of each selected
hole/position.
- If you tilt the backrest of 30 degrees, selecting the correct position 30° and then you try to turn the
knob clockwise and counterclockwise (see figure below): The knob must rotate within 10 degrees and
the backrest must not fall down.
NOTE: if you turn the knob, the rotation must be within the angle highlighted in figure below, in
correspondence of two the sections. To do this check, remove the yellow cap from the knob.
For more details see functional tests on adjustable benches.
