14 Layout Rules for Two-layer Board


Avoid routing in these areas: BT CHIP, RF, Crystal and Buck area.

The traces of 2-layer board should be routed at the same layer.

The traces must run through the bottom layer, and the traces on the back side should be as
short or concentrated as possible to maintain the integrity of the copper.


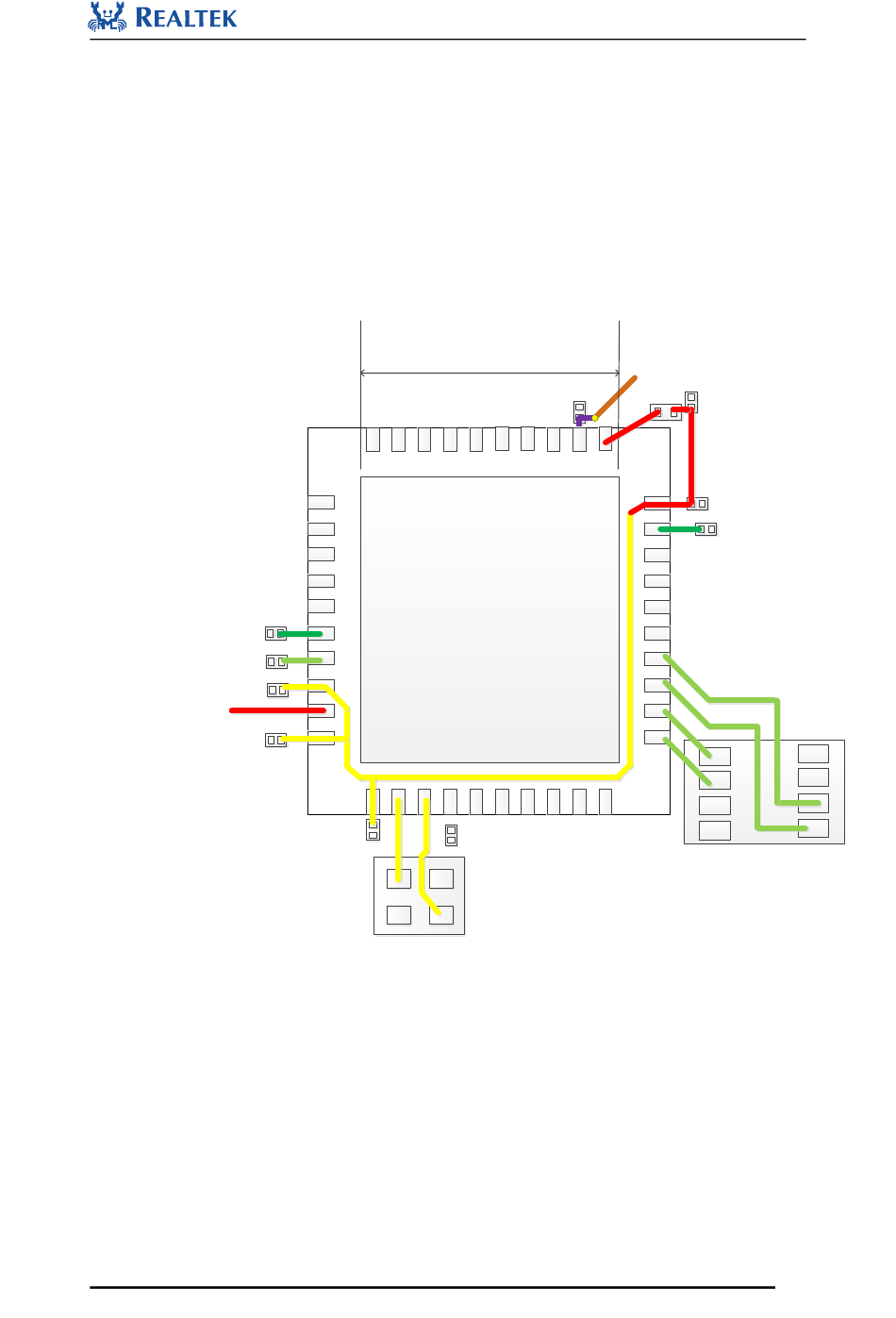

The VDD12 trace can pass through the IC package gap by reducing the EPAD size to
3.6mm.

Other layout guide is mentioned above.
