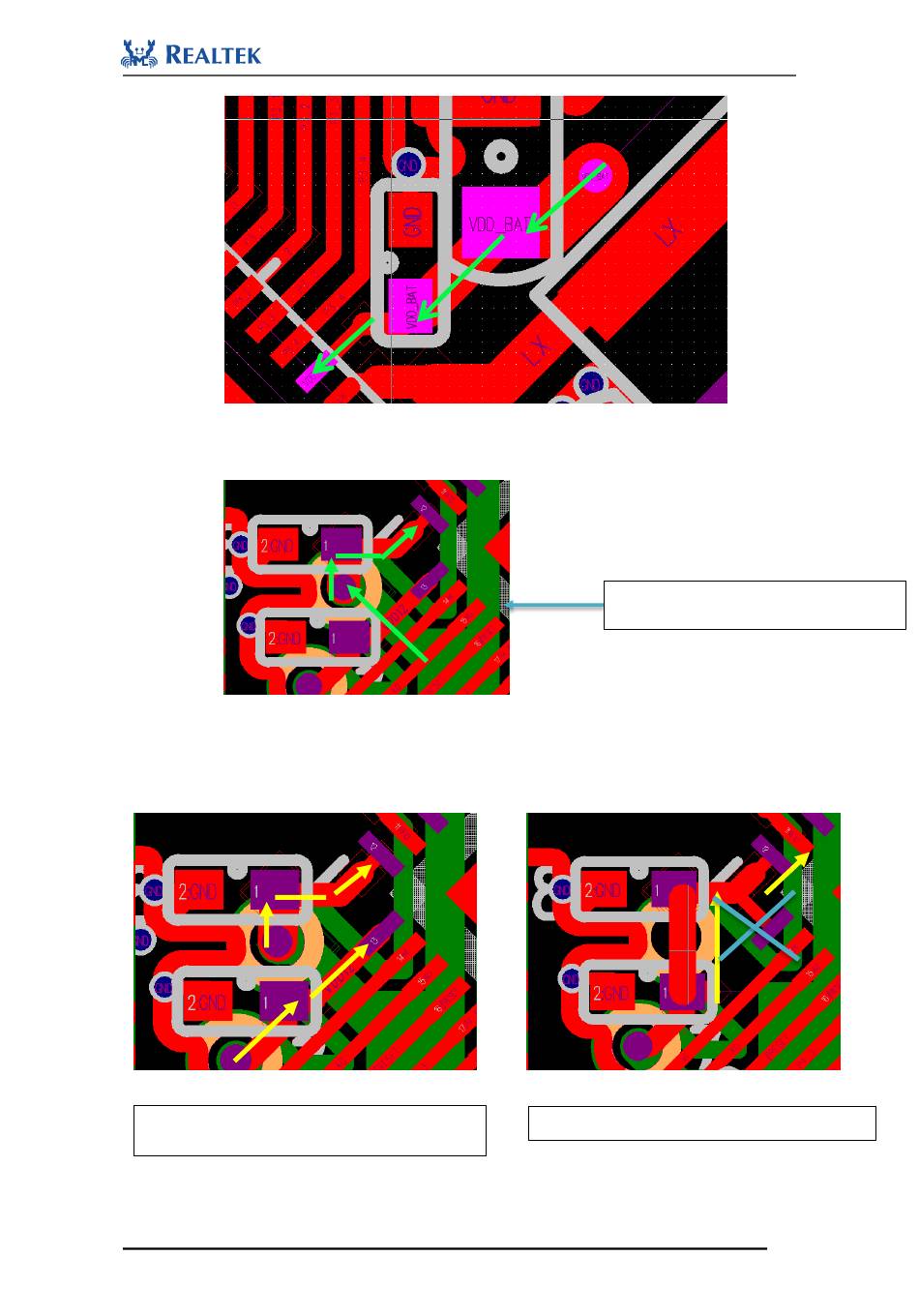

4. The bypass capacitor of the power supply should be placed close to the power pin. All of the
power trace should go through capacitor first, then go into IC, and finally go outside for other
branches.
Capacitor
5. If there are two pins nearby with the same net name, there should be two bypass capacitors,
one for each individual pin and the power trace should be routed separately. Do not use the
NG example.
CORRECT
The capacitor component must connect with CHIP
pin individually.
The bypass capacitors of the VDIGI or VDDIO pins should be placed far away from the 1.2V
6.
power net.
RTL8762C Evaluation Board User Manual
Be sure to follow current flow direction
NG
Do not connect together before reaching the chip.
25
