may be necessary to seek a better PCB maker causing higher cost.

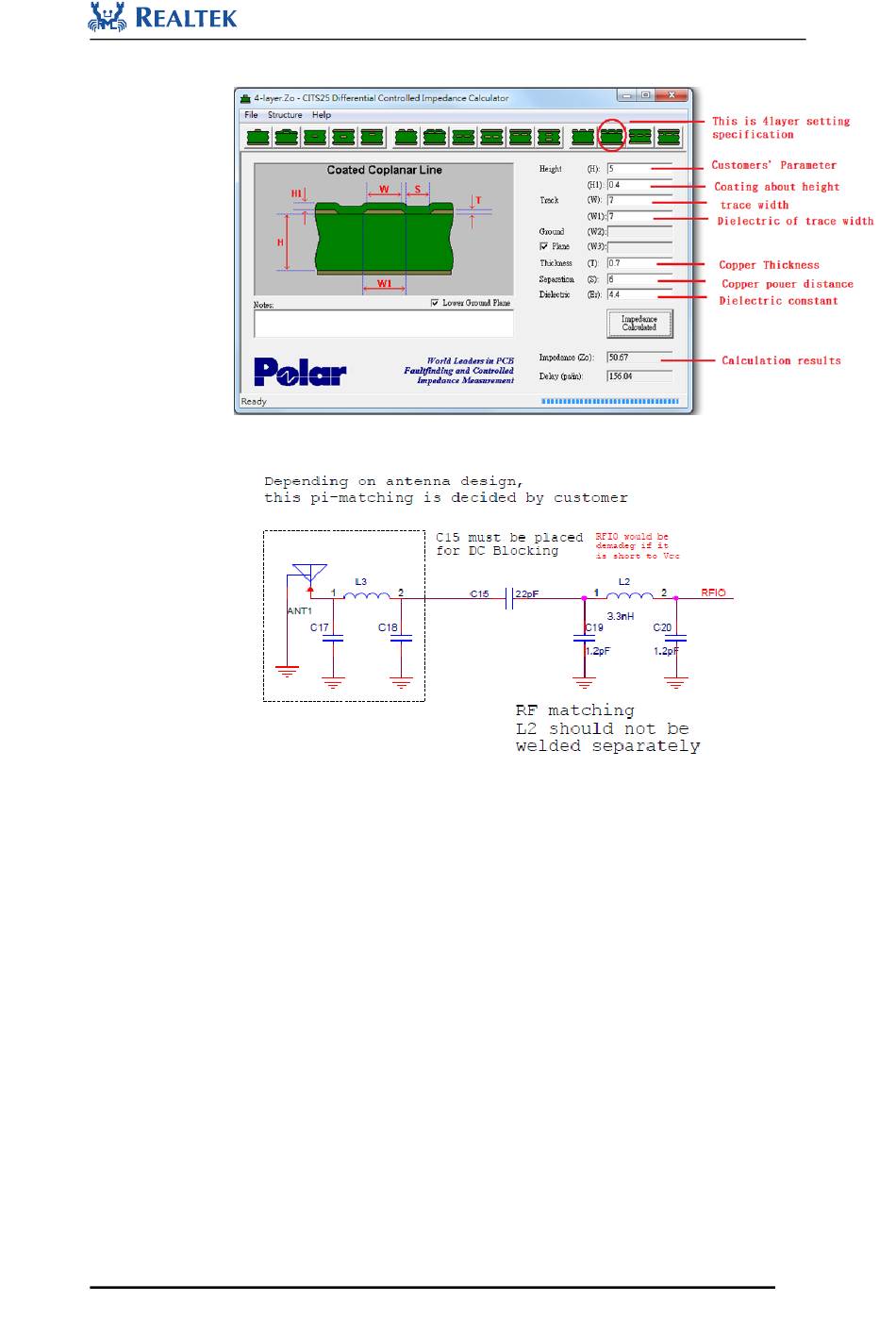

It is suggested that the RF trace should be no less than 8mil to avoid the large variation of RF
impedance.
Communicate with the PCB maker to ensure that the parameters are appropriate.
The RF test point, TP10, is not suggested to be placed on an extra branch. If it is on bottom
layer, via should be added on the path for connection.
The RF matching components must be as close to IC RFIO pin as possible.
RTL8762C Evaluation Board User Manual
27
