5.4.2

Preparing assembly

 Remove the MiniCODER and suitable distance gauge from the original packaging.

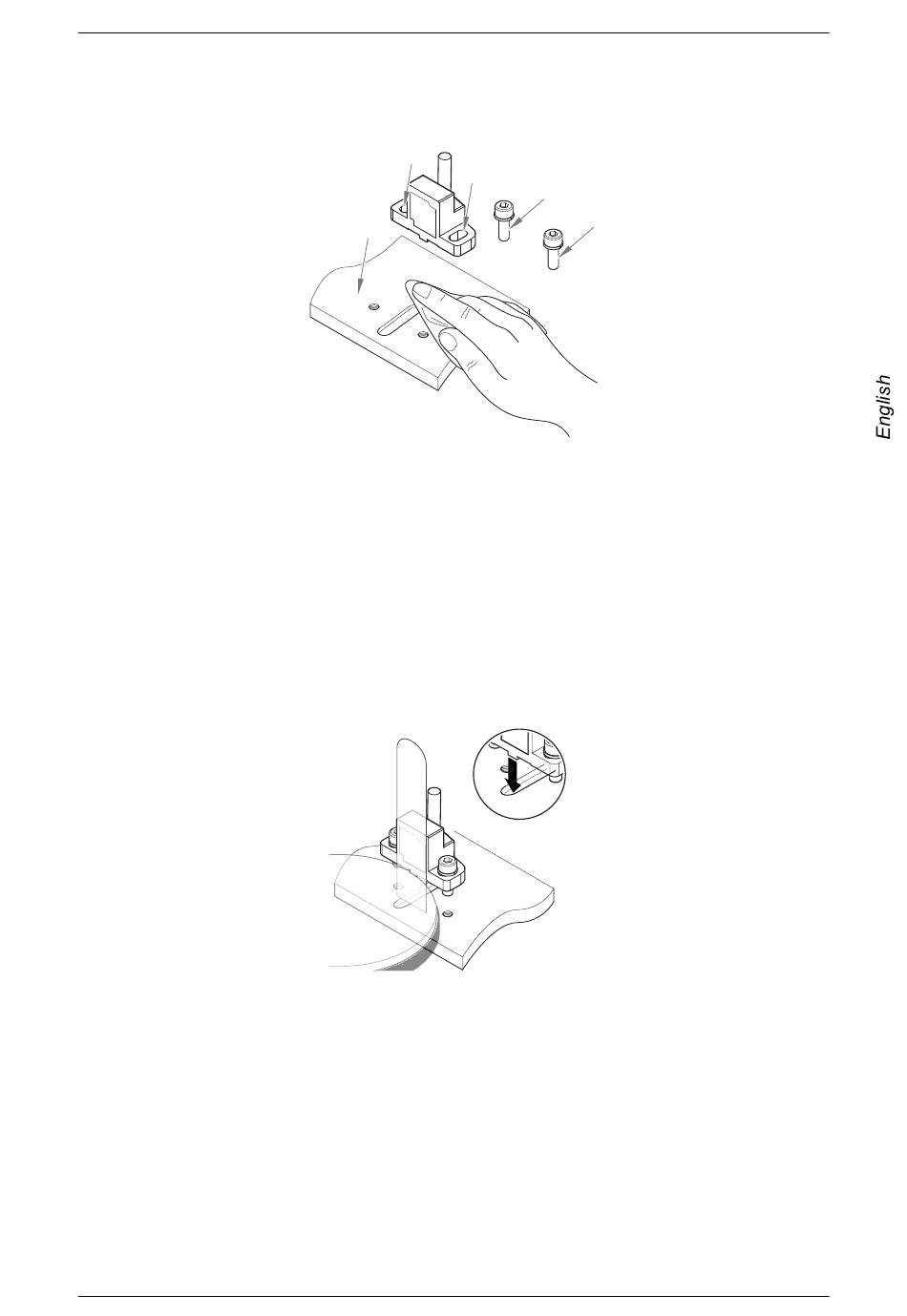

Cleaning the mounting surface

 Thoroughly clean the mounting surfaces on the mounting fixture and the

MiniCODER as well as the fastening elements (screws, spring washers and wash-

ers) to achieve good electrical conductivity.

5.4.3

 Slide spring washers and washers over the threads of the two screws.

 Apply threadlocker to the threads of both screws to prevent them from coming

loose unintentionally.

Positioning and inserting the MiniCODER

 Insert both screws into the slotted holes in the flange.

 Place the distance gauge in the installation space on the target wheel.

 Insert the MiniCODER with the two guide noses into the guide groove of the

mounting surface and push the MiniCODER against the distance gauge.

GEL 2444M

Mounting and connecting the MiniCODER

5 Mounting and connection
