3 Description

3 Description
3.1

General

MiniCODER und ferromagnetic measuring scale form a measuring system. The
MiniCODER scans the ferromagnetic measuring scale without contact and detects
the direction of rotation, speed and position.
Prerequisites for proper functioning of the measuring system:
● The MiniCODER must match the module, the number of teeth, the reference
mark and the width of the measuring scale.
● The MiniCODER must be mounted symmetrically on the measuring scale.
● A defined air gap must be maintained between the MiniCODER and the measur-
ing scale.

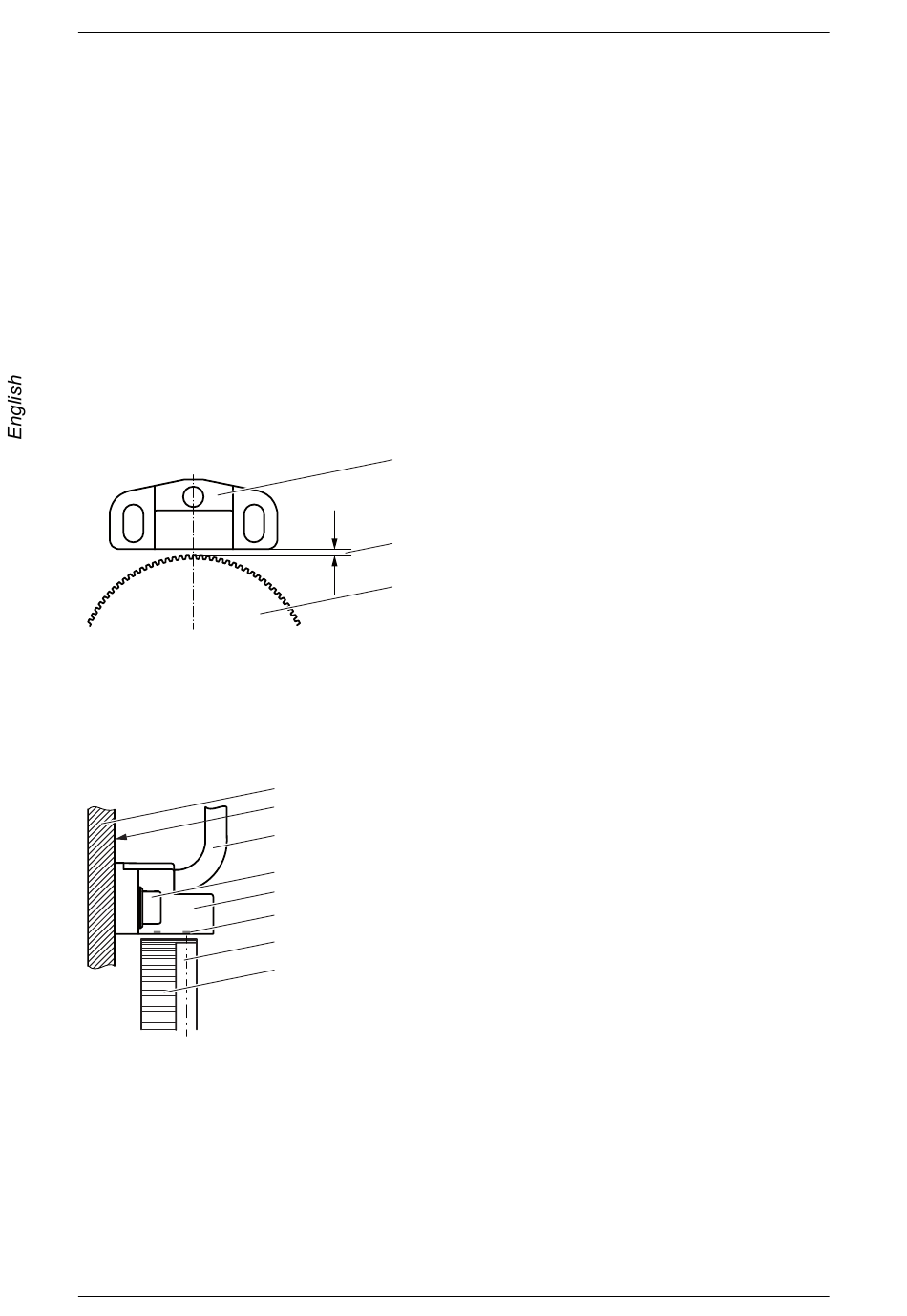

Measuring system
Installation position of MiniCODER and target wheel
Installation position of measuring system
70
General
1
2
3
1a
1b
2a
3
2b
2c
4a
4b
1 MiniCODER
2 Air gap
3 Measuring scale
(not included in the scope of sup-
ply)
Machine/System
1a Mounting device
1b Mounting surface
MiniCODER
2a Connection cable
2b Housing
2c Sensor elements
Accessories
3 Screw M3
Target wheel (partial view)
4a Reference track (T
4b Signal track (T
Sig
Lenord+Bauer
)
Ref
)
GEL 2444M
