3 Description
3.3

Description of GEL 2444M

The MiniCODER transmits the output signals via a digital interface
(Mitsubishi High Speed Serial Interface) and can be connected directly to the speci-
fied Mitsubishi higher level control systems (possible applications
Data transmission only takes place upon request. The MiniCODER decodes incom-
ing requests (RQ+/RQ-) from a higher level control system and then sends the re-
quested data (Data+/Data-) to the higher level control system.
3.3.1

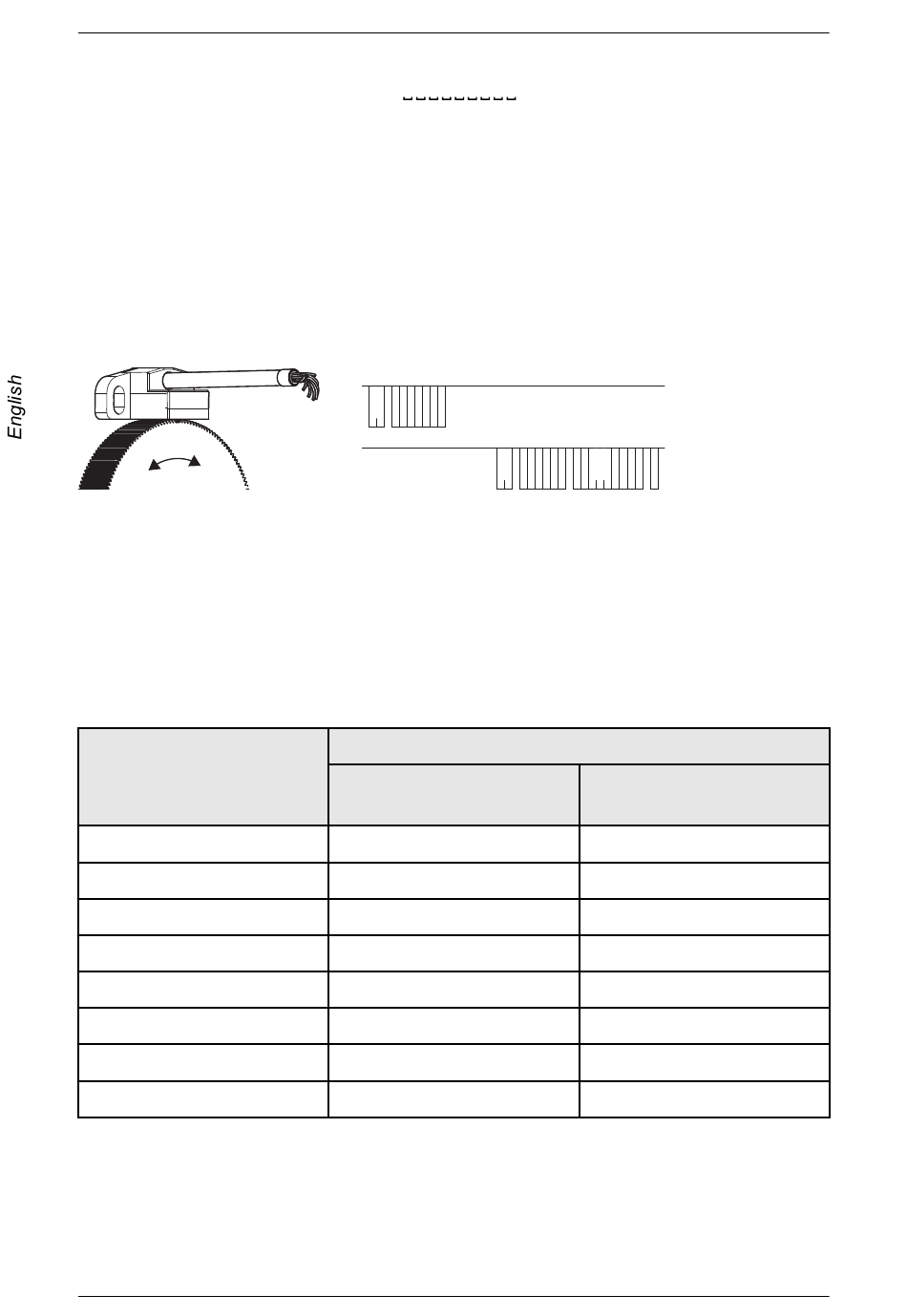

Direction of rotation-dependent output signals

The output signals depend on the direction of rotation of the target wheel.
1
2
Output signals
Directions of rotation
1 Clockwise direction of rotation → Counter value increasing
2 Counterclockwise direction of rotation → Counter value decreasing
3.3.2

Error messages

Alarm and warning table
Designation
(ID: 9F)
Signal error
Amplitude warning
EEPROM error
Undervoltage
Hardware error
Warning overspeed
Meter error
Temperature warning
72
Description of GEL 2444M
MiniCODER connected
with CN2
2B
2C
2D
2E
48
49
4A
4B
␣␣␣␣␣␣␣␣␣
→ page
RQ
Data
Alarm number
MiniCODER connected
with CN3
1B
1C
1D
1E
27
28
29
2A
Lenord+Bauer
60).
GEL 2444M
