Setting Up Oracle Roving Edge Device

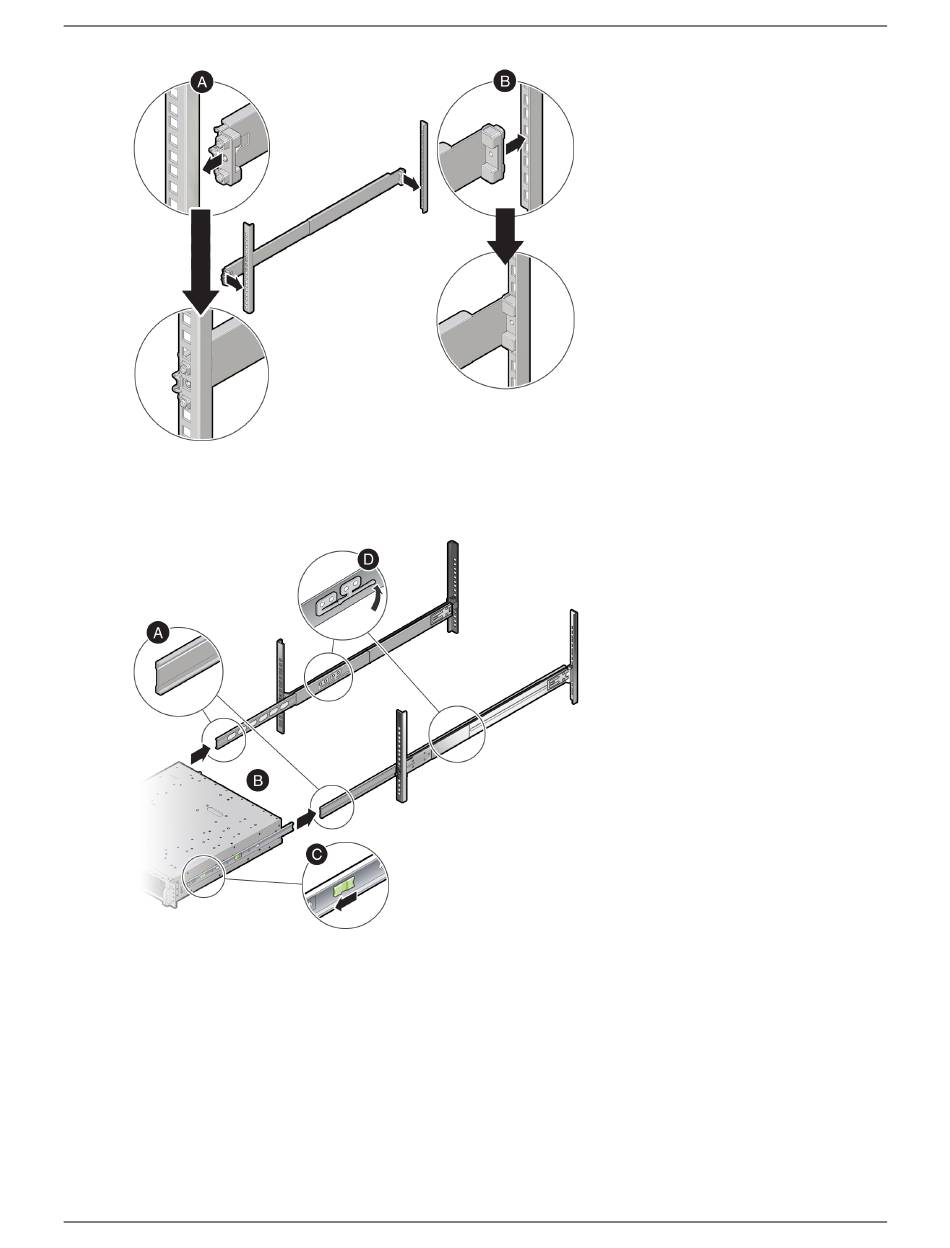

a. Snap the front slide-rails into the front rack posts.
b. Adjust the rear slide-rails to reach the rear rack posts, then snap the slide-rails into the rear rack posts.
6. Install the device into the slide-rails.
a. Extend the inner-front slide-rails.
b. Slide the mounting brackets into the extended slide-rails until the device is securely supported by the slide-
rails, but is extended from the rack.
c. Pull the green lever forward to enable the mounting brackets to slide fully into the slide-rails.
d. Lift the slide-rail stop lever and push the device completely into the rack.
7. Install two M4 screws to the front of the device.
