- Page 1 Roving Edge Device Setup Guide July 29, 2024...
-
Page 2: Table Of Contents
Contents Setting Up Oracle Roving Edge Device..............3 Receive and Inspect the Shipment........................3 Remove the Ruggedized Case End-Caps......................6 Mount the Device in a Rack..........................8 Cable the Device..............................11 Set Up Terminal Emulation..........................12 Unlock the Device.............................. 13 Configure Network Parameters.......................... 13 Download the Root CA Certificate........................14... -
Page 3: Setting Up Oracle Roving Edge Device
Setting Up Oracle Roving Edge Device Set up the Roving Edge Device Compute, GPU, and Storage shapes at your location, and configure it to connect to your Oracle Cloud Infrastructure tenancy so that it serves as an extension of your tenancy. - Page 4 Setting Up Oracle Roving Edge Device Important: Report any damage or concerns to Oracle using a Service Request ticket. See Getting Help and Contacting Support My Oracle Support. Obtain Shipment Details Perform these steps to gather information you can use to inspect the shipment and ensure a tamper free device.
- Page 5 For devices with ruggedized cases, the power cord is in a pouch inside the rear of the case. Roving Edge Device Rear Panel Use the following illustration to familiarize yourself with the Roving Edge Device. Note: If your device is in a ruggedized case, you can view the rear panel after you...
-
Page 6: Remove The Ruggedized Case End-Caps

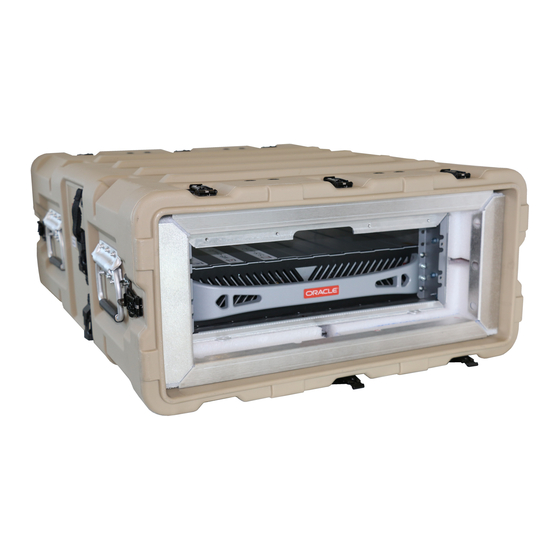

Mount the Device in a Rack on page Remove the Ruggedized Case End-Caps If the Roving Edge Device is in a ruggedized case, you must remove the front and rear end-caps to access the cable connectors. The end-caps remain removed during operation. Caution: Don't remove the Roving Edge Device from the case. - Page 7 2. Open all 16 wing-turn latches on the front and rear of the case by lifting the latch then turning the latch counterclockwise. 3. Remove the front and rear end-caps. 4. Remove the cable pouch, and extend the end-cap hooks. Oracle Cloud Infrastructure Roving Edge Device Setup Guide...
-
Page 8: Mount The Device In A Rack
11 Mount the Device in a Rack Use these instructions if you plan to mount your Roving Edge Device in a standard rack. The optional rackmount kit can be used to install the device in a four-post, 19-inch standard rack. - Page 9 Secure the mounting brackets by installing one M4 screw to each side of the device. 3. Identify the location in the rack where you want to place the device. Roving Edge Device requires two rack units (2U) of vertical space. Caution: To reduce the risk of personal injury, stabilize the rack cabinet, and if available, extend the anti-tilt bar before you install the server.
- Page 10 Pull the green lever forward to enable the mounting brackets to slide fully into the slide-rails. d. Lift the slide-rail stop lever and push the device completely into the rack. 7. Install two M4 screws to the front of the device. Oracle Cloud Infrastructure Roving Edge Device Setup Guide...
-
Page 11: Cable The Device
Cable the Roving Edge Device on page 11 Cable the Roving Edge Device Use the following diagram to locate connectors on the rear of the Roving Edge Device 2 as you connect cables in this procedure. Note: To meet MIL-STD-461 Rev G RE102 requirements, all Ethernet network cables attached to the Roving Edge Device must be CAT8 rated. -
Page 12: Set Up Terminal Emulation
12 Set Up Terminal Emulation Your initial communication with the Roving Edge Device is made through the serial console that's connected to a controlling host computer, such a laptop. The controlling host must have terminal emulation software that's configured as described in this section. -
Page 13: Unlock The Device
Setting Up Oracle Roving Edge Device Unlock the Device Roving Edge Device arrives in a locked state. You must unlock the device using an unlock passphrase when you power on the device. The passphrase was created when you created the device node, as described in... -
Page 14: Download The Root Ca Certificate
Download the Root CA Certificate Download the root CA certificate from the Roving Edge Device to your host. The host is the system you plan to use to manage services on the device. The root CA certificate acts as a credential to validate the identity of the host, and enables communication between the device and host. -
Page 15: Reinstall The Ruggedized Case End-Cap
The certificate appears in the list of certificate authorities. Windows 1. Use the following command to download the root CA certificate from a Roving Edge device: execute command - openssl.exe s_client -connect <RED_ip_address>:8015 - showcerts 2. - Page 16 Setting Up Oracle Roving Edge Device 2. Replace the end-cap. 3. Secure the end-cap by latching eight wing-turn latches (turn clockwise, then close). Oracle Cloud Infrastructure Roving Edge Device Setup Guide...
- Page 17 Setting Up Oracle Roving Edge Device What's Next • Roving Edge Infrastructure documentation home page • Getting Started with Roving Edge Infrastructure Oracle Cloud Infrastructure Roving Edge Device Setup Guide...
