Step 2: Install The Battery And Replace The Battery Cover - HP iPAQ Data Messenger Product Manual

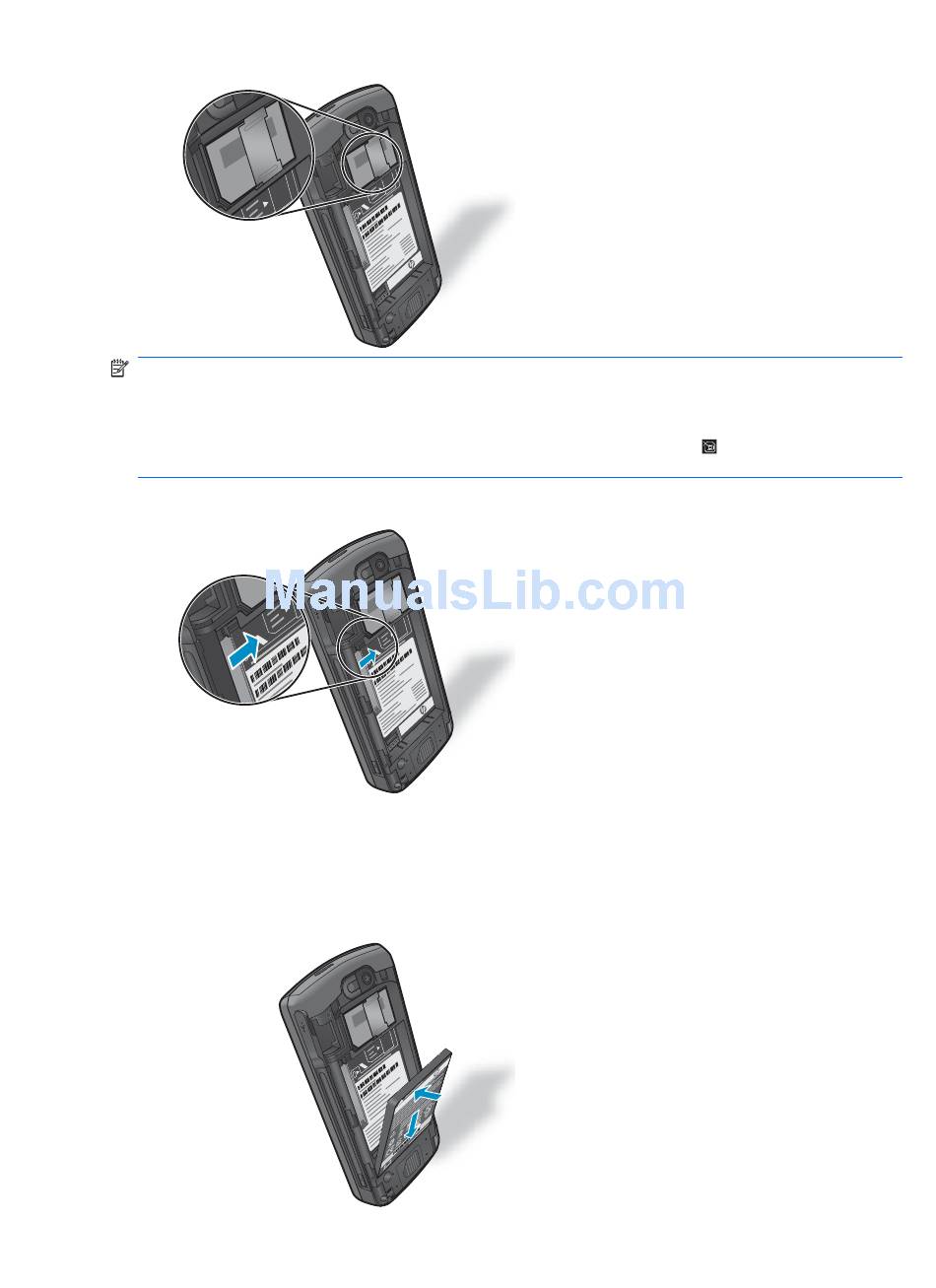

3. Slide the SIM card into the SIM card slot.
NOTE:
If the battery is already inserted, remove it before inserting the SIM card. Also, make sure that the
metal contacts are facing down and the notched corner is in the correct position. If the SIM card is
not correctly inserted in the HP iPAQ and you turn on the HP iPAQ, the
icon appears in the title bar at the upper-right corner of the screen.
4. Slide the switch, located over the battery, towards the right to lock the SIM card.

Step 2: Install the battery and replace the battery cover

1. Align the battery connectors on the battery with the housing pins in the battery compartment, and
insert the battery.
8 Chapter 4 Set up your HP iPAQ
A service provider supplies the SIM card.
(No SIM card installed)
