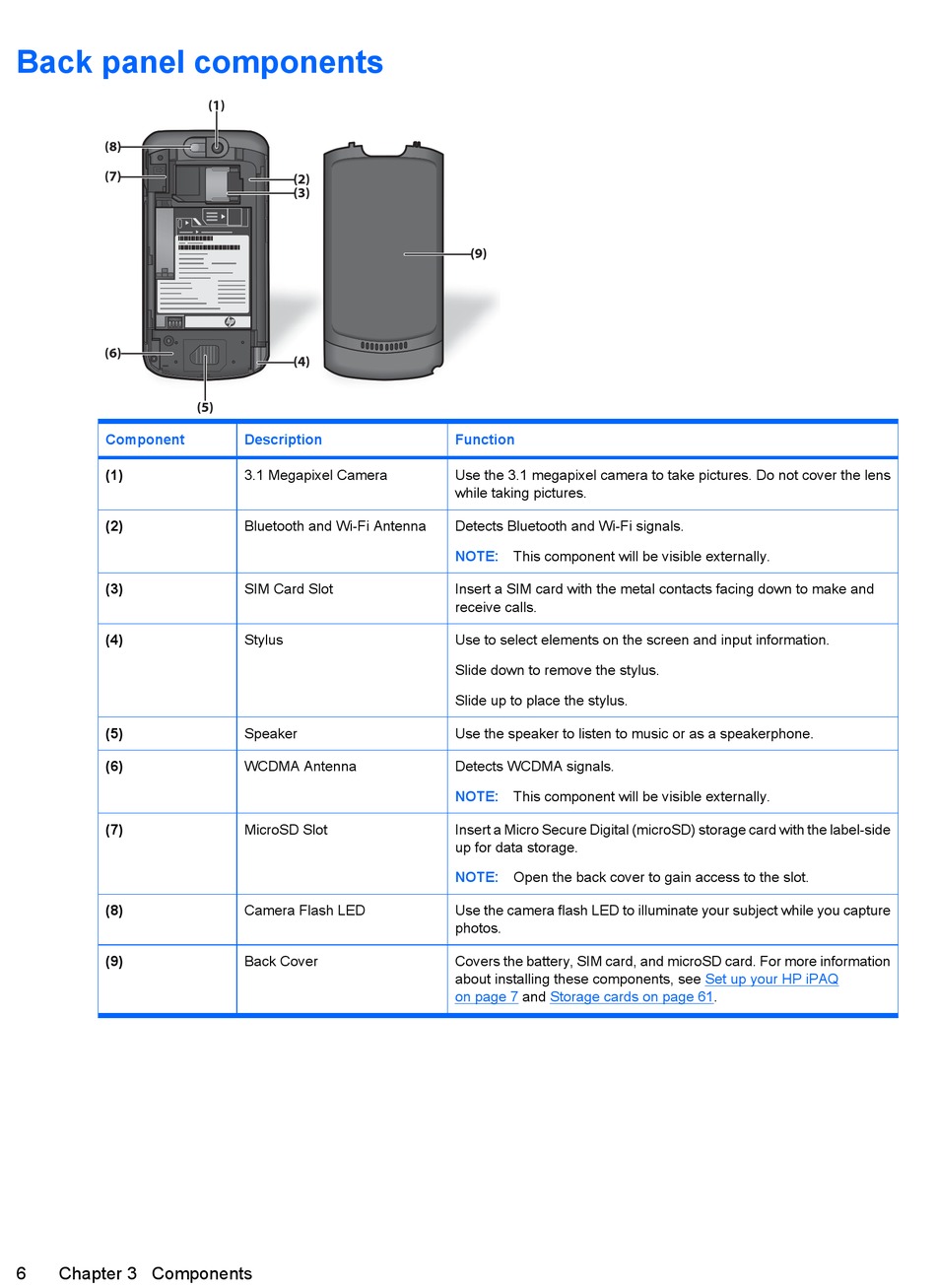

Back panel components
(8)
(7)
123456789
1234567890123456
(6)
Component
(1)
(2)
(3)
(4)
(5)
(6)
(7)
(8)
(9)
6
Chapter 3 Components
(1)
(2)
(3)
(4)
(5)
Description
3.1 Megapixel Camera
Bluetooth and Wi-Fi Antenna
SIM Card Slot
Stylus
Speaker
WCDMA Antenna
MicroSD Slot
Camera Flash LED
Back Cover
(9)
Function
Use the 3.1 megapixel camera to take pictures. Do not cover the lens
while taking pictures.
Detects Bluetooth and Wi-Fi signals.
NOTE:
This component will be visible externally.
Insert a SIM card with the metal contacts facing down to make and
receive calls.
Use to select elements on the screen and input information.
Slide down to remove the stylus.
Slide up to place the stylus.
Use the speaker to listen to music or as a speakerphone.
Detects WCDMA signals.
NOTE:
This component will be visible externally.
Insert a Micro Secure Digital (microSD) storage card with the label-side
up for data storage.
NOTE:
Open the back cover to gain access to the slot.
Use the camera flash LED to illuminate your subject while you capture
photos.
Covers the battery, SIM card, and microSD card. For more information
about installing these components, see
on page 7
and
Storage cards on page
Set up your HP iPAQ
61.
