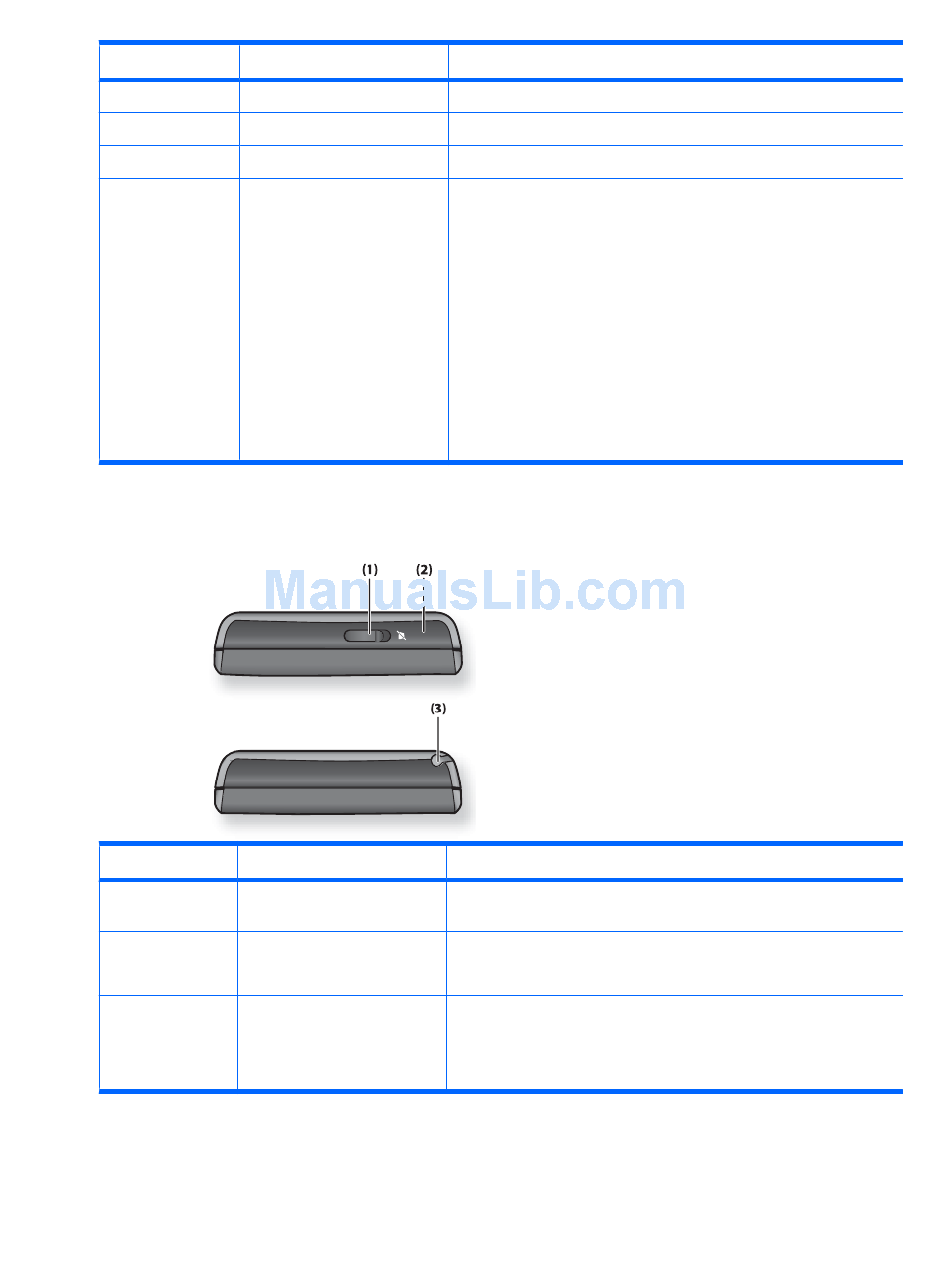

Top and bottom panel components

Component
(1)
(2)
(3)
4 Chapter 3 Components
Description
Windows Key
Microphone
Answer/Send Key
LEDs
Description
Ringer/Sound Switch
GPS Antenna
Stylus
Function
Press to open the Start menu on the screen.
Use for phone conversations, voice notes, or voice commands.
Press to answer a call, send an SMS, or view the Dialer screen.
View to check the battery, network, or device status.
● Solid red – Charging
● Flashing red
◦
Continuous – Low battery
◦
3 times only – Unable to charge
◦
3 times, repeating every 5 seconds – Battery temperature
too high
●
Solid green – Battery fully charged and connected to power
source
●
Flashing amber – Network not detected or SIM card missing
Function
Use to switch off incoming call rings and system notification alert
sounds.
This component detects GPS signals.
NOTE: This component will not be visible externally.
Use to select elements on the screen and input information.
Slide down to remove the stylus.
Slide up to place the stylus.
