EVALUATION BOARD HARDWARE GUIDE

HARDWARE OVERVIEW

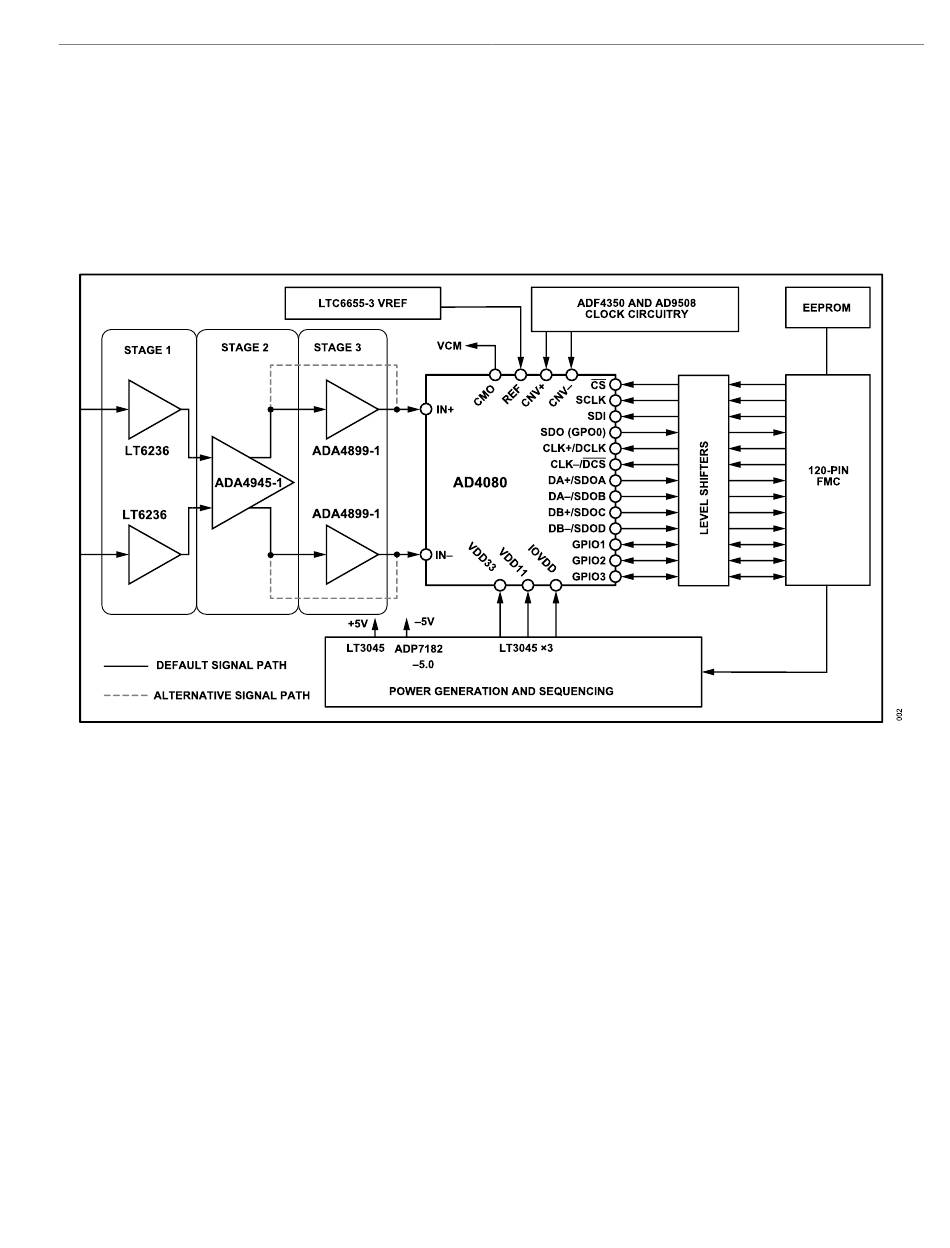

A simplified block diagram of the EVAL-AD4080-FMCZ hardware
is shown in Figure 2. This evaluation board showcases the perform-
ance and features of the AD4080
companion components.
The EVAL-AD4080-FMCZ enables simple evaluation of the
AD4080. All circuitry necessary to operate the AD4080 is included
analog.com
and highlights the recommended
Figure 2. Simplified Block Diagram of the EVAL-AD4080-FMCZ
on the EVAL-AD4080-FMCZ. See the
Voltage Reference section, Power Supplies
and Data Clock Generation Circuit
section for detailed specifics on each circuit block shown in
2. For those blocks that can be modified to achieve different config-
urations, see the Supported Configurations
details on how to implement these changes.
EVAL-AD4080
Analog Input Circuit section,
section, Conversion
section, and Digital Interface
Figure
section for additional
Rev. 0 | 3 of 19
