EVALUATION HARDWARE SETUP PROCEDURE

The following procedure must be followed to get the hardware
ready for evaluation:
1. Insert the SD card from the EVAL-AD4080-FMCZ kit into the SD
card slot (J12) of the ZedBoard.
2. Ensure that the ZedBoard boot configuration jumpers (JP7 to
JP11) are set as shown in

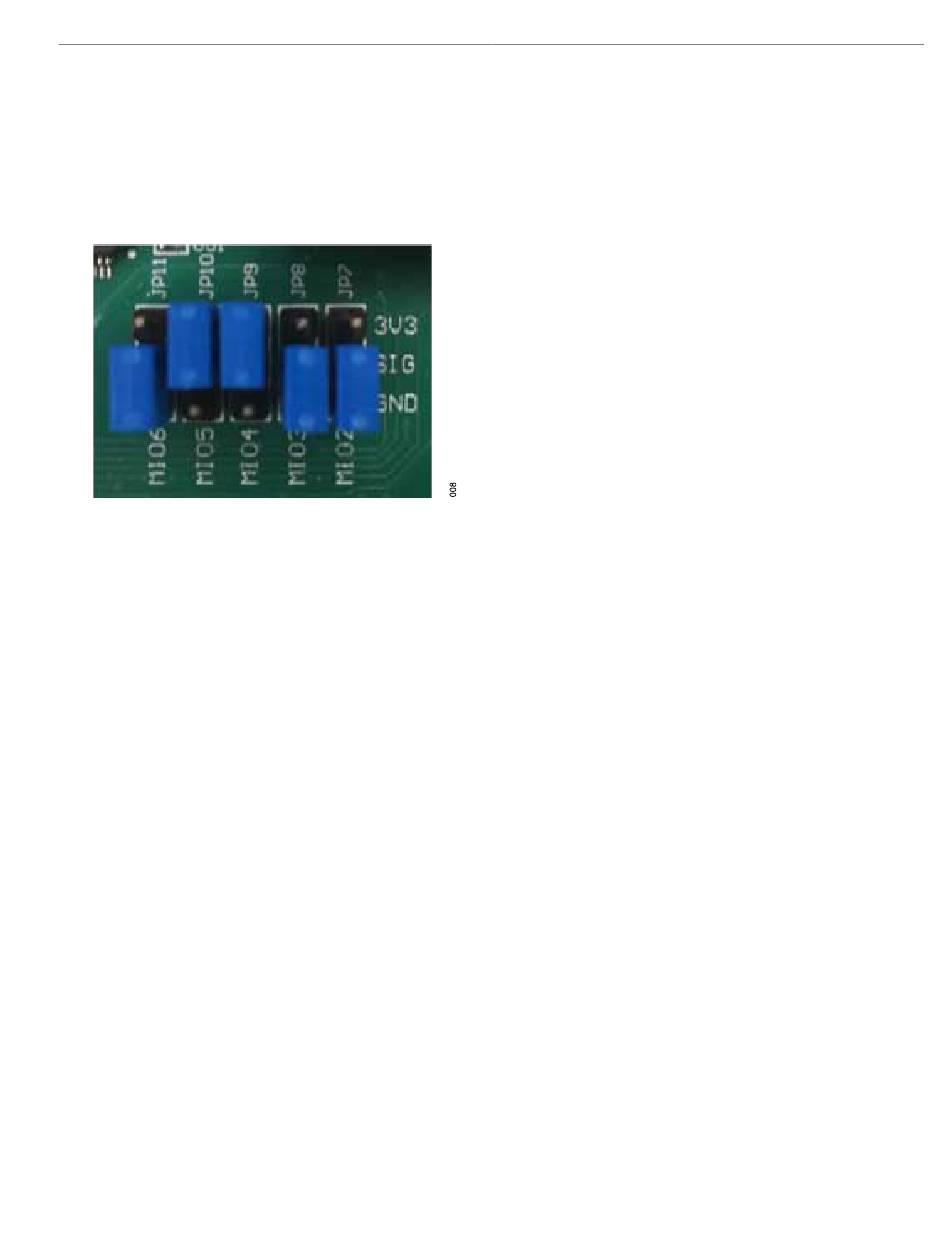

Figure 8. ZedBoard JP7 to JP11 Settings for the SD Card Mode
3. Ensure that the VADJ SELECT jumper (J18) is in the 2V5
position.
4. Connect the FMC connector (P3) of the EVAL-AD4080-FMCZ
to the FMC connector (J1) of the ZedBoard.
5. Connect the 12 V power supply included in the ZedBoard kit
to the DC barrel jack (J20) of the ZedBoard, one USB cable
between the PC and the USB on the go (OTG) connector
(J13), and the other USB cable between the PC and the USB
universal asynchronous receiver-transmitter (UART) connector
(J14).
6. Slide the power switch (SW8) to the ON position to power up
the ZedBoard and evaluation hardware.
a. If using any external power supplies for the evaluation
hardware, turn these supplies on with the ZedBoard.
7. The hardware is now ready to be used through the
Software.
