To power up the Single-Height or Double-Height Chassis:
1. Insert the 3-pin connector on the 12V power supply into the Power input jack at the rear of the
Makito X.
2. Connect the power cord to the power supply and plug the cord into a grounded AC power source.
The status LED will start blinking green, indicating that the encoder is booting up.
3. Wait until the Status LED stays solid green, indicating that the encoder is ready for operation.
Single-Height Chassis
Single-Height Chassis

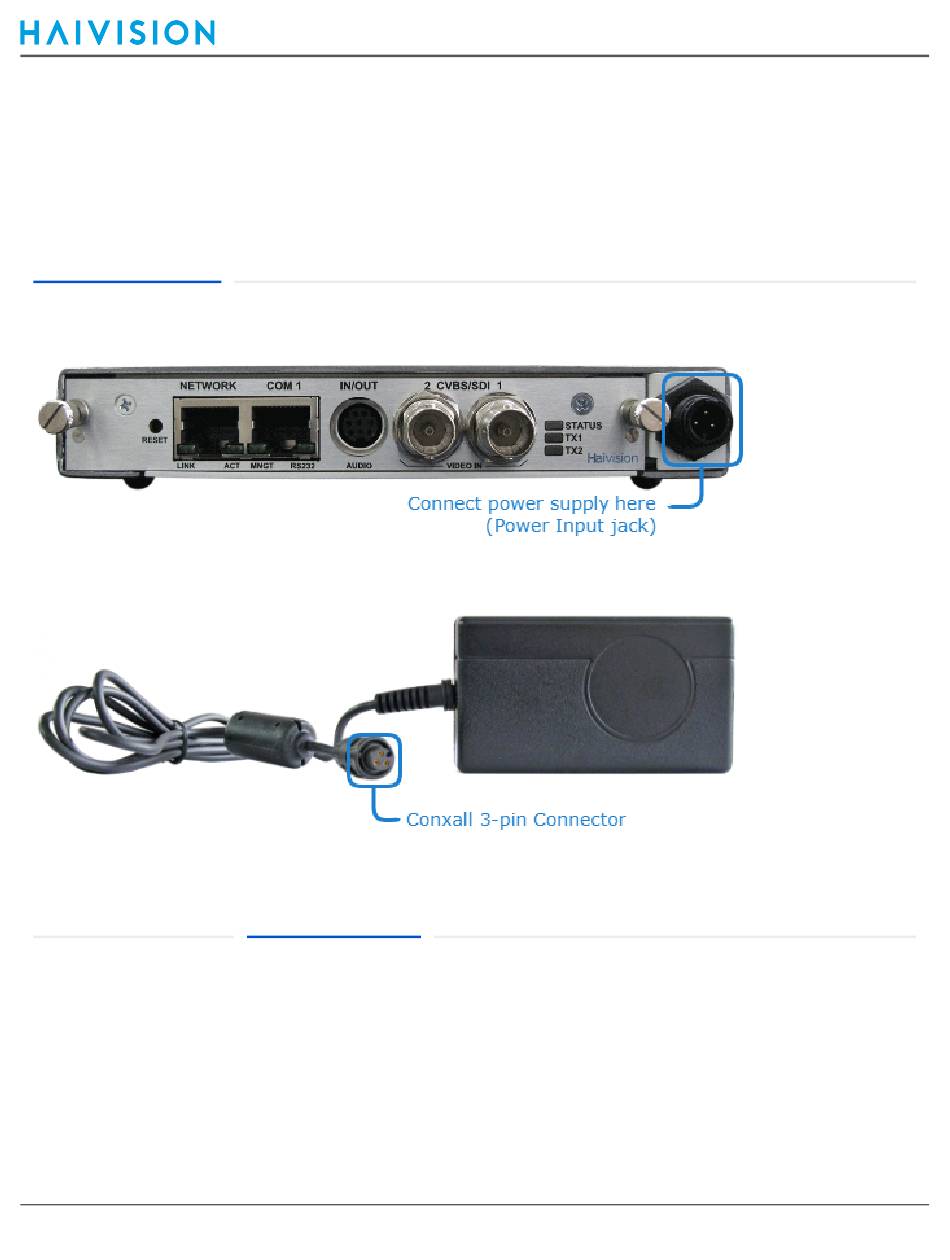

Rear View (#S/B-292E-HDSDI2) showing Conxall 3-pin Locking Connector
Power Adapter 12VDC with Conxall 3-pin Connector
Single-Height Chassis
Dual-Height Chassis
Rear View (Makito X HEVC Encoder #S-292E-SDI2-HEVC)
Makito X Encoder 2.2
Makito X Encoder Quick Start Guide
Dual-Height Chassis
Dual-Height Chassis
