DVI Video Input
• Component Analog / Digital Video/Computer Graphics:
Use the DVI-I Input connector.

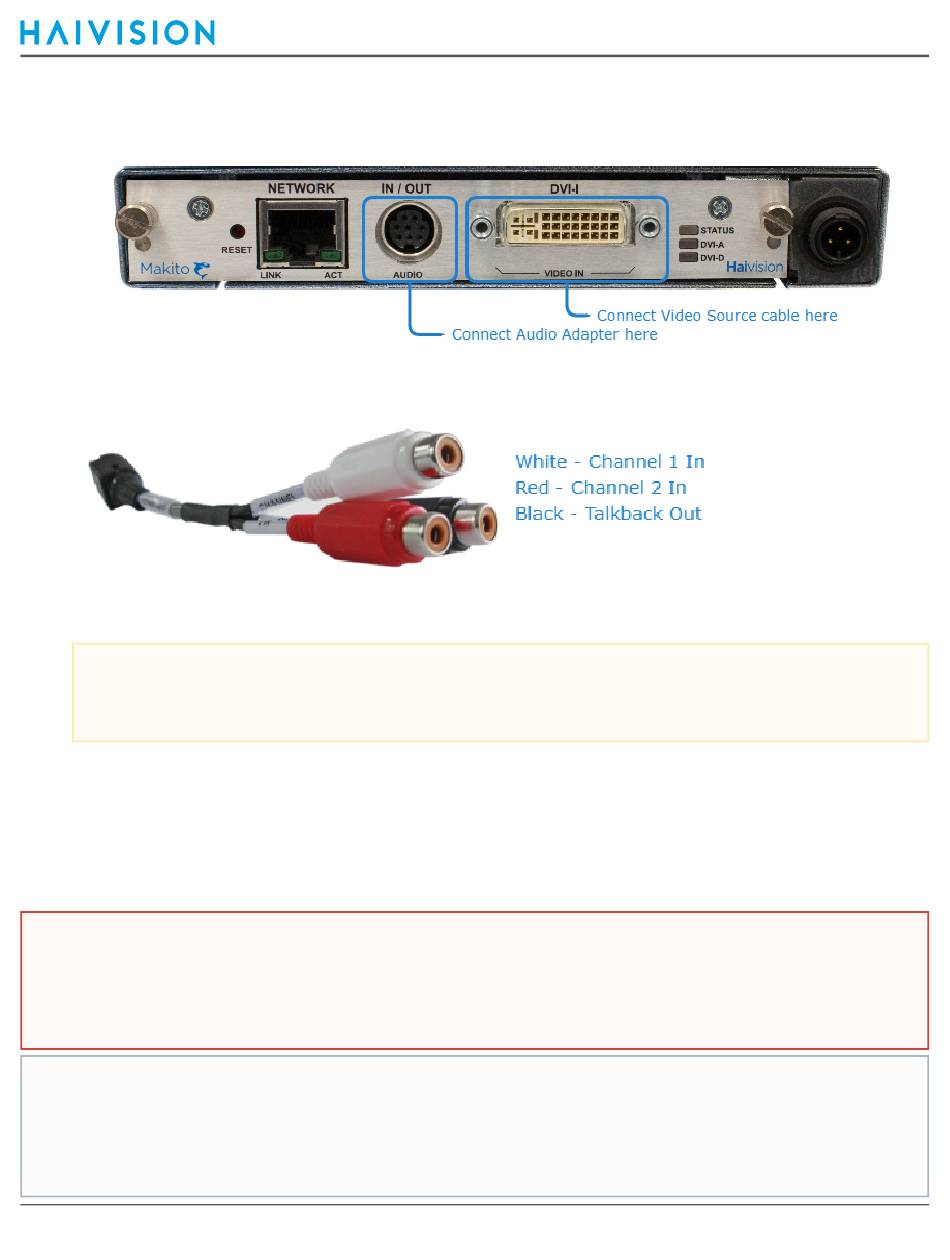

2. Analog Audio Input: Connect your audio source cable to the Makito X's audio input, using the RCA
female to audio adapter (unbalanced shown below).
 Note
A balanced audio cable adapter is available from Haivision upon request. Please contact your
sales representative or email Haivision at:
The Makito X also supports Serial Digital Interface (SDI) embedded audio format. Selection
between Analog (the default) and SDI digital audio is done from the Web interface
(see Configuring Audio
Powering Up the Encoder
Once all the cables are in place, the encoder is ready to be powered up.
 Caution
To prevent damage to the Makito X and/or power supply, be sure to connect the power supply to
the chassis first and then to the AC source.
Always use the AC power cord and power supply provided with the unit. The single and dual-
height chassis have different power supply units and chassis connectors.
 Important
There is no power switch on the Makito X appliance. The power is automatically on when the unit is
plugged in. When using the AC/DC power adapter, the power supply cord is used as the main
disconnect device. Ensure that the AC socket outlet is located near the equipment and is easily
accessible.
Makito X Encoder 2.2
Makito X Encoder Quick Start Guide
Encoders) or using the command line interface (CLI) audenc command.
