Makito™ XH Encoder Installation Guide

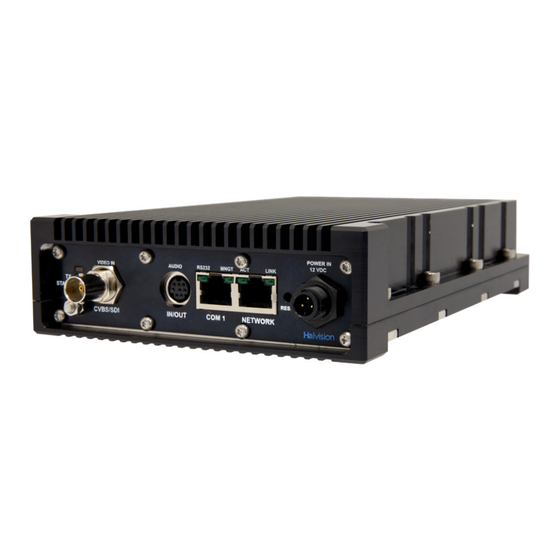

This Installation Guide summarizes the basic steps required to install and configure the Makito XH Encoder (single
chassis, as shown below) to stream to your compatible decoding device. Please refer to the Makito X User's Guide
or the online help (available from the Web Interface) for detailed information.
NOTE
We recommend that you familiarize yourself with this Installation Guide before installing your
Makito XH in a remote location.
The Makito XH is a semi-ruggedized, industrial version of the
Makito X encoder, available in DVI, single and dual SDI input,
and dual output configurations. It is designed for fan-less
operation in harsh/hot environments, where it can survive
exposure to a limited range of temperatures and other
environmental factors (e.g. humidity, dust, etc).
The Makito XH is resistant to a limited amount of shock and vibration, and can tolerate variations in temperature
(from 0 to 70 °C), humidity (5% to 95%, non-condensing), and air pressure (from 300 to 1015 kPa). In all other
aspects (video/audio encoding, streaming, management, network/serial port and metadata control) the Makito
XH is identical to its non-ruggedized Makito X counterparts.
Applications
The Makito XH is suited for ISR activities in remote locations, where it should be mounted within an
environmental enclosure for additional protection. Typical applications include surveillance towers with security
cameras that can feed an SDI signal to Makito XH units, which encode the video and stream it to a remote
monitoring location.
NOTE
While the Makito XH Encoder has a real-time clock (RTC), it has no RTC battery. In the event of a
power loss, the system date and time settings are lost. For any application with a requirement for stand-
alone synchronized system timing (or derived time codes), an NTP server should be used to provide time
and date synchronization. Refer to the Makito X User's Guide for details.
HVS-ID-IG-MAKXH-22, Issue 01
Page 1 of 14
Advertisement
Related Manuals for Haivision Makito XH
Summary of Contents for Haivision Makito XH
- Page 1 The Makito XH is suited for ISR activities in remote locations, where it should be mounted within an environmental enclosure for additional protection. Typical applications include surveillance towers with security cameras that can feed an SDI signal to Makito XH units, which encode the video and stream it to a remote monitoring location.
-
Page 2: Power Supply Characteristics
Makito XH Installation Guide Makito XH Characteristics Makito XH Characteristics The table below describes some basic characteristics of the Makito XH. For complete specifications, please refer to the data sheet available from the Haivision Web site. Dimensions Chassis: 5.4” (13.72 cm) W x 8” (20.32 cm) Storage Temperature -10 °C to +70 °C... - Page 3 UDP Transport Stream format. NOTE If the Makito XH Encoder is to be installed in a remote location (e.g. on a utility pole, or on a mobile platform), we recommend that you follow the instructions in this Installation Guide to perform an initial setup in a “staging”...
- Page 4 Makito XH Installation Guide Makito XH Product Numbers Installing the Makito XH Position the appliance against a solid base, with the connectors facing downwards. CAUTION The surface temperature of the chassis can reach 95°C in poorly ventilated environments. We recommend that you fasten the appliance to a metal (cold) plate to increase heat dissipation.
- Page 5 16282-3SG-318 Conxall cable O.D. range: .18 – .20” (custom grommet required if cable O.D. is over .200”) PSU Pinouts The pinouts for the power supply unit (PSU) provided with the Makito XH are as follows: Pin #1 (N/C) Pin #2...
- Page 6 Makito XH Dual SDI Input Connect the Makito XH’s Ethernet port to the IP network using a Type Cat 5E cable. CAUTION Take care not to plug the Ethernet cable from an Ethernet switch (especially a Power over Ethernet (PoE) switch) directly into the COM1 serial port as it may damage the encoder.
- Page 7 (Optional) Add a sealant gel around the Makito XH connectors in order to further protect them from water, humidity, sand and dust. Power up the unit as described below. Note that there is no power switch on the Makito XH appliance. The power is automatically on when the unit is plugged in.
- Page 8 If you haven't changed the factory presets, and if not specified elsewhere in the shipment, the encoder’s IP address is set by default to: 10.5.1.2. To be able to log in to the Makito XH Web interface, your computer has to be in the same IP address range (subnet).
- Page 9 PSU Power Cable Product Numbers NOTE While the Web interface is most commonly used to control the Makito XH, a Command Line Inter- face (CLI) is accessible via Telnet or SSH. For more information, please refer to the Makito X User’s Guide.
- Page 10 Setting up a Test Stream Setting up a test stream requires that you have an active video source connected to the Makito XH. You will need to configure an encoding instance based on your video source, and then configure an output stream for that encoder.
- Page 11 Makito XH Installation Guide PSU Power Cable Product Numbers Select or enter the new value(s) in the appropriate field(s). Click , and then click Start Apply Click the icon on the toolbar, and then click from the sidebar menu. TREAMING UTPUTS The Output Streams List View opens, as shown in the following example.
- Page 12 Makito XH Installation Guide PSU Power Cable Product Numbers Type a Name for the stream and select TS over UDP for the Protocol. In the Source section, select the encoder you started in step 6. from the Video menu. In the Destination section, type in a valid multicast Address (e.g. 239.192.2.3) and Port number (e.g.
- Page 13 Turn the device on and connect it to a display (if applicable), or open your video player software (e.g. VLC). Make sure you are on the same network segment as the Makito XH, and Tune your decoding device or software to the Makito XH multicast address of the test stream coming from the Makito XH.
- Page 14 You may download the latest software, Release Notes and other relevant documentation through our Download Center at: https://support.haivision.com Waste Electrical and Electronic Equipment (WEEE) Disposal Haivision is compliant with the European Union (EU) WEEE Directive. For recovery and recycling information, please visit our website at: http://www.haivision.com/environment HVS-ID-IG-MAKXH-22, Issue 01...
