Makito X1 Rugged Encoder Installation Guide
This Installation Guide provides the steps required to install and configure the Makito X1 Rugged Video
Encoder to stream to your compatible decoding device. This guide covers the Makito X1 appliance (#S-
MX1E-R-SDI1-ISR) and the Evaluation Kit
at sales@haivision.com)
Please refer to the
Makito X1 Rugged Encoder User's
operation information, as well as technical specifications.
We recommend that you familiarize yourself with this guide before installing your encoder.
Use the following guidelines when unsafe conditions exist or when potentially hazardous voltages are
present:
•
Always use caution and common sense.
•
To reduce the risk of electrical shock, do not operate equipment with the cover removed.
•
Repairs must be performed by qualified service personnel only.
Improper handling and/or installation practices of sensitive equipment may VOID the warranty.
Caution
When handling components, or when setting switch options, always use an antistatic wrist strap
connected to a grounded equipment frame or chassis. If a wrist strap is not available, periodically
touch an unpainted metal surface on the equipment. Never use a conductive tool, such as a
screwdriver or a paper clip, to set switches.
Waste Electrical and Electronic Equipment (WEEE)
Disposal
In accordance with the European Union (EU) WEEE Directive, Haivision products that fall within
the scope of the WEEE, are labeled with the above symbol, and customers are encouraged to
responsibly recycle their equipment at the time of disposal. Haivision also offers its customers
the option of returning Haivision equipment to facilitate its environmentally sound disposal.
For more information, please visit our website at: https://www.haivision.com/environment.
Makito X1 Rugged Encoder 1.0
Makito X1 Rugged Encoder Installation Guide
Makito X1 Rugged Encoder 1.0
(#S-MX1E-R-SDI1-DK, available upon request
1
Guide for detailed configuration and
www.haivision.com
Generated on: 2024-02-08 21:18:37
HVS-ID-IG-MX1E-10, Issue 02

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Makito X1 and is the answer not in the manual?

Questions and answers

Related Manuals for Haivision Makito X1

Summary of Contents for Haivision Makito X1

  • Page 1 Waste Electrical and Electronic Equipment (WEEE) Disposal In accordance with the European Union (EU) WEEE Directive, Haivision products that fall within the scope of the WEEE, are labeled with the above symbol, and customers are encouraged to responsibly recycle their equipment at the time of disposal. Haivision also offers its customers the option of returning Haivision equipment to facilitate its environmentally sound disposal.
  • Page 2 Makito X1 Rugged Encoder Overview MX1 Rugged v2 (#S-MX1E-R-V2-SDI1) MX1 Rugged (#S-MX1E-R-SDI1) The Makito X1 Rugged is an ultra-compact H.265/HEVC and H.264/AVC low latency encoder for real-time streaming of MISB/JITC-compliant full motion video in demanding Intelligence, Surveillance and Reconnaissance (ISR) environments.

  • Page 3: Getting Started

     Note For information on the OEM board, please refer to the  Makito X1 Integrator's Board Installation Guide (available upon request at sales@haivision.com).  Getting Started Unpack the box and visually inspect the package contents for any evidence of shipping damage.
  • Page 4 ATTENTION Surface chaude. Eviter le contact. Le châssis peut atteindre une température de surface de 95°C dans des environnements mal ventilés et peut causer des blessures en cas de contact. Makito X1 Rugged Encoder 1.0 Generated on: 2024-02-08 21:18:37 Makito X1 Rugged Encoder Installation Guide HVS-ID-IG-MX1E-10, Issue 02...

  • Page 5: Safety Guidelines

    If a wrist strap is not available, periodically touch an unpainted metal surface on the equipment. Never use a conductive tool, such as a screwdriver or a paper clip, to set switches. Makito X1 Rugged Encoder 1.0 Generated on: 2024-02-08 21:18:37 Makito X1 Rugged Encoder Installation Guide HVS-ID-IG-MX1E-10, Issue 02...
  • Page 6 EMC Warnings Notice with respect to Class A (FCC) Changes to equipment without the permission of Haivision may result in its failure to comply with the FCC requirements for Class A digital devices. If applicable, your rights to use the equipment may be limited by the FCC rules and you may be able to remedy, at your own expense, any interference with...
  • Page 7 Installing the Makito X1 Rugged Encoder Always read the instructions carefully and keep this guide for future reference. To install the appliance:  Caution  The surface temperature of the chassis can reach 95°C in poorly ventilated environments. We recommend that you fasten the appliance to a metal (cold) plate to increase heat dissipation.

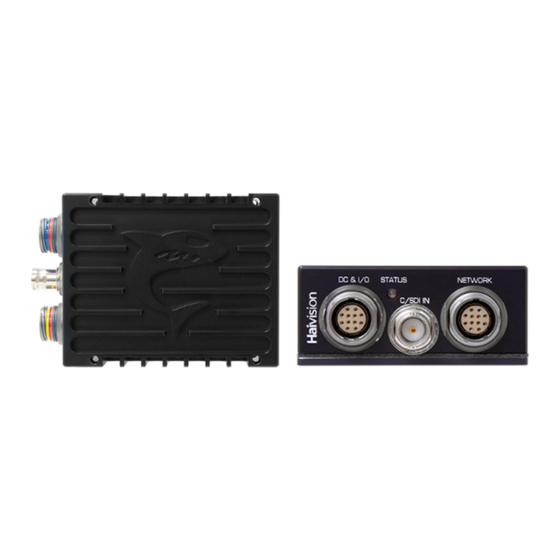

  • Page 8 Connecting to the Network and Audio/Video Sources MX1 Rugged v2 (#S-MX1E-R-V2-SDI1) MX1 Rugged (#S-MX1E-R-SDI1)                               The Makito X1 Rugged enclosure provides the following rugged connectors: • Power & I/O connector combining these inputs: •...
  • Page 9 The DC In  & I/O port may be used to ingest KLV/CoT, as a management port or as pass-thru for camera control. Makito X1 Rugged Encoder 1.0 Generated on: 2024-02-08 21:18:37 Makito X1 Rugged Encoder Installation Guide HVS-ID-IG-MX1E-10, Issue 02...
  • Page 10  Note As of Release 1.1.1, the Makito X1 Rugged supports two (2) input channels of analog audio. To configure analog audio, see Set Up a Test Stream.
  • Page 11 Powering up the Makito X1 Encoder MX1 Rugged v2 (#S-MX1E-R-V2-SDI1) MX1 Rugged (#S-MX1E-R-SDI1)                               There is no power switch on the encoder. The power is automatically on when the unit is plugged in.
  • Page 12 Wait until the Status LED stays solid green, indicating that the encoder is ready for operation. Related Topics • For pinout information, see DC IN and I/O Connector. • To order the PSU, contact Haivision Sales at sales@haivision.com. Makito X1 Rugged Encoder 1.0 Generated on: 2024-02-08 21:18:37 Makito X1 Rugged Encoder Installation Guide HVS-ID-IG-MX1E-10, Issue 02...

  • Page 13: Accessing The Web Interface

    “This Connection is Untrusted.” or “The site’s security certificate is not trusted.”). You must accept the encoder’s self-signed certificate in order to access the Web interface.  Note The Makito X1 identity certificate and trusted root certificates may be managed from the Web interface (Certificates page) or using the CLI command. See Managing certificate Certificates in the User's Guide.
  • Page 14 For security purposes, be sure to change the default passwords! See Changing Your Password in the User's Guide. The Web interface opens to the Outputs List View.  Makito X1 Rugged Encoder 1.0 Generated on: 2024-02-08 21:18:37 Makito X1 Rugged Encoder Installation Guide HVS-ID-IG-MX1E-10, Issue 02...
  • Page 15 Setting Up a Test Stream Setting up a test stream requires that you have an active video source connected to the Makito X1 Encoder. You will need to configure an encoding instance based on your video source, and then configure an output stream for that encoder. For detailed information, refer to Configuring Video...
  • Page 16 To configure the encoder, select or enter the new value(s) in the appropriate fields (see Configuring Video Encoders in the User's Guide). Click Start, and then click Apply. Makito X1 Rugged Encoder 1.0 Generated on: 2024-02-08 21:18:37 Makito X1 Rugged Encoder Installation Guide HVS-ID-IG-MX1E-10, Issue 02...
  • Page 17 To configure an output stream: Click Outputs on the sidebar.  The Output Streams List View opens. Makito X1 Rugged Encoder 1.0 Generated on: 2024-02-08 21:18:37 Makito X1 Rugged Encoder Installation Guide HVS-ID-IG-MX1E-10, Issue 02...
  • Page 18 224.0.0.0 224.0.0.255 should not be used by streaming sessions. We recommend that you use a multicast address from the Organization-Local scope ( 239.192.0.0/14 Makito X1 Rugged Encoder 1.0 Generated on: 2024-02-08 21:18:37 Makito X1 Rugged Encoder Installation Guide HVS-ID-IG-MX1E-10, Issue 02...
  • Page 19 The changes will take effect immediately but will be lost after a reboot. For information on saving configuration settings, refer to Saving and Loading Presets in the User’s Guide. Makito X1 Rugged Encoder 1.0 Generated on: 2024-02-08 21:18:37 Makito X1 Rugged Encoder Installation Guide HVS-ID-IG-MX1E-10, Issue 02...

  • Page 20: General Guidelines

     Note Unless otherwise specified, references to the "Makito X Series" or "Makito X" can be taken to include the Makito X, Makito X4, and Makito X1 family of encoders and decoders.  First, configure the encoder (see Setting Up a Test Stream).
  • Page 21 Play. "udp://@:2000" The stream should start within seconds. In case of failure, replace the "@" by the actual IP address of the PC. Makito X1 Rugged Encoder 1.0 Generated on: 2024-02-08 21:18:37 Makito X1 Rugged Encoder Installation Guide HVS-ID-IG-MX1E-10, Issue 02...
  • Page 22 #stream create addr={IP of the pc with VLC} port=2200 videosrc=2  Note When changing the video input resolution on the encoder, you may need to re-initialize VLC to show the stream. Makito X1 Rugged Encoder 1.0 Generated on: 2024-02-08 21:18:37 Makito X1 Rugged Encoder Installation Guide HVS-ID-IG-MX1E-10, Issue 02...

  • Page 23: Resetting The Encoder

    Resetting the Encoder • Default Network Settings This section describes the steps to perform a hardware reset on the Makito X1. The Reset button (located on the Ethernet/Factory Reset cable) is used either to reset the system or to restore the factory default settings.
  • Page 24 Makito X1 Rugged Encoder Pinouts This section contains the pinout descriptions for the Makito X1 Rugged Video Encoder. This information is intended to be used in conjunction with Haivision drawing no. TIID-060 (Makito MX1 Ruggedized Appliance). Topics Discussed • Enclosure Front Panel •...

  • Page 25: Enclosure Front Panel

    Reset button is pressed for more than four seconds (Factory Reset enabled). Red slow blinking Reset button is released after the Red fast blinking state (executing Factory Reset). Makito X1 Rugged Encoder 1.0 Generated on: 2024-02-08 21:18:37 Makito X1 Rugged Encoder Installation Guide HVS-ID-IG-MX1E-10, Issue 02...
  • Page 26 Audio / Power AUDIO IN CHANNEL 1+ AUDIO IN CHANNEL 1 GND AUDIO IN CHANNEL 2+ AUDIO IN CHANNEL 2 GND PSU RETURN +5VDC IN Makito X1 Rugged Encoder 1.0 Generated on: 2024-02-08 21:18:37 Makito X1 Rugged Encoder Installation Guide HVS-ID-IG-MX1E-10, Issue 02...
  • Page 27  command may also be used to select the transceiver mode for the metadata metadata capture (i.e., RS-232 or RS-422). For details, see metadata the Makito X1 Rugged Encoder User's Guide. Makito X1 Rugged Encoder 1.0 Generated on: 2024-02-08 21:18:37 Makito X1 Rugged Encoder Installation Guide HVS-ID-IG-MX1E-10, Issue 02...

  • Page 28: Network Connector

    Network Connector Part Number HEP.2M.312.XLNP FGP.2M.312.XLCT Network Connector Network Connector On Unit Mating Connector Manufacturer Hirose Hirose Connector Type Network Connector Network Connector Makito X1 Rugged Encoder 1.0 Generated on: 2024-02-08 21:18:37 Makito X1 Rugged Encoder Installation Guide HVS-ID-IG-MX1E-10, Issue 02...
  • Page 29 Network Connector On Unit Mating Connector Manufacturer Hirose Hirose Part Number LF10WBRB-12S LF10WBP-12P(31) Makito X1 Rugged Encoder 1.0 Generated on: 2024-02-08 21:18:37 Makito X1 Rugged Encoder Installation Guide HVS-ID-IG-MX1E-10, Issue 02...
  • Page 30 Network Connector Pinout Contact # Description ETH A+ ETH A- ETH B+ ETH B- ETH C- ETH C+ ETH D- ETH D+ SYS_RST# Makito X1 Rugged Encoder 1.0 Generated on: 2024-02-08 21:18:37 Makito X1 Rugged Encoder Installation Guide HVS-ID-IG-MX1E-10, Issue 02...

  • Page 31: Video Input Connector

    Video Input Connector The Makito X1 Rugged video encoder supports a single video input. The port marked CVBS/SDI can support up to 3G-SDI or analog video (NTSC/PAL).   • SDI is governed by SMPTE 259M (SD-SDI), 292M (HD-SDI) and 424M (3G-SDI) standards. Each coaxial pin is 75ohm impedance (3-GHz bandwidth).
  • Page 32 Haivision. If this content is distributed with software that includes an end-user agreement, this content and the software described in it, are furnished under license and may be used or copied only in accordance with the terms of that license.
  • Page 33 OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE. Makito X1 Rugged Encoder 1.0 Generated on: 2024-02-08 21:18:37 Makito X1 Rugged Encoder Installation Guide HVS-ID-IG-MX1E-10, Issue 02...

  • Page 34: Obtaining Documentation

    NOT ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Obtaining Documentation This document was generated from the Haivision InfoCenter. To ensure you are reading the most up-to- date version of this content, access the documentation online at https://doc.haivision.com. You may generate a PDF at any time of the current content. See the footer of the page for the date it was generated.
