Makito™ XR Encoder Installation Guide

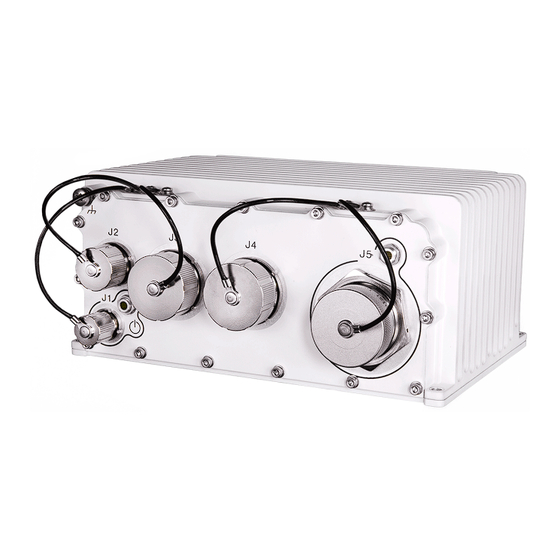

This Installation Guide summarizes the basic steps required to install and configure the Makito XR SD/HD/3G SDI
H.264 Video Encoder (single chassis, as shown below) to stream to your compatible decoding device. Please refer
to the Makito X User's Guide or the online help (available from the Web Interface) for detailed information.
NOTE
We recommend that you familiarize yourself with this Installation Guide before installing your
Makito XR.
The Makito XR is a rugged COTS encoder designed for the most
demanding Intelligence, Surveillance, and Reconnaissance (ISR)
applications and built to match the physical and mission-critical
requirements of Full Motion Video (FMV). The Makito XR High
Profile encoder supports up to four 720p60 HD (in the X4R model)
or two 1080p60 HD/3G inputs (in the X2R model), and can
simultaneously output two H.264 streams, each at different bit
rates. Scaling and frame rate settings can be adjusted on-the-fly.
Applications
Designed for integration on both manned and unmanned platforms, including aerial, naval, and
ground vehicles, the Makito XR is a single Line Replaceable Unit (LRU) that will not require major system upgrades
to existing platform designs. Tested against the highest international standards for ruggedization, including MIL-
STD 810G, MIL-STD 1275E and MIL-STD 461F, it can survive shock and vibration from any mobile application,
including law enforcement, military, and underwater vehicles deployed by oil and gas companies.
HVS-ID-IG-MAKXR-22, Issue 01
Page 1 of 25

Advertisement

loading

Related Manuals for Haivision Makito XR

Summary of Contents for Haivision Makito XR

  • Page 1 Designed for integration on both manned and unmanned platforms, including aerial, naval, and ground vehicles, the Makito XR is a single Line Replaceable Unit (LRU) that will not require major system upgrades to existing platform designs. Tested against the highest international standards for ruggedization, including MIL- STD 810G, MIL-STD 1275E and MIL-STD 461F, it can survive shock and vibration from any mobile application, including law enforcement, military, and underwater vehicles deployed by oil and gas companies.
  • Page 2 Quad channel HD-SDI Makito X Ruggedized with white CARC finish CAUTION We strongly recommend that you install the Makito XR in an enclosure for protection against weather and other environmental stresses. The ambient temperature inside the enclosure should be between -40°C and +71°C, and the relative humidity between 0 and 100%. If you have specific questions regarding the suitability of the Makito XR in your operating environment, please contact Haivision Tech- nical Support.
  • Page 3 Connector drawings, kitting and terminated cabling drawings are available upon request. In order to be able to view the output from the Makito XR, make sure you have a decoding device or video player that is able to support the UDP Transport Stream format.
  • Page 4 Makito XR Installation Guide Installing the Makito XR Installing the Makito XR Position the appliance against a solid base. CAUTION The surface temperature of the chassis can reach 95°C in poorly ventilated environments. We recommend that you fasten the appliance to a metal (cold) plate to increase heat dissipation.
  • Page 5 Power supply for the XR unit — 120/240 AC to +28V DC (40 Watts) with locking connector Makito XR Pinouts The J1 to J4 connectors on the Makito XR are GLENAIR 38999 series shells. J5 is a MIL-DTL-38999 matched impedance connector. The coaxial pins are GLENAIR 852-056-02. For detailed pinout information see “Appendix A: Makito XR Encoder Pinouts”.
  • Page 6 Connect the Makito XR’s J4 port to the IP network using the Ethernet cable: RJ-45 (Optional) Connect the Makito XR’s J2 port to a metadata source or to the serial port of a computer using the maintenance breakout cable (shown following).
  • Page 7 Mini-BNC NOTE The Makito XR supports up to 2 video inputs @ 1080p50/59.94/60 (in the X2R model), or up to 4 video inputs @ 1080p25/29.97/30 (in the X4R model). Power up the unit. Note that there is no power switch on the Makito XR appliance. The power is automatically on when the unit is plugged in.
  • Page 8 Wait until the Status LED stays solid green, indicating that the encoder is ready for operation. NOTE The Makito XR performs Built-in Self Tests (BIST) and Power-On Self Tests (POST) to ensure that the hardware and firmware are operating reliably and correctly. BIST provides a minimal suite of tests that test the various hardware and firmware sub-systems to ensure correct operation.
  • Page 9 If you haven't changed the factory presets, and if not specified elsewhere in the shipment, the encoder’s IP address is set by default to: 10.5.1.2. To be able to log in to the Makito XR Web interface, your computer has to be in the same IP address range (subnet).
  • Page 10 Makito XR Installation Guide Modifying the Makito XR’s IP Address Select the icon from the toolbar, and then select (under DMINISTRATION ETWORK ETTINGS Type in the new IP address. If required, select or enter other new value(s) in the appropriate field(s).
  • Page 11 Setting up a Test Stream Setting up a test stream requires that you have an active video source connected to the Makito XR. You will need to configure an encoding instance based on your video source, and then configure an output stream for that encoder.
  • Page 12 Makito XR Installation Guide Setting up a Test Stream The Video Encoder Detail View opens, displaying the settings for the selected video encoder (see following example). Select or enter the new value(s) in the appropriate field(s). Click , and then click...
  • Page 13 Makito XR Installation Guide Setting up a Test Stream To add an output stream, click The Output Streams Detail View opens (as shown in the following example for a new stream). Type a Name for the stream and select TS over UDP for the Protocol.
  • Page 14 Turn the device on and connect it to a display (if applicable), or open your video player software (e.g. VLC). Make sure you are on the same network segment as the Makito XR, and Tune your decoding device or software to the multicast address of the test stream coming from the Makito...

  • Page 15: Appendix A: Makito Xr Encoder Pinouts

    Abbreviations & Definitions Appendix A: Makito XR Encoder Pinouts This appendix contains the pinout descriptions for the Makito XR SD/HD/3G SDI H.264 Video Encoder. This information must be used in conjunction with Haivision drawing no. TIID-031 (Makito XR Enclosure External Cable Connections).

  • Page 16: Enclosure Front Panel

    Makito XR Installation Guide Enclosure Front Panel Enclosure Front Panel The Makito XR video encoder enclosure offers total of 5 MIL-STD connectors for external cables attachment. Makito XR Video Encoder Enclosure Front View List of Connectors Description Number of Contacts...
  • Page 17 Makito XR Installation Guide Power Entry Connector (J1) Power Entry Connector (J1) Refer to the Makito XR video encoder data sheet for power requirements details. Power Connector J1 Manufacturer GLENAIR Connector Type MIL-DTL-38999 Part Number 805-004-07ZNU8-23PA Front Connector Power Location...
  • Page 18 Refer to “Reset Button” USB 2.0 Interface The Makito XR video encoder has a USB 2.0 Host Interface which is provisioned for future use applications. It is currently disabled. Do not attach a USB device requiring more than 500 mA.
  • Page 19 J2 Maintenance Connector USB Pin Locations RS-232 Serial Interface Makito XR video encoder can be managed through a RS-232 serial interface, one commonly used for configuration making use of the Command Line Interface (CLI). This port is designated as COM1.

  • Page 20: Reset Button

    Makito XR Installation Guide Reset Button J2 Maintenance Connector COM1 – Module RS-232 Pin Locations Reset Button A reset button (RST# signal) can be asserted to ground to provide the user with 2 options. • If RST is asserted for 0s < t < 4s duration, the system resets and loads the last saved configuration. If no configuration was previously saved, the default settings prevail.
  • Page 21 Makito XR Installation Guide Connector (J3) J2 Maintenance Connector MISC Signal Pin Locations Connector (J3) This connector is reserved for future use. HVS-ID-IG-MAKXR-22, Issue 01 Page 21 of 25...
  • Page 22 “GBE0 — Ethernet” GBE0 — Ethernet The Makito XR video encoder allows for connectivity with one 10/100/1000 Gigabit Ethernet port over CAT-5 unshielded twisted pair per IEEE 802.3ab. The naming convention is per IEEE STD 802.3. This port is designated as GBE0.
  • Page 23 Makito XR Installation Guide GBE0 — Ethernet J4 Ethernet GBE0 Pin Locations HVS-ID-IG-MAKXR-22, Issue 01 Page 23 of 25...
  • Page 24 Video Connector (J5) The Makito XR video encoder allows up to four SDI / Composite video inputs, both signals sharing the contact pin. • SDI is governed by SMPTE 259M (SD-SDI), 292M (HD-SDI) and 424M (3G-SDI) standards. Each coaxial pin is 75- ohm impedance (3-GHz bandwidth).
  • Page 25 You may download the latest software, Release Notes and other relevant documentation through our Download Center at: https://support.haivision.com Waste Electrical and Electronic Equipment (WEEE) Disposal Haivision is compliant with the European Union (EU) WEEE Directive. For recovery and recycling information, please visit our website at: http://www.haivision.com/environment HVS-ID-IG-MAKXR-22, Issue 01...
