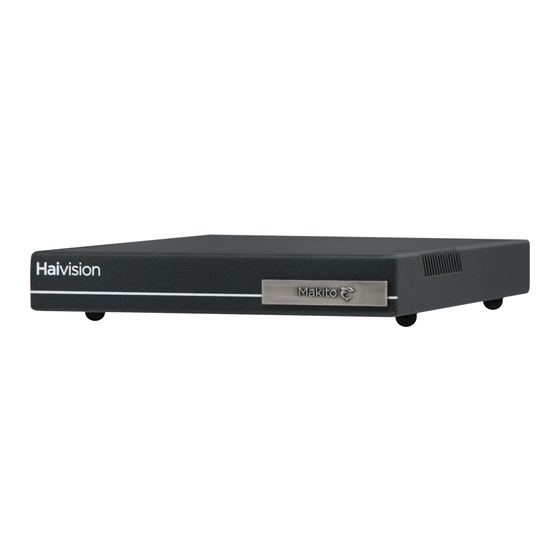

Makito X Decoder Quick Start Guide
This Quick Start Guide summarizes the steps required to install and configure the Makito X
decoder (single-height or dual-height chassis) to set up video decoding from a Haivision encoder (Makito
X, Makito X4*, Makito "Classic", or Hai1000/Piranha) or a third party compatible encoder.
Note
*The Makito X decoder may be used with the Makito X4 encoder for 1080p or lesser resolutions.
For detailed configuration and operation information, please refer to the User's Guide (available at
https://doc.haivision.com) . For the default credentials, refer to the Important Notice document (postcard
shipped with the appliance or available on the Haivision Support Portal at http://support.haivision.com).
For information on the MB6 (6-slot) or MB21 (21-slot) chassis, refer to
or
MB21 Chassis Installation
Guide Contents
•
Installing the Decoder
•
Accessing the Web Interface
•
Setting Up Decoder Streams
•
Configuring SDI Decoder Output
•
Configuring the Decoder HDMI Display
•
Configuring Analog Audio Output
•
Starting to Decode
Makito X Decoder
Makito X Decoder Quick Start Guide
Makito X Decoder v2.5.2
Guide.
the MB6 Chassis Installation Guide
1
www.haivision.com
Generated on: 2024-03-20 15:11:56
HVS-ID-QSG-MAKX-DEC-252
Advertisement
Table of Contents
Related Manuals for Haivision Makito X
Summary of Contents for Haivision Makito X
- Page 1 Note *The Makito X decoder may be used with the Makito X4 encoder for 1080p or lesser resolutions. For detailed configuration and operation information, please refer to the User's Guide (available at https://doc.haivision.com) . For the default credentials, refer to the Important Notice document (postcard shipped with the appliance or available on the Haivision Support Portal at http://support.haivision.com).
-
Page 2: Installing The Decoder
Unpack the box and visually inspect the package contents for any evidence of shipping damage. [See the Important Notice document in the box for list of contents.] Install the Makito X as a desktop unit on a flat, well-ventilated surface. Before You Begin... -
Page 3: Connecting To The Network
To connect the Decoder to A/V Displays: 3G-SDI Video Output with Embedded Audio: Connect one or both of the decoder’s SDI outputs to TV or display monitors, using the HD-BNC to Makito X Decoder Generated on: 2024-03-20 15:11:56 Makito X Decoder Quick Start Guide HVS-ID-QSG-MAKX-DEC-252... - Page 4 Connect the decoder’s audio output to the audio sound system/speakers, using the RCA female to audio adapter (unbalanced shown below, included in package). Note A balanced audio cable adapter is available from Haivision upon request. Please contact your sales representative or email Haivision at: sales@haivision.com Makito X Decoder Generated on: 2024-03-20 15:11:56...
- Page 5 Important There is no power switch on the Makito X appliance. The power is automatically on when the unit is plugged in. When using the AC/DC power adapter, the power supply cord is used as the main disconnect device. Ensure that the AC socket outlet is located near the equipment and is easily accessible.
- Page 6 Dual-Height Chassis Rear View (Dual-Channel HEVC #S-292D-HD2-HEVC) Power Adapter 12VDC with HiRose 3-pin Connector Makito X Decoder Generated on: 2024-03-20 15:11:56 Makito X Decoder Quick Start Guide HVS-ID-QSG-MAKX-DEC-252...
-
Page 7: Accessing The Web Interface
“This Connection is Untrusted.” or “The site’s security certificate is not trusted.”). You must accept the Makito X’s self-signed certificate in order to access the Web interface. Note The Makito X identity certificate and trusted root certificates may be managed from the Web interface (Certificates page) or using the CLI command. See Managing certificate Certificates in the User's Guide. - Page 8 The Web interface opens to the Streams List View. Makito X Decoder Generated on: 2024-03-20 15:11:56 Makito X Decoder Quick Start Guide HVS-ID-QSG-MAKX-DEC-252...
- Page 9 The Streams List View now shows the streams you have created. To display SAP-advertised streams, select “Discovered (SAP)” or “All” from the Display dropdown list (SAP listening must be enabled). Makito X Decoder Generated on: 2024-03-20 15:11:56 Makito X Decoder Quick Start Guide HVS-ID-QSG-MAKX-DEC-252...
- Page 10 (or “SAP Discovered” streams if SAP listening is enabled). The Name, Protocol, Type, incoming Resolution, Frame Rate, and Audio Sampling Rate for the selected stream are now displayed. Makito X Decoder Generated on: 2024-03-20 15:11:56 Makito X Decoder Quick Start Guide HVS-ID-QSG-MAKX-DEC-252...
- Page 11 * The decoder will display the Still Image if it is no longer receiving video (for example, if the encoder stream has stopped or the network connection is lost). Makito X Decoder Generated on: 2024-03-20 15:11:56 Makito X Decoder Quick Start Guide HVS-ID-QSG-MAKX-DEC-252...
- Page 12 To start or stop video decoding, click Start or Stop (as applicable). To view statistics for the decoder, click Statistics. The Streams List View now shows the Output for the streams you have created. Makito X Decoder Generated on: 2024-03-20 15:11:56 Makito X Decoder Quick Start Guide HVS-ID-QSG-MAKX-DEC-252...
- Page 13 Stream, and if required, to change the default video settings. To apply your changes, click Apply. To start or stop video decoding, click Start or Stop (as applicable). To view statistics for the decoder, click Statistics. Makito X Decoder Generated on: 2024-03-20 15:11:56 Makito X Decoder Quick Start Guide HVS-ID-QSG-MAKX-DEC-252...
- Page 14 , , , or . The default audio source is the first pair in the input stream. 1&2 3&4 5&6 7&8 To apply your changes, click Apply. Makito X Decoder Generated on: 2024-03-20 15:11:56 Makito X Decoder Quick Start Guide HVS-ID-QSG-MAKX-DEC-252...
-
Page 15: Configuring Analog Audio Output
Configuring Analog Audio Output On the Makito X dual channel decoder, two streams are received and can be displayed on either SDI video port. Analog audio can be selected from embedded channels on either stream. Both Analog Audio and Embedded Digital Audio are active. - Page 16 Once you have bound the video and audio to your streams, the decoder is ready to start decoding. (If not already created) Create a stream from a Haivision encoder (Makito X, Makito/Barracuda, or Hai1000/Piranha) with this decoder as the destination. [Make sure the encoder is on the same network segment.]...
-
Page 17: Obtaining Documentation
Obtaining Documentation This document was generated from the Haivision InfoCenter. To ensure you are reading the most up-to- date version of this content, access the documentation online at https://doc.haivision.com. You may generate a PDF at any time of the current content. See the footer of the page for the date it was generated.
