Makito™ XH Decoder Installation Guide

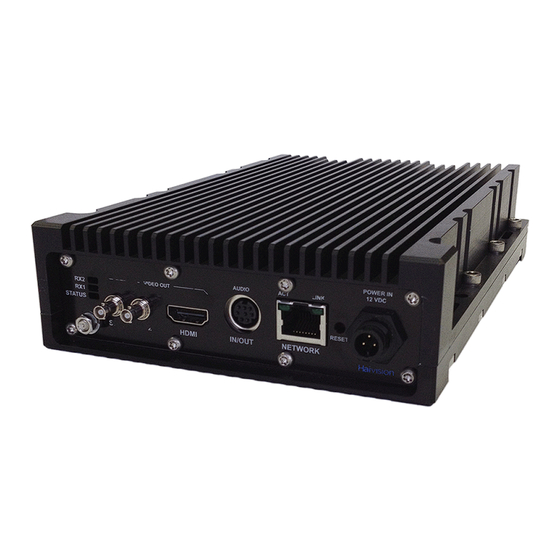

This Installation Guide summarizes the basic steps required to install and configure the Makito XH "Harsh" HD/SD
H.264 Video Decoder (single chassis, as shown below) to decode and display compatible IP video streams. Please
refer to the Makito X Decoder User's Guide or the online help (available from the Web Interface) for detailed
information.
NOTE
We recommend that you familiarize yourself with this Installation Guide before installing your
Makito XH Decoder in a remote location.
The Makito XH Decoder is a semi-ruggedized, industrial version
of the Makito X Decoder, available in a dual SDI plus HDMI
output configuration. It is designed for fan-less operation in
harsh/hot environments, where it can survive exposure to a
limited range of temperatures and other environmental factors
(e.g. humidity, dust, etc.).
The Makito XH Decoder is resistant to a limited amount of
shock and vibration, and can tolerate variations in temperature
(from 0 to 70 °C), humidity (0% to 95%, non-condensing), and air pressure (from 300 to 1015 kPa). In all other
aspects (video/audio decoding, management, network/serial port and metadata control) the Makito XH Decoder
is identical to its non-ruggedized Makito X Decoder counterparts.
Applications
The Makito XH Decoder is suited for ISR activities in remote locations, where it should be mounted within an
environmental enclosure for additional protection. Typical applications include providing on-site decoding of
video streams for border patrol operations, and fan-less decoding in noise-sensitive environments (e.g. a
broadcast booth at a live sporting event).
NOTE
While the Makito XH Decoder has a real-time clock (RTC), it has no RTC battery. In the event of a
power loss, the system date and time settings are lost. For any application with a requirement for stand-
alone synchronized system timing (or derived time codes), an NTP server should be used to provide time
and date synchronization.
HVS-ID-IG-MAKXHD-21, Issue 01
Page 1 of 14

Advertisement

loading

Related Manuals for Haivision Makito XH

Summary of Contents for Haivision Makito XH

  • Page 1 NOTE While the Makito XH Decoder has a real-time clock (RTC), it has no RTC battery. In the event of a power loss, the system date and time settings are lost. For any application with a requirement for stand- alone synchronized system timing (or derived time codes), an NTP server should be used to provide time and date synchronization.

  • Page 2: Power Supply Characteristics

    Commercial AC to +12V DC / 30 watt PSU supporting 0 °C to 70 °C operation CAUTION We strongly recommend that you install the Makito XH Decoder and power adapter in an en- closure for protection against weather and other environmental stresses. The ambient temperature in- side the enclosure should be between 0 and 70°C, and the relative humidity between 0 and 95%...
  • Page 3 Laptop with web browser and Telnet client In order to be able to test the output from the Makito XH Decoder, make sure you have an encoding device or application that is able to support the UDP Transport Stream format.
  • Page 4 Makito XH Decoder Installation Guide Installing the Makito XH Decoder Installing the Makito XH Decoder Position the appliance against a solid base, with the connectors facing downwards. CAUTION The surface temperature of the chassis can reach 95°C in poorly ventilated environments. We recommend that you fasten the appliance to a metal (cold) plate to increase heat dissipation.

  • Page 5: Rear View

    Conxall cable O.D. range: .18 – .20” (custom grommet required if cable O.D. is over .200”) PSU Pinouts The pinouts for the power supply unit (PSU) provided with the Makito XH Decoder are as follows: Pin #1 (N/C) Common (GND)
  • Page 6 Power up the unit. Note that there is no power switch on the Makito XH Decoder. The power is automatically on when the unit is plugged in. The power supply cord is used as the main disconnect device.
  • Page 7 If you haven't changed the factory presets, and if not specified elsewhere in the shipment, the decoder’s IP address is set by default to: 10.5.1.2. To be able to log in to the Makito XH Web interface, your computer has to be in the same IP address range (subnet).
  • Page 8 Makito XH Decoder Installation Guide Modifying the Decoder’s IP Address Select the icon from the toolbar, and then select (under DMINISTRATION ETWORK ETTINGS Type in the new IP address. If required, select or enter other new value(s) in the appropriate field(s).
  • Page 9 Setting Up a Test Stream To verify that the Makito XH Decoder is operational, you will need to set up an encoded video stream for it to receive and decode. To do this, make sure that your encoding device (or software) is compatible with the UDP Transport Stream format and is on the same network segment as the Makito XH Decoder.
  • Page 10 Output Resolution and Frame Rate. NOTE The Makito XH Decoder supports two independent video decoders that feed the two SDI interfac- es. The HDMI port can be configured to mirror the same content that is seen on either SDI1 or SDI2. The decoder also can support the display of computer graphics content over the HDMI port.
  • Page 11 Makito XH Decoder Installation Guide Decoding and Viewing the Test Stream The SDI1 Decoder page opens, displaying the current video decoding settings. Under Input, select the Primary input stream from the drop-down list of the stream(s) you have created. HVS-ID-IG-MAKXHD-21, Issue 01...
  • Page 12 Makito XH Decoder Installation Guide Decoding and Viewing the Test Stream The Name, Protocol, Type, incoming Resolution, Frame Rate, and Audio Sampling Rate for the selected stream now are displayed. If required, adjust the video settings. For details, see “SDI Decoder Settings” in the Makito X Decoder User’s Guide.
  • Page 13 Apply You should now be able to view the output of the Makito XH Decoder on the monitor or TV connected to SDI1. For more detailed information, please refer to “Managing the Decoder” in the Makito X Decoder User’s Guide.
  • Page 14 You may download the firmware, Readme file, and PDF versions of the User’s Guide and Installation Guide through our Knowledge Base at: http://support.haivision.com Waste Electrical and Electronic Equipment (WEEE) Disposal Haivision is compliant with the European Union (EU) WEEE Directive. For recovery and recycling information, please visit our website at: http://www.haivision.com/environment...
