Makito X4 Decoder Quick Start Guide
This Quick Start Guide provides the steps required to install and get started configuring the Makito X4
decoder to set up video decoding from a Haivision encoder (Makito X4, Makito X, or Makito "Classic") or
a third party compatible encoder.
For detailed configuration and operation information, please refer to the User's Guide (available at
https://doc.haivision.com
For the default credentials, refer to the Important Notice document (postcard shipped with the
appliance or available on the Haivision Support Portal at http://support.haivision.com).
For information on the MB6 (6-slot) or MB21 (21-slot) chassis, refer to
Guide
or the
MB21 Chassis Installation
Guide Contents
Install the Decoder
Connect to the Network
Connect to A/V Displays
Power Up the Decoder
Access the Web Interface
Set Up Streams
Configure Decoder Outputs
Start to Decode
Safety Guidelines
Laser Safety With SFP+ Optical Modules
Makito X4 Decoder 1.3.1
Makito X4 Decoder Quick Start Guide

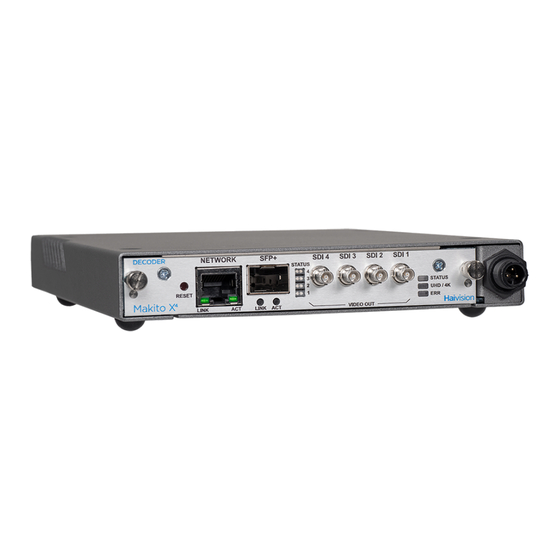

Makito X4 Decoder
) .
Guide.
1
www.haivision.com
the MB6 Chassis Installation
Generated on: 2024-02-19 21:08:24
HVS-ID-QSG-MX4D-131, Issue 01

Advertisement

loading
Need help?

Need help?

Do you have a question about the Makito X4 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Haivision Makito X4

  • Page 1 Makito X4 Decoder This Quick Start Guide provides the steps required to install and get started configuring the Makito X4 decoder to set up video decoding from a Haivision encoder (Makito X4, Makito X, or Makito “Classic”) or a third party compatible encoder. ...
  • Page 2: Install The Decoder

    Unpack the box and visually inspect the package contents for any evidence of shipping damage. [See the  Important Notice  postcard in the box for list of contents.] Install the Makito X4 as a desktop unit on a flat, well-ventilated surface. Before You Begin...
  • Page 3: Connect To The Network

    Safety With SFP+ Optical Modules notice. To connect the Network Interface: Connect the Makito X4 Decoder’s network port to the IP network using an Ethernet UTP cable (type Cat 5 or higher).  You can now telnet to the unit or connect via the Web interface.
  • Page 4 TV or display monitors, using the HD-BNC to BNC adapter cable(s).  The Makito X4 decoding capability may be spread across all four decode channels. All ports are 6/12G- SDI capable. The following video configurations are available: Primarily one (1) UHDp60, or two (2) UHDp30 or four (4) 1080p60 channels. ...
  • Page 5 (starting with decode channel 0) having higher priority. For details, see Oversubscription of Decoder Channels. Related Topics • Audio/Video Interface Makito X4 Decoder 1.3.1 Generated on: 2024-02-19 21:08:24 Makito X4 Decoder Quick Start Guide HVS-ID-QSG-MX4D-131, Issue 01...
  • Page 6  Important There is no power switch on the Makito X4 appliance. The power is automatically on when the unit is plugged in. When using the AC/DC power adapter, the power supply cord is used as the main disconnect device. Ensure that the AC socket outlet is located near the equipment and is easily accessible.
  • Page 7 Related Topics • Power Connector Pinouts (Single-Height Chassis) • LED Status Indicators Makito X4 Decoder 1.3.1 Generated on: 2024-02-19 21:08:24 Makito X4 Decoder Quick Start Guide HVS-ID-QSG-MX4D-131, Issue 01...
  • Page 8: Access The Web Interface

    You may have to temporarily change your computer’s IP Address to be in the same subnet as the decoder. Only then will you be able to access the Makito X4 and change its IP address, and then afterwards change your computer's IP address back. For details, see Configuring...
  • Page 9 The donut chart on each Decoder panel shows the resources used per decoder (darker green slice), as well as globally (lighter green slice). For more information including the color coding for the status bars, see Donut Charts. Makito X4 Decoder 1.3.1 Generated on: 2024-02-19 21:08:24 Makito X4 Decoder Quick Start Guide HVS-ID-QSG-MX4D-131, Issue 01...
  • Page 10 The new stream is active and is added to the Streams List. To add another stream, click Add Stream and follow the previous steps (Step #2 - #7) to configure the stream. Makito X4 Decoder 1.3.1 Generated on: 2024-02-19 21:08:24 Makito X4 Decoder Quick Start Guide HVS-ID-QSG-MX4D-131, Issue 01...
  • Page 11 (i.e., 0, then 1, 2, and 3) having higher priority. For more information, Oversubscription of Decoder Channels. Click Start to begin decoding the stream. Related Topics: • Configuring Streams Makito X4 Decoder 1.3.1 Generated on: 2024-02-19 21:08:24 Makito X4 Decoder Quick Start Guide HVS-ID-QSG-MX4D-131, Issue 01...
  • Page 12 The decoder will display the Still Image if it is no longer receiving video (for example, if the encoder stream has stopped or the network connection is lost). Makito X4 Decoder 1.3.1 Generated on: 2024-02-19 21:08:24 Makito X4 Decoder Quick Start Guide HVS-ID-QSG-MX4D-131, Issue 01...
  • Page 13 (If not already created) Create a stream from a Haivision encoder (Makito X4, Makito X, or Makito "Classic") with this decoder as the destination. [Make sure the encoder is on the same network segment.]...
  • Page 14: Safety Guidelines

     Warning Any power supply shipped with a Haivision Makito X Series encoder or decoder is to be used only with that product. Haivision supplied power supplies are not for general use. ATTENTION Tout bloc d'alimentation électrique livré avec un encodeur ou un décodeur de la série Haivision Makito X doit être utilisé...
  • Page 15 EMC Warnings Notice with respect to Class A (FCC) Changes to equipment without the permission of Haivision may result in its failure to comply with the FCC requirements for Class A digital devices. If applicable, your rights to use the equipment may be limited by the FCC rules and you may be able to remedy, at your own expense, any interference with...
  • Page 16 CE: Laser pour les appareils de classes 1 et 1M  Produits laser catégorie I (CDRH) et catégorie 1M (IEC). Makito X4 Decoder 1.3.1 Generated on: 2024-02-19 21:08:24 Makito X4 Decoder Quick Start Guide HVS-ID-QSG-MX4D-131, Issue 01...
  • Page 17: Obtaining Documentation

    Obtaining Documentation This document was generated from the Haivision InfoCenter. To ensure you are reading the most up-to- date version of this content, access the documentation online at https://doc.haivision.com. You may generate a PDF at any time of the current content. See the footer of the page for the date it was generated.
