Makito X4 Rugged Encoder Installation Guide

This Installation Guide provides the steps required to install and configure the Makito X4 Rugged Video

Encoder (#S-MX4E-R-SDI4-ISR or #S-MX4E-R-SDI4-ISR-UHD) to stream to your compatible decoding

device. Please refer to

operation information.

We recommend that you familiarize yourself with this guide before installing your encoder.

Use the following guidelines when unsafe conditions exist or when potentially hazardous voltages are

present:

•

Always use caution and common sense.

•

To reduce the risk of electrical shock, do not operate equipment with the cover removed.

•

Repairs must be performed by qualified service personnel only.

Improper handling and/or installation practices of sensitive equipment may VOID the warranty.



Caution

When handling components, or when setting switch options, always use an antistatic wrist strap

connected to a grounded equipment frame or chassis. If a wrist strap is not available, periodically

touch an unpainted metal surface on the equipment. Never use a conductive tool, such as a

screwdriver or a paper clip, to set switches.

Waste Electrical and Electronic Equipment (WEEE)

Disposal

In accordance with the European Union (EU) WEEE Directive, Haivision products that fall within

the scope of the WEEE, are labeled with the above symbol, and customers are encouraged to

responsibly recycle their equipment at the time of disposal. Haivision also offers its customers

the option of returning Haivision equipment to facilitate its environmentally sound disposal.

For more information, please visit our website at: https://www.haivision.com/environment.

Makito X4 Encoder 1.1

Makito X4 Rugged Encoder Installation Guide

Makito X4 Rugged Encoder 1.1

the Makito X4 Encoder User's Guide

for detailed configuration and

www.haivision.com

Generated on: 2024-02-08 22:26:05

HVS-ID-IG-MX4ER-11, Issue 01

Table of Contents

Need help?

Do you have a question about the Makito X4 and is the answer not in the manual?

Questions and answers

Summary of Contents for Haivision Makito X4

Page 1 Makito X4 Rugged Encoder Installation Guide Makito X4 Rugged Encoder 1.1 This Installation Guide provides the steps required to install and configure the Makito X4 Rugged Video Encoder (#S-MX4E-R-SDI4-ISR or #S-MX4E-R-SDI4-ISR-UHD) to stream to your compatible decoding device. Please refer to the Makito X4 Encoder User's Guide for detailed configuration and operation information.
Page 2 Surveillance, and Reconnaissance (ISR). The Makito X4 Rugged combines the low latency and performance of Haivision's Makito X4 encoder in a small and ruggedized form-factor with full KLV/CoT metadata support. It supports four video input channels and delivers high-quality, AVC/H.264 and HEVC/H.265 video from analog and digital sources at...
Page 3 Makito X4 Rugged Encoder for Situational Awareness Makito X4 Encoder 1.1 Generated on: 2024-02-08 22:26:05 Makito X4 Rugged Encoder Installation Guide HVS-ID-IG-MX4ER-11, Issue 01...
Page 4: Before You Begin
 Caution The IP67 rating only applies when the connectors are mated. Otherwise the usage of dust cap connectors (provided by Haivision, shown in the following figures) is required. Makito X4 Encoder 1.1 Generated on: 2024-02-08 22:26:05...
Page 5 Makito X4 Encoder 1.1 Generated on: 2024-02-08 22:26:05 Makito X4 Rugged Encoder Installation Guide HVS-ID-IG-MX4ER-11, Issue 01...
Page 6: Safety Guidelines
 Warning Any power supply shipped with a Haivision Makito X Series encoder or decoder is to be used only with that product. Haivision supplied power supplies are not for general use. ATTENTION Tout bloc d'alimentation électrique livré avec un encodeur ou un décodeur de la série Haivision Makito X doit être utilisé...
Page 7 EMC Warnings Notice with respect to Class A (FCC) Changes to equipment without the permission of Haivision may result in its failure to comply with the FCC requirements for Class A digital devices. If applicable, your rights to use the equipment may be limited by the FCC rules and you may be able to remedy, at your own expense, any interference with...
Page 8 Installing the Makito X4 Rugged Encoder To install the appliance:  Caution The surface temperature of the chassis can reach 95°C in poorly ventilated environments. We recommend that you fasten the appliance to a metal (cold) plate to increase heat dissipation.
Page 9  Caution The chassis must be properly grounded in order to provide protection against lightning strikes and other power surges. Makito X4 Encoder 1.1 Generated on: 2024-02-08 22:26:05 Makito X4 Rugged Encoder Installation Guide HVS-ID-IG-MX4ER-11, Issue 01...
Page 10 The Makito X4 Rugged enclosure provides rugged connectors for connecting the encoder's Network interface(s), as well as the Video, Audio, Serial, and Power inputs. The Makito X4 Rugged encoder supports either one 12G-SDI 4K/UHD video input, or four 3G-SDI inputs, along with three analog composite CVBS (NTSC/PAL/PAL-M) inputs.
Page 11 (Optional) To capture analog audio, connect the encoder’s Audio/Serial connector to your audio source(s) using the the audio/serial breakout cable, shown in the previous step. Makito X4 Encoder 1.1 Generated on: 2024-02-08 22:26:05 Makito X4 Rugged Encoder Installation Guide HVS-ID-IG-MX4ER-11, Issue 01...
Page 12 Make sure the connector is properly inserted and locked to avoid intermittent power problems. Connect the power cable to a 28V power source. (The AC PSU can be used to convert from 120V AC to +24V DC.) Makito X4 Encoder 1.1 Generated on: 2024-02-08 22:26:05 Makito X4 Rugged Encoder Installation Guide HVS-ID-IG-MX4ER-11, Issue 01...
Page 13 (in the Makito X Encoder User’s Guide , CLI Command bist Reference). Related Topics • For pinout information, see Power Entry Connector. • To order the PSU, see Makito X4 Rugged Technical Specifications (Product Numbers). Makito X4 Encoder 1.1 Generated on: 2024-02-08 22:26:05 Makito X4 Rugged Encoder Installation Guide HVS-ID-IG-MX4ER-11, Issue 01...
Page 14 IP address back. For details, see Configuring Network Settings in the User's Guide.  Note The Makito X4 identity certificate and trusted root certificates may be managed from the Web interface (Certificates page) or using the CLI certificate command. See Managing Certificates in the User's Guide.
Page 15 For security purposes, be sure to change the default passwords! See Changing Your Password in the User's Guide. The Web interface opens to the Outputs List View. Makito X4 Encoder 1.1 Generated on: 2024-02-08 22:26:05 Makito X4 Rugged Encoder Installation Guide HVS-ID-IG-MX4ER-11, Issue 01...
Page 16 Setting Up a Test Stream Setting up a test stream requires that you have an active video source connected to the Makito X4 Encoder. You will need to configure an encoding instance based on your video source, and then configure an output stream for that encoder. For detailed information, refer to Configuring Video...
Page 17 To configure the encoder, select or enter the new value(s) in the appropriate fields (see Configuring Video Encoders in the User's Guide). Click Start, and then click Apply. Makito X4 Encoder 1.1 Generated on: 2024-02-08 22:26:05 Makito X4 Rugged Encoder Installation Guide HVS-ID-IG-MX4ER-11, Issue 01...
Page 18 To configure an output stream: Click Outputs on the sidebar. The Output Streams List View opens. To add an output stream, click the Add button. The New Stream page opens. Makito X4 Encoder 1.1 Generated on: 2024-02-08 22:26:05 Makito X4 Rugged Encoder Installation Guide HVS-ID-IG-MX4ER-11, Issue 01...
Page 19 Organization-Local scope ( 239.192.0.0/14 To add metadata to the stream, select the Metadata source, and (optionally) select the encapsulation type (Data Carriage). Makito X4 Encoder 1.1 Generated on: 2024-02-08 22:26:05 Makito X4 Rugged Encoder Installation Guide HVS-ID-IG-MX4ER-11, Issue 01...
Page 20: General Guidelines
 Note Unless otherwise specified, references to the "Makito X Series" or "Makito X" can be taken to include the Makito X, Makito X4, and Makito X1 family of encoders and decoders. First, configure the encoder. See Setting Up a Test Stream (in the Makito X4 Rugged Encoder Installation Guide).
Page 21 Play. "udp://@:2000" The stream should start within seconds. In case of failure, replace the "@" by the actual IP address of the PC. Makito X4 Encoder 1.1 Generated on: 2024-02-08 22:26:05 Makito X4 Rugged Encoder Installation Guide HVS-ID-IG-MX4ER-11, Issue 01...
Page 22 #stream create addr={IP of the pc with VLC} port=2200 videosrc=2  Note When changing the video input resolution on the encoder, you may need to re-initialize VLC to show the stream. Makito X4 Encoder 1.1 Generated on: 2024-02-08 22:26:05 Makito X4 Rugged Encoder Installation Guide HVS-ID-IG-MX4ER-11, Issue 01...
Page 23 Makito X4 Rugged Encoder Pinouts This section contains the pinout descriptions for the Makito X4 Rugged Video Encoder. This information is intended to be used in conjunction with Haivision drawing no. TIID-057 (Makito 4K R Appliance RevA). Topics Discussed • Enclosure Front Panel •...
Page 24: Enclosure Front Panel
Enclosure Front Panel The Makito X4 Rugged enclosure provides four (4) rugged connectors for connecting the encoder's Video inputs, located on the front panel. Connectors Connector Description Number of Contacts Video Input Connectors 4X Coax BNC Jack Amphenol P/N...

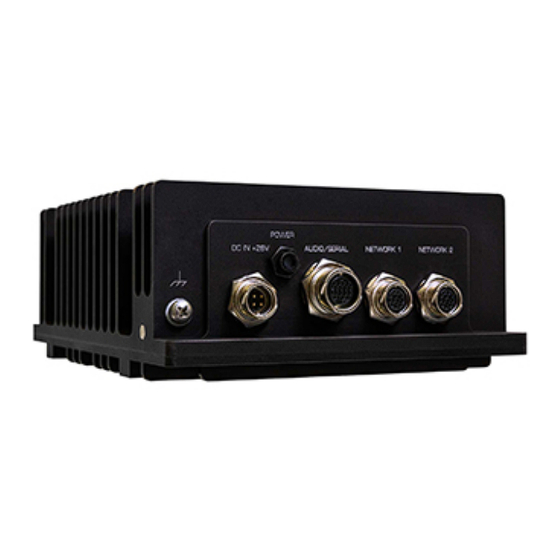

Page 25 Enclosure Back Panel The Makito X4 Rugged enclosure provides rugged connectors for connecting the encoder's Audio, Serial, and Power inputs, as well as the Network interface, located on the back panel. There is one LED that indicates the power encoding status.
Page 26 Reset button is pressed for more than four seconds (Factory Reset enabled). Red slow blinking Reset button is released after the Red fast blinking state (executing Factory Reset). Makito X4 Encoder 1.1 Generated on: 2024-02-08 22:26:05 Makito X4 Rugged Encoder Installation Guide HVS-ID-IG-MX4ER-11, Issue 01...
Page 27: Power Entry Connector
LF10WBP-4S or LF10WBP-4S(31) Power Entry Connector Pinout Contact # Description +28V DC IN For the connector and cable, see Powering up the X4 Rugged Encoder. Makito X4 Encoder 1.1 Generated on: 2024-02-08 22:26:05 Makito X4 Rugged Encoder Installation Guide HVS-ID-IG-MX4ER-11, Issue 01...
Page 28 Analog Audio/Serial Input Connector The Makito X4 Rugged analog audio/serial interface provides two (2) mono audio input signals and one mono audio output (for talkback, future use). The talkback output impedance is 75 Ω (Ohms). The signal level is 1 Vrms (or 2.2 dBu) (single ended).
Page 29 If you press and hold the button for more than 4 seconds, the module performs a complete factory reset. It clears all of the previously configured settings, including IP, streams and encoder configurations. Makito X4 Encoder 1.1 Generated on: 2024-02-08 22:26:05 Makito X4 Rugged Encoder Installation Guide HVS-ID-IG-MX4ER-11, Issue 01...
Page 30: Ethernet Connector
Ethernet Connector The Makito X4 Rugged video encoder allows for connectivity with two 10/100/1000 Gigabit Ethernet ports over CAT-5 unshielded twisted pair per IEEE 802.3ab. The naming convention is per IEEE STD 802.3. These ports are designated as Network 1 and Network 2.
Page 31 Ethernet Wiring Diagram For the connector and cable, see Step #2 in Connecting the X4 Rugged Encoder to the Network and Audio/Video Sources. Makito X4 Encoder 1.1 Generated on: 2024-02-08 22:26:05 Makito X4 Rugged Encoder Installation Guide HVS-ID-IG-MX4ER-11, Issue 01...
Page 32: Video Input Connectors
Video Input Connectors The Makito X4 Rugged video encoder supports four (4) video inputs. The port marked SDI1 can support input up to 6/12G-SDI. The ports marked CVBS/SDI support up to 3G-SDI or analog video (NTSC/PAL). • SDI is governed by SMPTE 259M (SD-SDI), 292M (HD-SDI) and 424M (3G-SDI) standards. Each coaxial pin is 75ohm impedance (3-GHz bandwidth).
Page 33: Abbreviations And Definitions
Makito X4 Rugged Video Encoder Data Sheet • Makito X4 Encoder User's Guide • SMPTE 259M (SD-SDI), 292M (HD-SDI) and 424M (3G-SDI) • IEEE 802.3-2012 (Ethernet) Makito X4 Encoder 1.1 Generated on: 2024-02-08 22:26:05 Makito X4 Rugged Encoder Installation Guide HVS-ID-IG-MX4ER-11, Issue 01...
Page 34  Note Please refer to the Makito X4 encoder Technical Specifications for the general specifications. The following additional specifications apply only to the Makito X4 Rugged encoder. Makito X4 Rugged-Specific Specifications Video Interfaces Multiple-format Quad BNC Input: • 1 channel Rugged BNC video input supporting up to 12G-SDI •...
Page 35: Physical Characteristics
Physical Characteristics The table below describes some basic characteristics of the Makito X4 Rugged Encoder. For complete specifications, please refer to the data sheet available from the Haivision Web site. Makito X4 Rugged Encoder (#S-MX4E-R-SDI4-ISR) Dimensions 66mm H x 146.2mm W x 185.7mm D (2.675"...
Page 36 Product Numbers Makito X4 Rugged Encoder S-MX4E-R-SDI4-ISR- Makito X4 Rugged 4K UHD Video Encoder with four inputs; up to 3840x2160p60; 8x AVC/ H.264 or HEVC/H.265 encoding engines; with KLV Metadata S-MX4E-R-SDI4-ISR Makito X4 Rugged HD Video Encoder with four inputs; up to 1920x1080p60; 8x AVC/H.264 or HEVC/H.265 encoding engines;...
Page 37 Haivision. If this content is distributed with software that includes an end-user agreement, this content and the software described in it, are furnished under license and may be used or copied only in accordance with the terms of that license.
Page 38 OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE. Makito X4 Encoder 1.1 Generated on: 2024-02-08 22:26:05 Makito X4 Rugged Encoder Installation Guide HVS-ID-IG-MX4ER-11, Issue 01...
Page 39: Obtaining Documentation
NOT ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. Obtaining Documentation This document was generated from the Haivision InfoCenter. To ensure you are reading the most up-to- date version of this content, access the documentation online at https://doc.haivision.com. You may generate a PDF at any time of the current content. See the footer of the page for the date it was generated.
