Haivision Makito X Encoder Quick Start Manual page 2

Connecting to the Network
To connect the Network Interface:
1. Connect the Makito X's network port to the IP network using an Ethernet UTP cable (type Cat 5 or
higher).
This will allow you to telnet to the unit or connect via the Web interface.

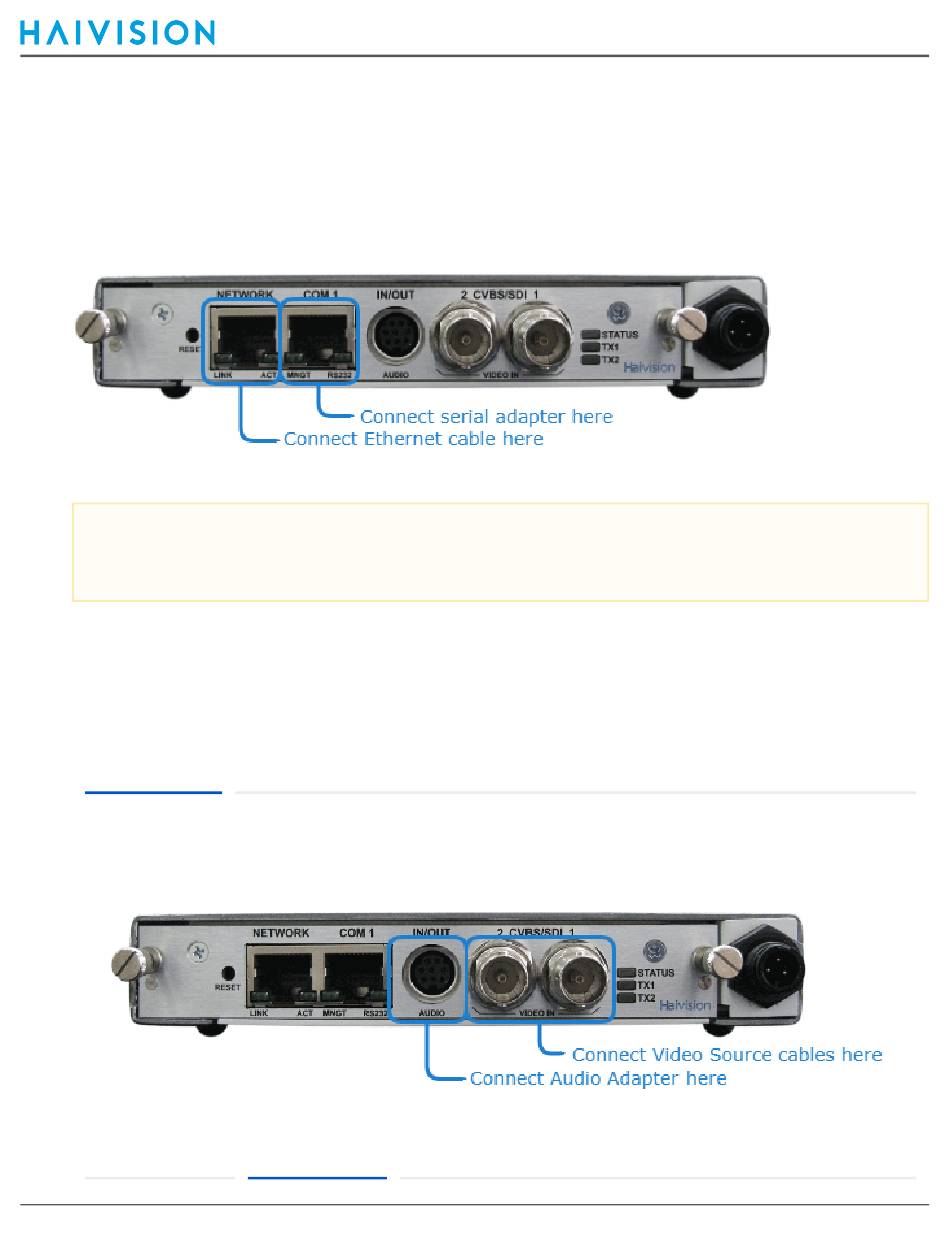

Network and COM1 Ports (Makito X SDI, #S-292E-HDSDI2)

Note
To connect the serial interface (if applicable, SDI only), please refer to
(Makito X
Connecting to A/V Sources
1. Connect your video source cables to one (or both) of the Makito X's video inputs, using the
appropriate connector:
SDI Video Input
SDI Video Input
• Composite (CVBS) Video Input: Use the BNC connector(s).
• SDI Video/Embedded Audio (SD or HD) Input: Use the BNC connector(s).
SDI Video Input
Makito X Encoder 2.2
Makito X Encoder Quick Start Guide
SDI) in the User's Guide.
