This Installation Guide provides the steps required to install and configure either the Makito XH
Encoder (to stream to a compatible decoding device) or the Makito XH Decoder (to decode compatible
video streams).
Please refer to the Makito X Encoder or Decoder User's Guide for detailed configuration and
operation information.
We recommend that you familiarize yourself with this guide before installing your encoder or decoder.
Use the following guidelines when unsafe conditions exist or when potentially hazardous voltages are
present:
•
Always use caution and common sense.
•
To reduce the risk of electrical shock, do not operate equipment with the cover removed.
•
Repairs must be performed by qualified service personnel only.
Improper handling and/or installation practices of sensitive equipment may VOID the warranty.
Caution
When handling components, or when setting switch options, always use an antistatic wrist strap
connected to a grounded equipment frame or chassis. If a wrist strap is not available, periodically
touch an unpainted metal surface on the equipment. Never use a conductive tool, such as a
screwdriver or a paper clip, to set switches.
Waste Electrical and Electronic Equipment (WEEE)
Disposal
In accordance with the European Union (EU) WEEE Directive, Haivision products that fall within
the scope of the WEEE, are labeled with the above symbol, and customers are encouraged to
responsibly recycle their equipment at the time of disposal. Haivision also offers its customers
the option of returning Haivision equipment to facilitate its environmentally sound disposal.
For more information, please visit our website at: https://www.haivision.com/environment.
Makito X Encoder 2.2
Makito X Harsh Installation Guide
Makito X Harsh Installation Guide
Makito XH Encoder/Decoder 2.2
1
www.haivision.com
Generated on: 2024-02-09 18:55:54
HVS-ID-IG-MAKXH-22, Issue 02
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Haivision Makito X Harsh
Summary of Contents for Haivision Makito X Harsh
- Page 1 Waste Electrical and Electronic Equipment (WEEE) Disposal In accordance with the European Union (EU) WEEE Directive, Haivision products that fall within the scope of the WEEE, are labeled with the above symbol, and customers are encouraged to responsibly recycle their equipment at the time of disposal. Haivision also offers its customers the option of returning Haivision equipment to facilitate its environmentally sound disposal.
- Page 2 1015 kPa). In all other aspects (including video/ audio encoding/decoding, streaming, management, network/serial port and metadata control) the Makito XH is identical to its non- ruggedized Makito X counterparts. Makito X Encoder 2.2 Generated on: 2024-02-09 18:55:54 Makito X Harsh Installation Guide HVS-ID-IG-MAKXH-22, Issue 02...
-
Page 3: Before You Begin
. Only connect the unit to a compatible power source. If an electrical fault occurs, disconnect the unit and contact Haivision Technical Support. Never try to force the connections when setting up the system as this may damage the unit. - Page 4 Fasten a grounding wire (10 AWG minimum) to the grounding lug using the nut and lock washer provided (as shown in the following encoder example). Makito X Encoder 2.2 Generated on: 2024-02-09 18:55:54 Makito X Harsh Installation Guide HVS-ID-IG-MAKXH-22, Issue 02...

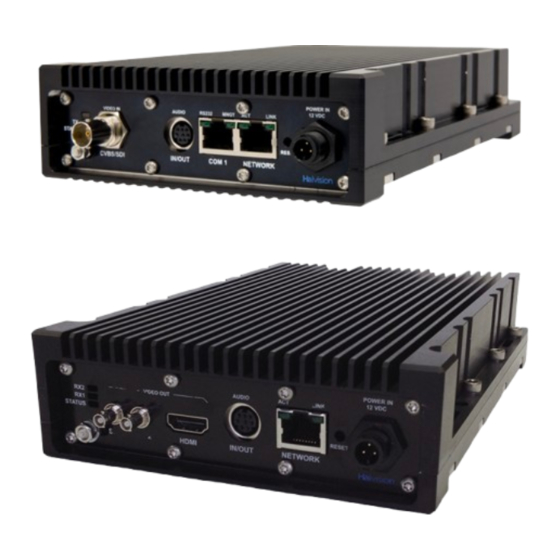

- Page 5 Connecting the Makito XH to the Network and A/V Sources or Displays Connect video, audio, network and serial cables, referring to the figures below: Makito XH Decoder Makito XH Encoder Makito XH Encoder Makito X Encoder 2.2 Generated on: 2024-02-09 18:55:54 Makito X Harsh Installation Guide HVS-ID-IG-MAKXH-22, Issue 02...
- Page 6 Makito XH Encoder Makito XH Decoder Makito XH Decoder Network: Connect the Makito XH’s Ethernet port to the IP network using a Type Cat 5E cable. Makito X Encoder 2.2 Generated on: 2024-02-09 18:55:54 Makito X Harsh Installation Guide HVS-ID-IG-MAKXH-22, Issue 02...
- Page 7 Analog Audio Input/Output: Connect the Makito XH’s mini-DIN-8 audio connector to your audio source or sound system/speakers, using the audio 8-pin Mini-DIN connector/ Audio cable/adapter provided with the Makito XH. Makito X Encoder 2.2 Generated on: 2024-02-09 18:55:54 Makito X Harsh Installation Guide HVS-ID-IG-MAKXH-22, Issue 02...
- Page 8 On the Makito XH Decoder, for unbalanced audio, use the 8-pin audio to 3-RCA female cable adapter (included in the package). • A balanced audio cable adapter is available from Haivision upon request. • Refer to the Makito X Encoder or Decoder User’s Guide for the balanced/unbalanced audio pinouts.
- Page 9 AC source. Makito XH Decoder Makito XH Encoder Makito XH Encoder Makito XH Encoder Makito XH Decoder Makito XH Decoder To power up the Makito XH: Makito X Encoder 2.2 Generated on: 2024-02-09 18:55:54 Makito X Harsh Installation Guide HVS-ID-IG-MAKXH-22, Issue 02...
- Page 10 While the Conxall power connector on the Makito XH is identical to those on the Makito X SDI appliances, the power supply (PSU) itself is different in order to support the increased temperature range. Refer to Power Supply Characteristics for details. Makito X Encoder 2.2 Generated on: 2024-02-09 18:55:54 Makito X Harsh Installation Guide HVS-ID-IG-MAKXH-22, Issue 02...
- Page 11 Click Start, and then click Apply. To configure an output stream: Click the Streaming icon on the toolbar, and then click Outputs on the sidebar (under General Settings). Makito X Encoder 2.2 Generated on: 2024-02-09 18:55:54 Makito X Harsh Installation Guide HVS-ID-IG-MAKXH-22, Issue 02...
- Page 12 The changes will take effect immediately but will be lost after a reboot. For information on saving configuration settings, please refer to Saving and Loading Presets in the Makito X User’s Guide . Makito X Encoder 2.2 Generated on: 2024-02-09 18:55:54 Makito X Harsh Installation Guide HVS-ID-IG-MAKXH-22, Issue 02...
- Page 13 Under Input, select the Primary input stream from the drop-down list of the stream(s) you have created. The Name, Protocol, Type, incoming Resolution, Frame Rate, and Audio Sampling Rate for the selected stream now are displayed. Makito X Encoder 2.2 Generated on: 2024-02-09 18:55:54 Makito X Harsh Installation Guide HVS-ID-IG-MAKXH-22, Issue 02...
- Page 14 On the Analog Audio Output page, select or enter the new value(s) in the appropriate field(s). For details, see “Analog Audio Settings” in the Makito X Decoder User’s Guide . Makito X Encoder 2.2 Generated on: 2024-02-09 18:55:54 Makito X Harsh Installation Guide HVS-ID-IG-MAKXH-22, Issue 02...
- Page 15 Make sure you are on the same network segment as the Makito XH, and Tune your decoding device or software to the Makito XH multicast address of the test stream coming from the Makito XH. Makito X Encoder 2.2 Generated on: 2024-02-09 18:55:54 Makito X Harsh Installation Guide HVS-ID-IG-MAKXH-22, Issue 02...
- Page 16 The table below details the minimum requirements for an adapter or battery to be used as a power source for the Makito XH. The power adapter provided by Haivision (P-292-XH-PS-AC) is subject to high quality standards, and meets or exceeds these minimum requirements in all respects.
- Page 17 Caution The use of a power adapter or battery that is not compliant with these specifications may cause irreparable damage to your Haivision appliance. Product Numbers Makito XH Encoder S-292E-X1H Makito X Single channel SDI Encoder Appliance for Harsh...
- Page 18 Haivision. If this content is distributed with software that includes an end-user agreement, this content and the software described in it, are furnished under license and may be used or copied only in accordance with the terms of that license.
- Page 19 OR OTHER LIABILITY, WHETHER IN AN ACTION OF CONTRACT, TORT OR OTHERWISE, ARISING FROM, OUT OF OR IN CONNECTION WITH THE SOFTWARE OR THE USE OR OTHER DEALINGS IN THE SOFTWARE. Makito X Encoder 2.2 Generated on: 2024-02-09 18:55:54 Makito X Harsh Installation Guide HVS-ID-IG-MAKXH-22, Issue 02...
-
Page 20: Accessing The Web Interface
Sign in to the Makito X Web interface, using the default administrative username and password. Please refer to the Important Notice document (included in the box or available from the Download Center on the Haivision Support Portal) for the default login credentials. Makito X Encoder 2.2 Generated on: 2024-02-09 18:55:54... - Page 21 For security purposes, be sure to change the default passwords! See Changing Your Password in the User's Guide. The Web interface opens to the Outputs List View (shown below). Makito X Encoder 2.2 Generated on: 2024-02-09 18:55:54 Makito X Harsh Installation Guide HVS-ID-IG-MAKXH-22, Issue 02...
-
Page 22: Obtaining Documentation
Obtaining Documentation This document was generated from the Haivision InfoCenter. To ensure you are reading the most up-to- date version of this content, access the documentation online at https://doc.haivision.com. You may generate a PDF at any time of the current content. See the footer of the page for the date it was generated.
