PREPARING THE CAMERA

Installing batteries

1. Ensure that the camera is OFF.
2. Slide open the battery compartment lid. (See fig. 1)
3. Insert the batteries; minding the correct direction of polarities. (See fig. 2)
4. Close the battery compartment lid. (See fig. 3)

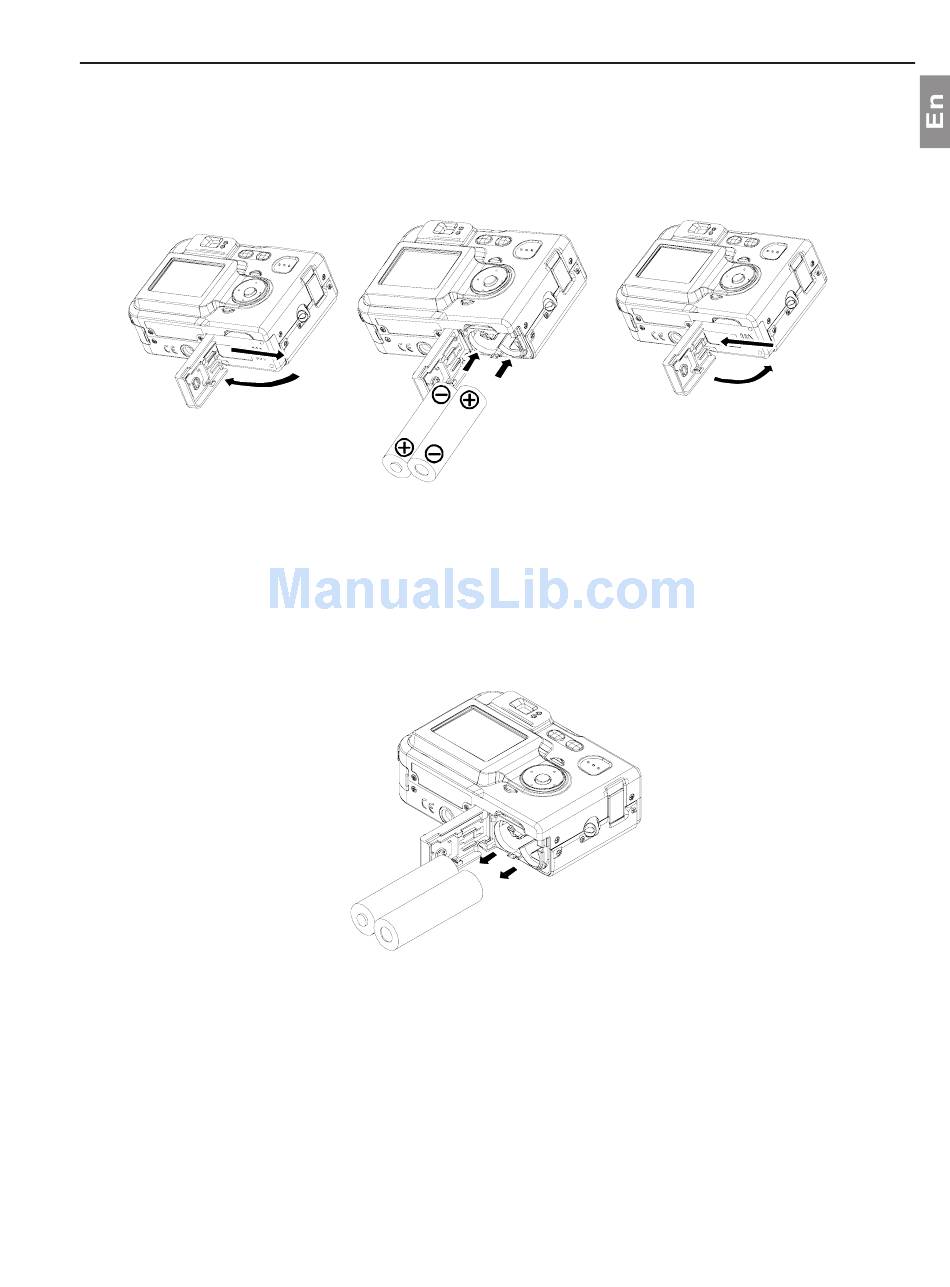

fig. 1 fig. 2 fig. 3

Replacing/Removing batteries from the camera

1. Ensure that the camera is turned OFF.
2. Slide open the battery compartment lid. (see fig. 1)
3. To remove the batteries, slightly tilt the camera to slide out the batteries. (see fig. 4)
4. To replace the batteries, mind the correct direction of polarities. (see fig. 2)
5. Close the battery compartment lid. (see fig. 3)
fig. 4
8
