  • Page 2 Thank you for purchasing the Concord Eye-Q 5330Z. Please take the time to read through this Quick Start Guide so you can enjoy all its features. This mark on your camera certifies that this camera meets the requirements of the EU (European Union) concerning interference causing equipment regulations.

  • Page 3: Before You Begin

    BEFORE YOU BEGIN Check the packing list before you begin. If some parts are missing, please contact your camera dealer. • Concord Eye-Q 5330z (x 1) • AA-size Alkaline Batteries (x 4) • Video Cable (x 1) • Hand Strap (x 1) •...

  • Page 4: Names Of Parts

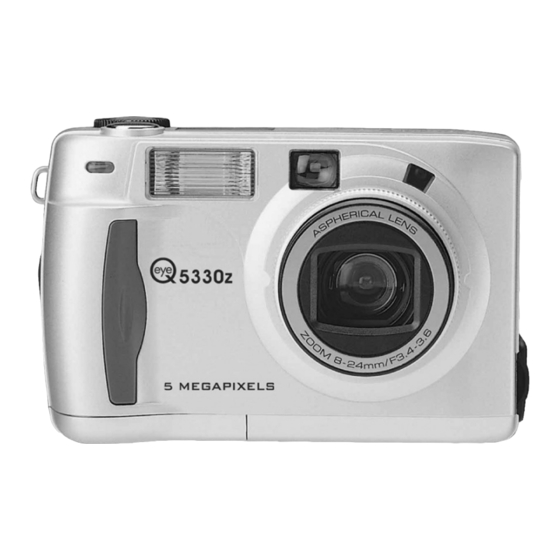

    NAMES OF PARTS CAMERA BODY _FRONT VIEW * Do not touch.
  • Page 5 CAMERA BODY _REAR VIEW...

  • Page 6: Inside The Terminal Cover

    INSIDE THE TERMINAL COVER USB connector Video-out terminal DC terminal BOTTOM OF BODY Battery-chamber door Tripod socket...

  • Page 7: Data Panel

    DATA PANEL The following diagram shows all items displayed to aid the explanation. Image-size indicator Number display of recordable remaining frame/ No-card indicator * Refer to the number of recordable remaining frame as a guide. The number changes depending on the scene or subject you record. Flash-mode indicator Battery-condition indicator Self-timer indicator...

  • Page 8: Basic Functions

    BASIC FUNCTIONS Rotate the function dial to Press ENTER to change DRIVE mode: In general controlling (MENU), press STILL IMAGE mode. FLASH Digital zoom :WIDE / TELE Focusing distance key to select and press AUTO FLASH FILL-FLASH FLASH CANCEL AUTOFLASH WITH RED-EYE REDUCTION NIGHT MODE Auto focus (No icon)

  • Page 9: Get Ready

    GET READY ATTACHING THE HAND STRAP 1 1 Insert the smaller loop of the hand strap through the strap eyelet. 2 2 Insert the other end of the hand strap through the small loop. GETTING STARTED 1 1 Insert the batteries . Be sure that positive and negative battery terminals are oriented as illustrated on bottom of the back cover.

  • Page 10: How To Take A Picture

    HOW TO TAKE A PICTURE TAKING PICTURES 1 1 Rotate the function dial to 2 2 Slide the power switch to turn on the camera. 3 3 Press the image composition while looking into the LCD monitor or viewfinder. 4 4 Adjust the image range and size with the four-way key •...
  • Page 11 5 5 Press the shutter-release button halfway down. • When the image is focused, the focus lamp (green) lights up. 6 6 Press the shutter-release button fully down to take the picture. • The captured image is displayed on the LCD monitor. •...

  • Page 12: Monitoring The Captured Images

    HOW TO REVIEW A PICTURE MONITORING THE CAPTURED IMAGES 1 1 Rotate the function dial to 2 2 Slide the power switch to turn on the camera. • The latest image (which was recorded last) is displayed on the LCD monitor. 3 3 When the next or previous one respectively.

  • Page 13: Sound Recording

    SOUND RECORDING RECORD THE SOUND 1 1 Rotate the function dial to select the desired image to record sound. 2 2 Press recording. • The icon SOUND PLAYBACK Press key for PLAY&PAUSE. • The icon , and press key to start recording and press with recording time(It will record for 10s) is displayed.

  • Page 14: Movie Clip Playback

    HOW TO TAKE A MOVIE CLIP When rotating the function dial to MOVIE CLIP mode,you can directly take a short movie clip. 1 Press the shutter release button fully down to start. 2 Press the shutter release button fully again to stop recording. •...
  • Page 15 HOW TO DELETE A PICTURE 1 1 Rotate the function dial to • The playback mode menu is displayed on the LCD monitor. 2 2 Press image to delete. • Choose "All Images allows user to delete all images of the folder." 3 3 Press ENTER button.
  • Page 16 Technical Suppor t Hot Line: Toll Free In the USA & Canada 1-866-522-6372 Toll Free In Europe UK: 0800-169-6482 BELGIUM: 0800-787-57 FRANCE: 0800-917-599 GERMANY: 0800-1800-563 SPAIN: 900-973-195 ITALY: 800-781-883 All Other Countries - Toll 31-53-482-9779...
