Defining Via Connect² Presentation & Collaboration Device - Kramer VIA Connect2 User Manual

Defining VIA Connect²
Presentation & Collaboration
Device
This section defines
# Feature
Video Toggle Connector
1
Micro SD Card Slot
2
Power Button with LED
3
USB 3.0 Connectors (x2)
4
USB 2.0 Connector
5
Lock Opening
6
HDMI™ OUT Connector
7
RJ-45 Connector
8
HDMI™ IN Connector
9
Power Connector
10
VIA Connect² – Defining VIA Connect² Presentation & Collaboration Device
VIA Connect².

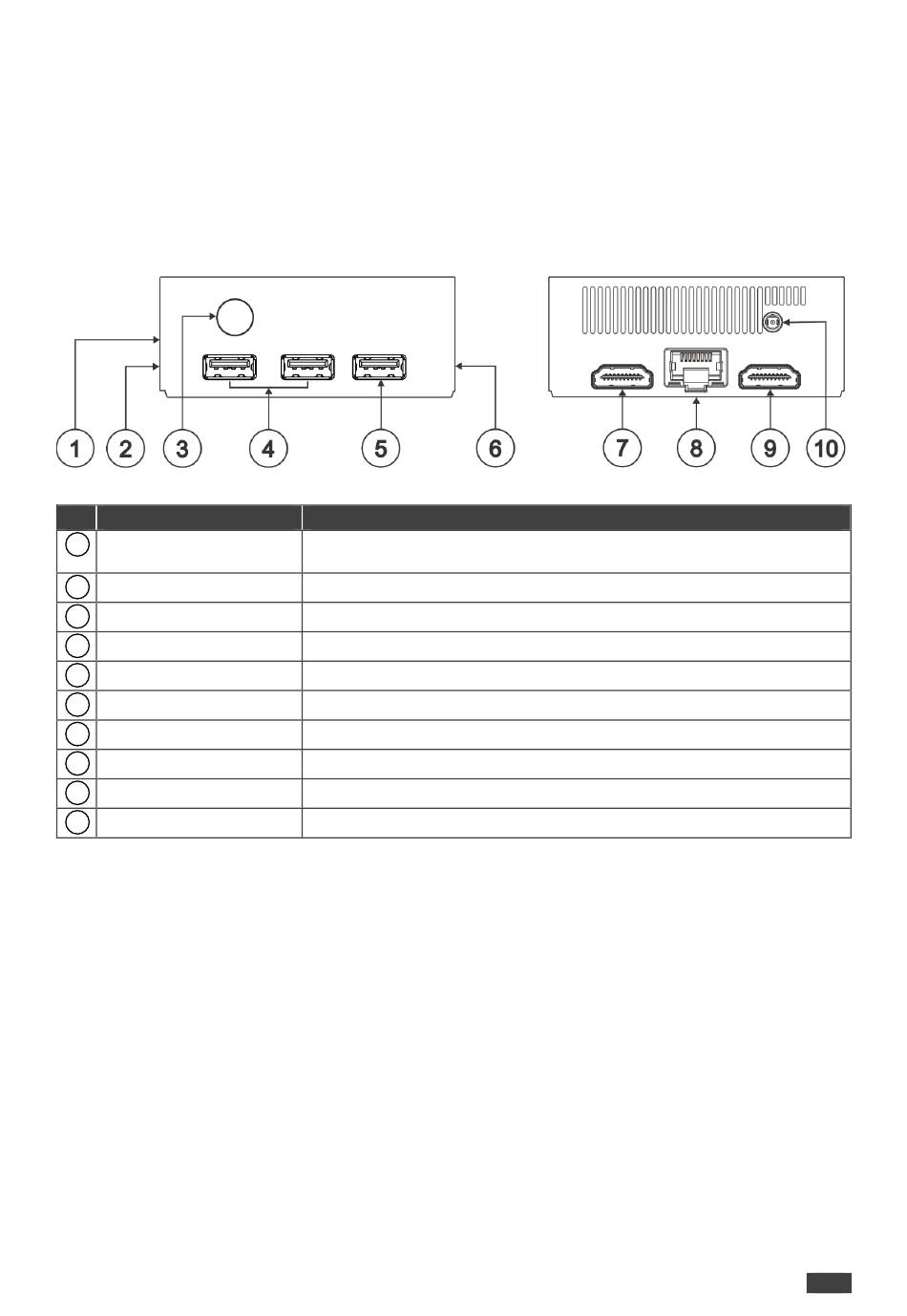

Figure 4: VIA Connect²
Function
Connect to video toggle cable for toggling between VIA input and
HDMI™ input.
Not in use.
Press to power ON or turn OFF the device.
Connect to USB devices, for example, a keyboard and a mouse.
Connect to a USB device, for example, a keyboard or mouse.
Connect to a security locking cable.
Connect to an HDMI sink.
Connect to a LAN (default mode).
Connect to an HDMI source.
Connect to the 12V DC power supply.
