EVALUATION BOARD SETUP PROCEDURE

SOFTWARE INSTALLATION

Use the following steps to install the software.
1. Install the Analog Devices
double-clicking ADF4150HV Setup.msi.
If you are using Windows XP, follow the instructions in the
Windows XP Software Installation Guide section (see
Figure 5 to Figure 9).
If you are using Windows Vista or Windows 7, follow the
instructions in the Windows Vista and Windows 7 Software
Installation Guide section (see Figure 10 to Figure 14).
Note that the software requires Microsoft Windows
Installer and Microsoft .NET Framework 3.5 (or higher).
The installer connects to the Internet and downloads
Microsoft .NET Framework automatically. Alternatively,
before running the ADF4150HV Setup.msi, both the
installer and .NET Framework can be installed from the
CD provided.
2. Connect your board by USB.
If you are using Windows XP, follow the steps in the
Windows XP Driver Installation Guide section (see Figure 15
to Figure 18).
On Windows Vista or Windows 7, the drivers install
automatically.
Windows XP Software Installation Guide

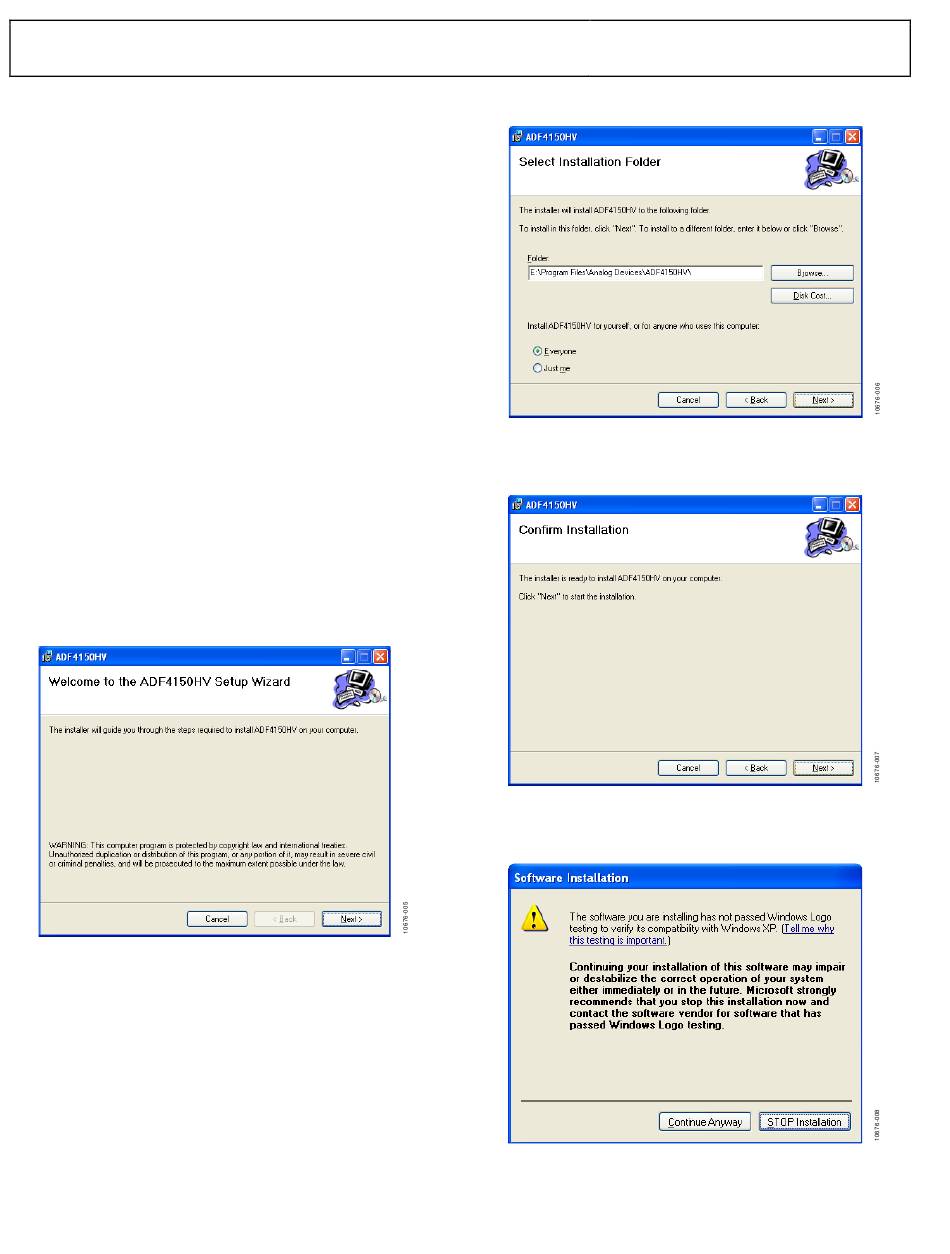

Figure 5. Windows XP ADF4150HV
1. Click Next.
ADF4150HV software by
Software Installation, Setup Wizard
Figure 6. Windows XP
2. Choose an installation directory and click Next.
Figure 7. Windows XP
3. Click Next.
Figure 8. Windows XP
4. Click Continue Anyway.
Rev. 0 | Page 6 of 24
Evaluation Board User Guide
ADF4150HV Software Installation, Select Installation
Folder
ADF4150HV Software Installation, Confirm
Installation
ADF4150HV Software Installation, Logo Testing
